Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000419226 ( CS60 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

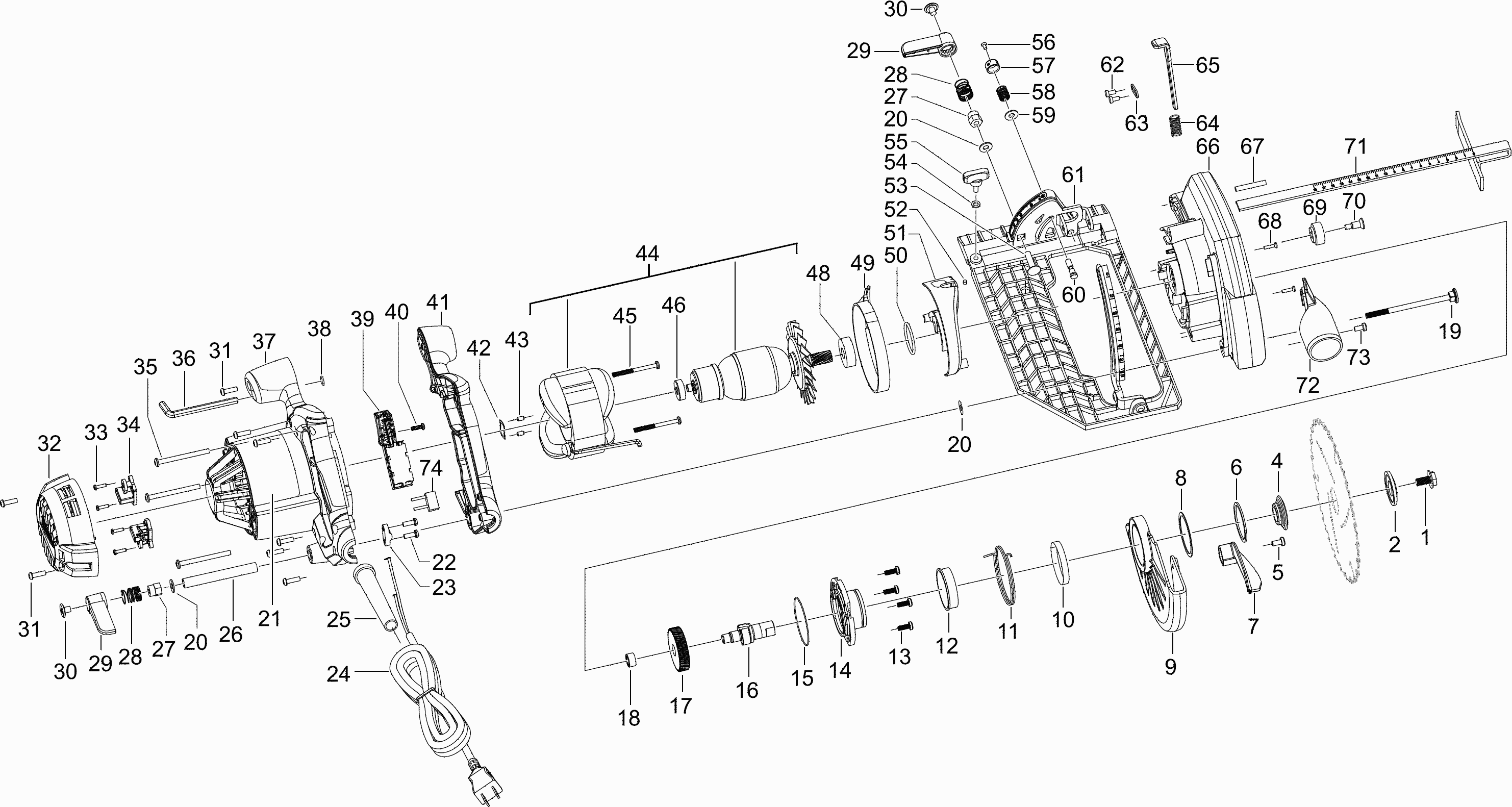

Tekeningen van de Milwaukee 4000419226 ( CS60 )
Onderdelen lijst van de Milwaukee 4000419226 ( CS60 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0001 | 660988001 | 1.80 | 2.18 | |
| FLANGE | ||||
| 0002 | 692256001 | 4.49 | 5.43 | |
| FLANGE | ||||
| 0004 | 692254001 | 5.40 | 6.53 | |
| SCREW | ||||
| 0005 | 660151005 | 1.80 | 2.18 | |
| RETAINING RING | ||||
| 0006 | 680778003 | 4.49 | 5.43 | |
| LEVER | ||||
| 0007 | 519250002 | 1.80 | 2.18 | |
| WASHER | ||||
| 0008 | 631876003 | 1.80 | 2.18 | |
| BUSH | ||||
| 0009 | 641519004 | 20.59 | 24.91 | |
| BUSH | ||||
| 0010 | 632371003 | 4.49 | 5.43 | |
| SPRING | ||||
| 0011 | 692038003 | 4.49 | 5.43 | |
| Niet meer leverbaar | ||||
| 0012 | 514310001 | |||
| SCREW | ||||
| 0013 | 660997001 | 1.80 | 2.18 | |
| GUARD | ||||
| 0014 | 516867002 | 14.40 | 17.42 | |
| O-RING | ||||
| 0015 | 561489001 | 1.80 | 2.18 | |
| SPINDLE | ||||
| 0016 | 620536001 | 12.37 | 14.97 | |
| PINION | ||||
| 0017 | 610641001 | 16.36 | 19.80 | |
| NEEDLE BEARING | ||||
| 0018 | 671774002 | 1.80 | 2.18 | |
| BOLT | ||||
| 0019 | 660842001 | 1.80 | 2.18 | |
| WASHER | ||||
| 0020 | 691142001 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0021 | 4931448483 | |||
| SCREW | ||||
| 0022 | 660024045 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 0023 | 590501001 | |||
| CONNECTION CABLE | ||||
| 0024 | 201531004 | 38.02 | 46.00 | |
| CABLE ENTRY SLEEVE | ||||
| 0025 | 561487001 | 1.80 | 2.18 | |
| SPINDLE | ||||
| 0026 | 631686001 | 1.80 | 2.18 | |
| NUT | ||||
| 0027 | 660841002 | 1.80 | 2.18 | |
| PRESSURE SPRING | ||||
| 0028 | 681035001 | 4.49 | 5.43 | |
| LEVER | ||||
| 0029 | 513965004 | 1.80 | 2.18 | |
| SCREW | ||||
| 0030 | 660993002 | 1.80 | 2.18 | |
| SCREW | ||||
| 0031 | 660982001 | 1.80 | 2.18 | |
| COVER | ||||
| 0032 | 351257001 | 6.31 | 7.64 | |
| SCREW | ||||
| 0033 | 660203060 | 1.80 | 2.18 | |
| CARBON BRUSH | ||||
| 0034 | 290365001 | 10.80 | 13.07 | |
| Niet meer leverbaar | ||||
| 0035 | 661153002 | |||
| SPANNER | ||||
| 0036 | 681231001 | 4.49 | 5.43 | |
| MOTOR HOUSING | ||||
| 0037 | 521255001 | 25.34 | 30.66 | |
| O-RING | ||||
| 0038 | 562326001 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0039 | 760405005 | 17.11 | 20.70 | |
| Niet meer leverbaar | ||||
| 0040 | 660208037 | |||
| HOUSING | ||||
| 0041 | 521256001 | 9.91 | 11.99 | |
| SPRING | ||||
| 0042 | 681108001 | 1.80 | 2.18 | |
| PLUG | ||||
| 0043 | 550339001 | 5.40 | 6.53 | |
| MOTOR ASSEMBLY | ||||
| 0044 | 4931448524 | 175.82 | 212.74 | |
| Niet meer leverbaar | ||||
| 0045 | 660986001 | |||
| BALL BEARING | ||||
| 0046 | 681100001 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0048 | 4931435723 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0048 | 681102001 | 8.64 | 10.45 | |
| COVER | ||||
| 0049 | 516847002 | 3.60 | 4.36 | |
| O-RING | ||||
| 0050 | 561488001 | 1.80 | 2.18 | |
| SCREW | ||||
| 0052 | 660066005 | 1.80 | 2.18 | |
| BOLT | ||||
| 0053 | 660858003 | 4.49 | 5.43 | |
| SPRING WASHER | ||||
| 0054 | 671237002 | 1.80 | 2.18 | |
| LOCKING BOLT | ||||
| 0055 | 511129004 | 5.40 | 6.53 | |
| SCREW | ||||
| 0056 | 661197002 | 1.80 | 2.18 | |
| COVER | ||||
| 0057 | 340061002 | 4.49 | 5.43 | |
| SPRING | ||||
| 0058 | 681036001 | 1.80 | 2.18 | |
| WASHER | ||||
| 0059 | 513967001 | 1.80 | 2.18 | |
| PIN | ||||
| 0060 | 631687001 | 4.49 | 5.43 | |
| BASE PLATE | ||||
| 0061 | 302431005 | 55.44 | 67.08 | |
| Niet meer leverbaar | ||||
| 0062 | 660208094 | |||
| SPRING | ||||
| 0064 | 692037001 | 1.80 | 2.18 | |
| SPINDLE LOCK | ||||
| 0065 | 633375001 | 4.49 | 5.43 | |
| GUARD CAP | ||||
| 0066 | 641280002 | 38.02 | 46.00 | |
| ROLL | ||||
| 0067 | 680980004 | 4.49 | 5.43 | |
| SCREW | ||||
| 0068 | 660204009 | 1.80 | 2.18 | |
| RUBBER STOP | ||||
| 0069 | 561984001 | 4.49 | 5.43 | |
| SCREW | ||||
| 0070 | 661245002 | 1.80 | 2.18 | |
| STOP | ||||
| 0071 | 633402001 | 10.80 | 13.07 | |
| ADAPTER | ||||
| 0072 | 519211001 | 4.49 | 5.43 | |
| SCREW | ||||
| 0073 | 660165011 | 1.80 | 2.18 | |
| CAPACITOR | ||||
| 0074 | 290244021 | 6.31 | 7.64 | |
