Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000384544 ( DCM2 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

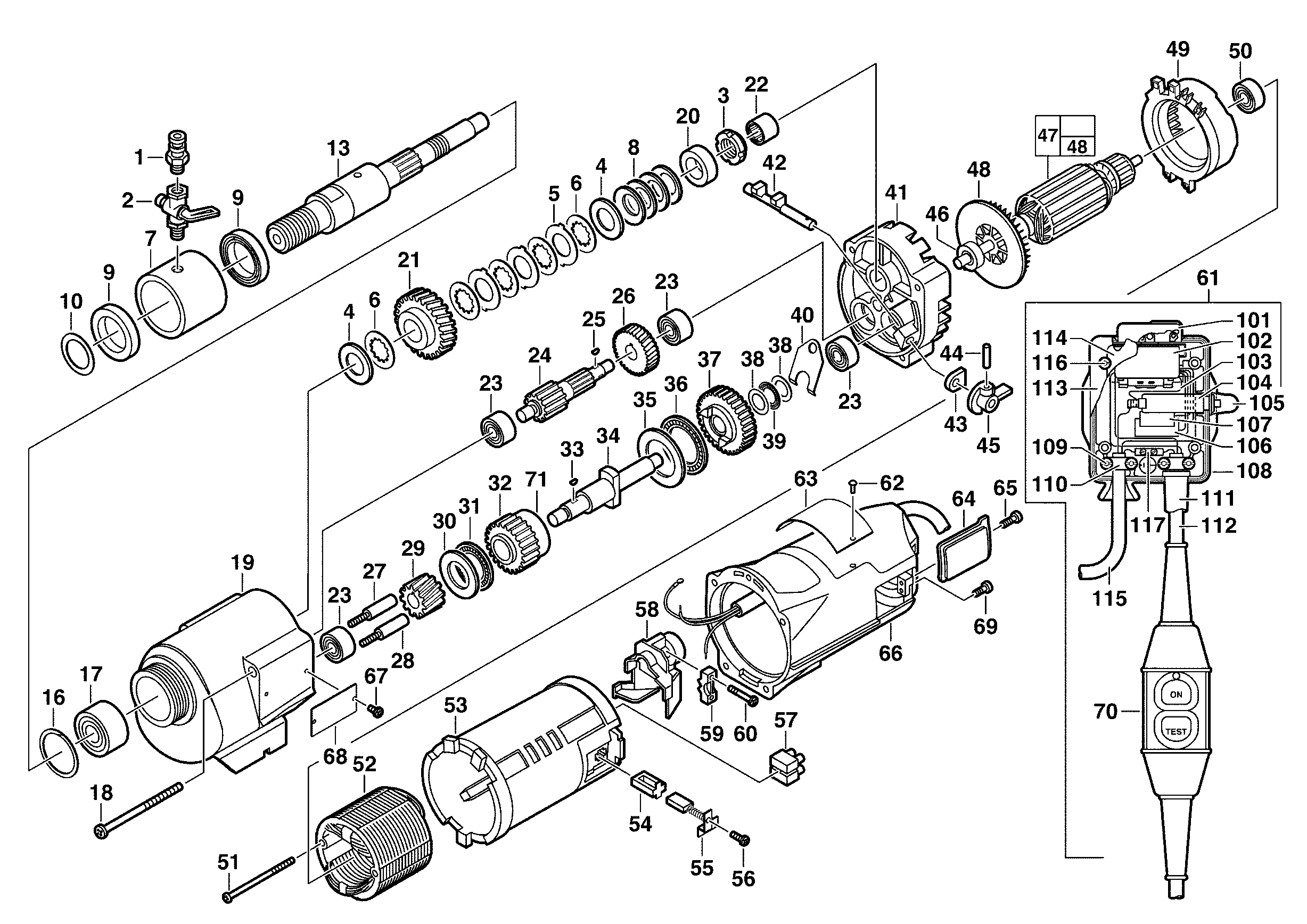

Tekeningen van de Milwaukee 4000384544 ( DCM2 )
Onderdelen lijst van de Milwaukee 4000384544 ( DCM2 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| FITTING | ||||
| 0001 | 42900210 | 45.94 | 55.59 | |
| VALVE | ||||
| 0002 | 45800060 | 42.77 | 51.75 | |
| MOER | ||||
| 0003 | 06571050 | 30.10 | 36.42 | |
| WASHER | ||||
| 0004 | 45881140 | 8.09 | 9.79 | |
| DISC | ||||
| 0005 | 43060160 | 5.40 | 6.53 | |
| DISC | ||||
| 0006 | 43060150 | 9.00 | 10.89 | |
| THREADED SLEEVE | ||||
| 0007 | 43760051 | 87.12 | 105.42 | |
| PRESSURE SPRING | ||||
| 0008 | 40502150 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0009 | 45060635 | 36.43 | 44.08 | |
| WASHER | ||||
| 0010 | 45888565 | 9.00 | 10.89 | |
| SPINDLE | ||||
| 0013 | 38506020 | 218.59 | 264.49 | |
| RING | ||||
| 0016 | 34803800 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0017 | 02202515 | 77.62 | 93.92 | |
| SCREW | ||||
| 0018 | 06829202 | 1.73 | 2.09 | |
| BODY | ||||
| 0019 | 28141870 | 302.54 | 366.07 | |
| SPACER | ||||
| 0020 | 45361520 | 14.40 | 17.42 | |
| NAALDLAGER | ||||
| 0022 | 02504830 | 13.82 | 16.72 | |
| Kogellager | ||||
| 0023 | 02041205 | 8.64 | 10.45 | |
| SHAFT | ||||
| 0024 | 36663751 | 68.11 | 82.41 | |
| KEY | ||||
| 0025 | 06421600 | 4.32 | 5.23 | |
| GEAR | ||||
| 0026 | 32401581 | 30.10 | 36.42 | |
| PRESSURE SPRING | ||||
| 0027 | 40506300 | 1.80 | 2.18 | |
| PLUNGER | ||||
| 0028 | 44700100 | 5.40 | 6.53 | |
| WASHER | ||||
| 0030 | 45880520 | 2.71 | 3.28 | |
| STUWLAGER | ||||
| 0031 | 02801800 | 8.64 | 10.45 | |
| GEAR | ||||
| 0032 | 32100060 | 22.18 | 26.84 | |
| KEY | ||||
| 0033 | 06422000 | 1.73 | 2.09 | |
| KEY | ||||
| 0033 | 6422000 | 1.00 | 1.21 | |
| KOPPELINGSAS | ||||
| 0034 | 36140061 | 99.79 | 120.75 | |
| WASHER | ||||
| 0035 | 45880530 | 3.78 | 4.57 | |
| STUWLAGER | ||||
| 0036 | 02805000 | 8.64 | 10.45 | |
| Dwarslager | ||||
| 0036 | 2805000 | 5.00 | 6.05 | |
| GEAR BOX | ||||
| 0037 | 32100051 | 117.22 | 141.84 | |
| WASHER | ||||
| 0038 | 45880510 | 3.60 | 4.36 | |
| STUWLAGER | ||||
| 0039 | 02801200 | 8.64 | 10.45 | |
| YOKE | ||||
| 0040 | 45980090 | 6.31 | 7.64 | |
| LAGERSCHILD | ||||
| 0041 | 14130210 | 104.54 | 126.49 | |
| SLIDING SWITCH | ||||
| 0042 | 30150272 | 25.34 | 30.66 | |
| GASKET | ||||
| 0043 | 43440580 | 4.49 | 5.43 | |
| TRIGGER | ||||
| 0045 | 25600056 | 6.31 | 7.64 | |
| GROOVED BALL BEAR, | ||||
| 0046 | 4931440556 | 4.49 | 5.43 | |
| ARMATURE ASSEMBLY | ||||
| 0047 | 16760325 | 164.74 | 199.34 | |
| FAN | ||||
| 0048 | 22840790 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0049 | 42140291 | 7.20 | 8.71 | |
| Kogellager | ||||
| 0050 | 02041041 | 8.64 | 10.45 | |
| SCREW | ||||
| 0051 | 06829152 | 3.46 | 4.19 | |
| ELECTRIC FIELD | ||||
| 0052 | 18740120 | 120.38 | 145.66 | |
| ISOLATION MODULE | ||||
| 0053 | 23161410 | 77.62 | 93.92 | |
| BRUSH HOLDER | ||||
| 0054 | 22200680 | 5.40 | 6.53 | |
| Carbon Brush | ||||
| 0055 | 22180706 | 23.76 | 28.75 | |
| AANSLUITING | ||||
| 0057 | 22560470 | 3.60 | 4.36 | |
| KLEM | ||||
| 0058 | 22380140 | 4.49 | 5.43 | |
| CLAMPING PIECE | ||||
| 0059 | 31170200 | 4.49 | 5.43 | |
| SCREW | ||||
| 0060 | 06827326 | 1.73 | 2.09 | |
| SCREW (2 benodigd) | ||||
| 0060 | 6827326 | 1.00 | 1.21 | |
| CONTROL DEVICE | ||||
| 0061 | 23370160 | 918.72 | 1111.65 | |
| NAGOEL | ||||
| 0062 | 06721720 | 4.32 | 5.23 | |
| RIVET (2 benodigd) | ||||
| 0062 | 6721720 | 2.50 | 3.02 | |
| BRUSH COVER | ||||
| 0064 | 22320350 | 3.60 | 4.36 | |
| SCREW | ||||
| 0065 | 06825316 | 1.73 | 2.09 | |
| HOUSING | ||||
| 0066 | 28506363 | 101.38 | 122.67 | |
| SCREW | ||||
| 0067 | 06825266 | 1.73 | 2.09 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0068 | 12983020 | |||
| SWITCH | ||||
| 0070 | 4931472579 | 17.42 | 21.08 | |
| SPACER | ||||
| 0071 | 45360225 | 9.00 | 10.89 | |
| SWITCH COVER | ||||
| 0101 | 22680200 | 17.42 | 21.08 | |
| SWITCH | ||||
| 0102 | 23661430 | 90.29 | 109.25 | |
| CABLE SET | ||||
| 0103 | 23949915 | 3.60 | 4.36 | |
| KABELHARNAS | ||||
| 0104 | 22360150 | 68.11 | 82.41 | |
| SWITCH COVER | ||||
| 0105 | 22680210 | 15.84 | 19.17 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0106 | 22330430 | |||
| OVERVOLT, PROT,DEV, | ||||
| 0107 | 22740053 | 10.80 | 13.07 | |
| SWITCH COVER | ||||
| 0108 | 22120200 | 44.35 | 53.66 | |
| CLAMPING PIECE | ||||
| 0110 | 31170155 | 4.49 | 5.43 | |
| CABLE CLAMP | ||||
| 0111 | 44760140 | 14.40 | 17.42 | |
| CABLE | ||||
| 0112 | 22644075 | 26.93 | 32.59 | |
| COVER | ||||
| 0113 | 22680190 | 23.76 | 28.75 | |
| CONNECTION CABLE | ||||
| 0115 | 22645050 | 23.48 | 28.41 | |
| SCREW | ||||
| 0116 | 06827326 | 1.73 | 2.09 | |
| SCREW (2 benodigd) | ||||
| 0116 | 6827326 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0117 | 22560480 | |||
