Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000428001 ( DD3-152 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

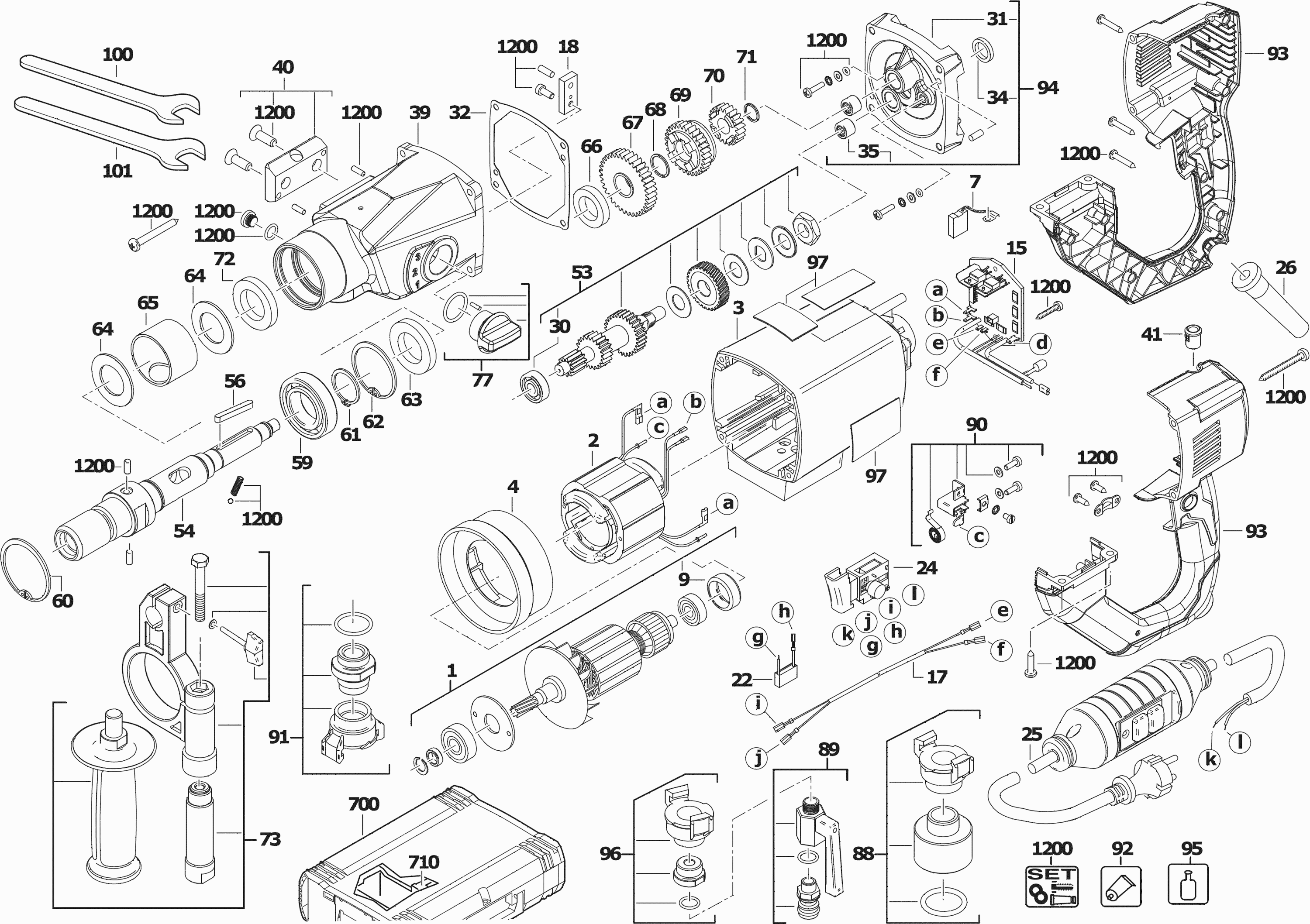

Tekeningen van de Milwaukee 4000428001 ( DD3-152 )
Onderdelen lijst van de Milwaukee 4000428001 ( DD3-152 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| ARMATURE | ||||
| 0001 | 4931428015 | 274.03 | 331.58 | |
| ELECTRIC FIELD | ||||
| 0002 | 4931428016 | 117.22 | 141.84 | |
| MOTOR HOUSING | ||||
| 0003 | 4931428017 | 39.60 | 47.92 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0004 | 4931428018 | |||
| CARBON BRUSH SET | ||||
| 0007 | 4931428019 | 28.51 | 34.50 | |
| BEARING COVER | ||||
| 0009 | 4931428036 | 9.00 | 10.89 | |
| PRINTED CIRCUIT | ||||
| 0015 | 4931428038 | 177.41 | 214.67 | |
| CABLE SET | ||||
| 0017 | 4931428039 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0018 | 4931428040 | 19.01 | 23.00 | |
| INTERFERENCE SUPPR, | ||||
| 0022 | 4931428041 | 9.91 | 11.99 | |
| SWITCH | ||||
| 0024 | 4931428042 | 45.94 | 55.59 | |
| CONNECTION CABLE | ||||
| 0025 | 4931428043 | 186.91 | 226.16 | |
| PROTECTING COVER | ||||
| 0026 | 4931428044 | 5.40 | 6.53 | |
| GROOVED BALL BEAR, | ||||
| 0030 | 4931428045 | 11.69 | 14.14 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0031 | 4931428046 | |||
| SEAL | ||||
| 0032 | 4931428047 | 6.31 | 7.64 | |
| SEAL RING | ||||
| 0034 | 4931428048 | 11.69 | 14.14 | |
| NEEDLE BUSH | ||||
| 0035 | 4931428049 | 10.80 | 13.07 | |
| GEAR BOX HOUSING | ||||
| 0039 | 4931428553 | 123.55 | 149.50 | |
| Supporting plate with 2 hex, sock, screw | ||||
| 0040 | 4931428554 | 39.60 | 47.92 | |
| HOLDING DEVICE | ||||
| 0041 | 4931428555 | 5.40 | 6.53 | |
| CLUTCH | ||||
| 0053 | 4931428556 | 253.44 | 306.66 | |
| SPINDLE | ||||
| 0054 | 4931428557 | 148.90 | 180.17 | |
| PARALLEL KEY | ||||
| 0056 | 4931428558 | 3.60 | 4.36 | |
| GROOVED BALL BEAR, | ||||
| 0059 | 4931428559 | 42.77 | 51.75 | |
| PROTECTION WASHER | ||||
| 0060 | 4931428560 | 3.60 | 4.36 | |
| PROTECTION WASHER | ||||
| 0061 | 4931428561 | 1.90 | 2.30 | |
| PROTECTION WASHER | ||||
| 0062 | 4931428562 | 1.90 | 2.30 | |
| SEAL RING | ||||
| 0063 | 4931428563 | 20.59 | 24.91 | |
| STRIPPER | ||||
| 0064 | 4931428564 | 10.80 | 13.07 | |
| SPACER | ||||
| 0065 | 4931428565 | 16.20 | 19.60 | |
| SEAL RING | ||||
| 0066 | 4931428566 | 17.11 | 20.70 | |
| WHEEL | ||||
| 0067 | 4931428567 | 80.78 | 97.74 | |
| SPRING RING | ||||
| 0068 | 4931428568 | 5.40 | 6.53 | |
| JUMPER RING | ||||
| 0069 | 4931428569 | 96.62 | 116.91 | |
| WHEEL | ||||
| 0070 | 4931428570 | 87.12 | 105.42 | |
| SPRING RING | ||||
| 0071 | 4931428571 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0072 | 4931428572 | 20.59 | 24.91 | |
| HANDLE | ||||
| 0073 | 4931428573 | 88.70 | 107.33 | |
| SWITCH LEVER | ||||
| 0077 | 4931428574 | 42.77 | 51.75 | |
| ADAPTOR | ||||
| 0088 | 4931428578 | 58.61 | 70.92 | |
| VALVE | ||||
| 0089 | 4931428579 | 36.43 | 44.08 | |
| BRUSH HOLDER PAIR | ||||
| 0090 | 4931428580 | 28.51 | 34.50 | |
| CONNECTOR | ||||
| 0091 | 4931428581 | 38.02 | 46.00 | |
| GREASE DEPOSIT | ||||
| 0092 | 4931428582 | 33.26 | 40.24 | |
| HANDLE SHELLS | ||||
| 0093 | 4931428583 | 45.94 | 55.59 | |
| GEAR ENDPLATE | ||||
| 0094 | 4931428584 | 114.05 | 138.00 | |
| GEAR OIL 1L | ||||
| 0095 | 4931428585 | 104.54 | 126.49 | |
| CONNECTION SLEEVE | ||||
| 0096 | 4931428586 | 23.76 | 28.75 | |
| Spansleutel open 32 mm. Voor . | ||||
| 0100 | 4931428009 | 14.90 | 18.03 | |
| Spansleutel open 41 mm. Voor | ||||
| 0101 | 4931428010 | 32.89 | 39.80 | |
| CARRYING CASE | ||||
| 0700 | 4931402576 | 99.79 | 120.75 | |
| INSERT | ||||
| 0710 | 4931428005 | 57.02 | 68.99 | |
| BOLT SET | ||||
| 1200 | 4931428587 | 38.02 | 46.00 | |
