Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000419018 ( HD28CS-0 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

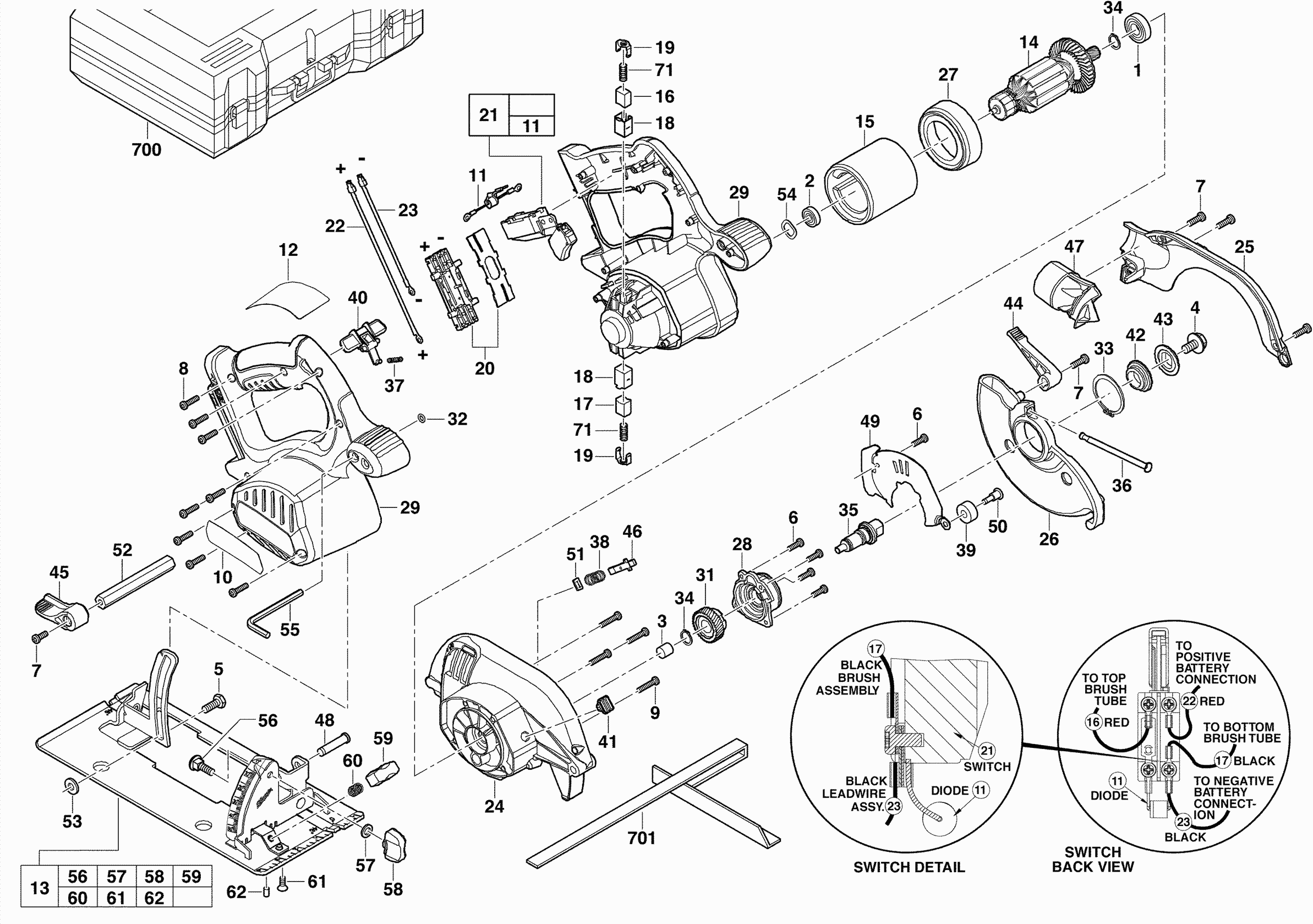

Tekeningen van de Milwaukee 4000419018 ( HD28CS-0 )
Onderdelen lijst van de Milwaukee 4000419018 ( HD28CS-0 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| M28 BX (28 V / 3,0 Ah Red Li-Ion) 85076000 | ||||
| 0001 | 4932352732 | 193.00 | 233.53 | |
| BALL BEARING | ||||
| 0001 | 02041212 | 16.43 | 19.88 | |
| BALL BEARING | ||||
| 0001 | 2041212 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0002 | 02045130 | 18.07 | 21.86 | |
| BALL BEARING | ||||
| 0002 | 2045130 | 5.00 | 6.05 | |
| NAALDLAGER | ||||
| 0003 | 02501640 | 16.43 | 19.88 | |
| NEEDLE BEARING | ||||
| 0003 | 2501640 | 5.00 | 6.05 | |
| Screw | ||||
| 0004 | 06751010 | 4.32 | 5.23 | |
| SCREW | ||||
| 0005 | 06755860 | 4.32 | 5.23 | |
| SCREW | ||||
| 0006 | 06825285 | 3.60 | 4.36 | |
| SCREW | ||||
| 0006 | 6825285 | 1.00 | 1.21 | |
| SCREW TORX SCREW | ||||
| 0007 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (13 benodigd) | ||||
| 0007 | 6825314 | 1.00 | 1.21 | |
| SCREW | ||||
| 0008 | 06827470 | 6.22 | 7.53 | |
| SCREW | ||||
| 0008 | 6827470 | 1.00 | 1.21 | |
| SCREW | ||||
| 0009 | 06827475 | 5.18 | 6.27 | |
| SCREW | ||||
| 0009 | 6827475 | 1.00 | 1.21 | |
| ADHESIVE LABEL | ||||
| 0010 | 940064035 | 1.90 | 2.30 | |
| WEERSTAND | ||||
| 0011 | 22740510 | 3.78 | 4.57 | |
| NAME PLATE | ||||
| 0012 | 12201480 | 1.90 | 2.30 | |
| null | ||||
| 0013 | 14740315 | 49.10 | 59.41 | |
| MOTOR ASSEMBLY | ||||
| 0014 | 4931453367 | 96.62 | 116.91 | |
| MOTOR ASSEMBLY | ||||
| 0015 | 4931453367 | 96.62 | 116.91 | |
| Carbon Brush | ||||
| 0016 | 22181240 | 10.80 | 13.07 | |
| Carbon Brush | ||||
| 0017 | 22181245 | 10.80 | 13.07 | |
| Brush Holder | ||||
| 0018 | 22200425 | 1.90 | 2.30 | |
| Spring | ||||
| 0019 | 22320420 | 5.40 | 6.53 | |
| CONNECTOR | ||||
| 0020 | 22560975 | 11.69 | 14.14 | |
| SCHAKELAAR AAN-UIT | ||||
| 0021 | 270017215 | 33.26 | 40.24 | |
| RELAY CABLE | ||||
| 0022 | 23944290 | 17.42 | 21.08 | |
| RELAY CABLE | ||||
| 0023 | 23944295 | 5.40 | 6.53 | |
| GEAR BOX HOUSING | ||||
| 0024 | 641187006 | 41.18 | 49.83 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0025 | 28201360 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 0026 | 641189006 | |||
| AIR DEFLECTOR RING | ||||
| 0027 | 31050350 | 5.40 | 6.53 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0028 | 31150601 | |||
| HANDLE COMPL, | ||||
| 0029 | 201415001 | 50.69 | 61.33 | |
| GEAR | ||||
| 0031 | 32751310 | 23.76 | 28.75 | |
| O-RING | ||||
| 0032 | 34404480 | 1.90 | 2.30 | |
| THRUST COLLAR | ||||
| 0033 | 34600860 | 1.90 | 2.30 | |
| RING | ||||
| 0034 | 34600920 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0035 | 38501160 | 12.60 | 15.25 | |
| SPRING | ||||
| 0036 | 40500045 | 1.80 | 2.18 | |
| SPRING | ||||
| 0037 | 40500350 | 1.80 | 2.18 | |
| PRESSURE SPRING | ||||
| 0038 | 40508040 | 4.49 | 5.43 | |
| GUARD | ||||
| 0039 | 42380222 | 1.90 | 2.30 | |
| SWITCH | ||||
| 0040 | 42421020 | 1.80 | 2.18 | |
| PUSH-BUTTON | ||||
| 0041 | 42421030 | 5.68 | 6.87 | |
| Flange | ||||
| 0042 | 43340790 | 2.71 | 3.28 | |
| Flange | ||||
| 0043 | 43340795 | 5.40 | 6.53 | |
| SPINDLE LOCK | ||||
| 0046 | 44200650 | 1.90 | 2.30 | |
| DUST SEAL | ||||
| 0047 | 31760100 | 5.40 | 6.53 | |
| PIN | ||||
| 0048 | 44600740 | 1.80 | 2.18 | |
| LATCH PLATE | ||||
| 0049 | 44660560 | 5.40 | 6.53 | |
| SCREW | ||||
| 0050 | 45040485 | 1.80 | 2.18 | |
| FELT PACKING | ||||
| 0051 | 45060720 | 5.40 | 6.53 | |
| SHAFT | ||||
| 0052 | 45080395 | 3.60 | 4.36 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0053 | 45881545 | |||
| WASHER | ||||
| 0054 | 45885615 | 1.80 | 2.18 | |
| Inbussleutel zeskant | ||||
| 0055 | 49960080 | 4.20 | 5.08 | |
| WASHER | ||||
| 0057 | 45881560 | 1.80 | 2.18 | |
| KNOB | ||||
| 0058 | 43980730 | 5.40 | 6.53 | |
| KNOB | ||||
| 0059 | 43980720 | 1.80 | 2.18 | |
| SPRING | ||||
| 0060 | 40500650 | 1.80 | 2.18 | |
| Spring | ||||
| 0071 | 200550005 | 3.60 | 4.36 | |
| CARRYING CASE | ||||
| 0700 | 48551490 | 55.44 | 67.08 | |
| CARRYING CASE | ||||
| 0700 | 201552002 | 40.52 | 49.03 | |
| ACHTERKWADRAAT | ||||
| 0701 | 301768001 | 14.40 | 17.42 | |
