Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000455501 ( K1000SIN2 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

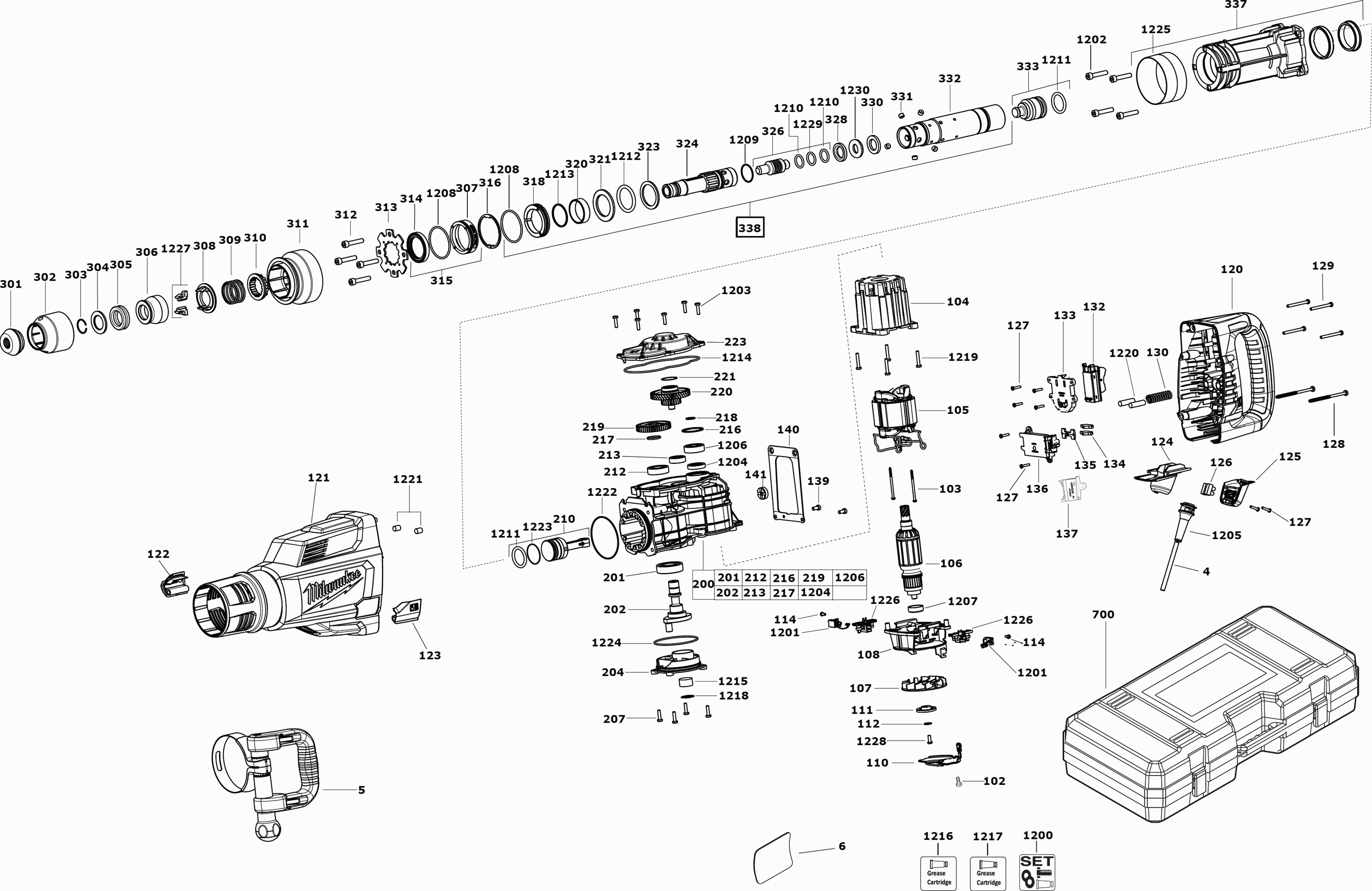

Tekeningen van de Milwaukee 4000455501 ( K1000SIN2 )
Onderdelen lijst van de Milwaukee 4000455501 ( K1000SIN2 )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
CONNECTION CABLE | ||||
0004 | 4931624696 | 23.76 | 28.75 | |
SPEED HANDLE | ||||
0005 | 4931455046 | 104.54 | 126.49 | |
RATING PLATE | ||||
0006 | 4931463107 | 1.80 | 2.18 | |
SCREW | ||||
0102 | 4931624537 | 1.80 | 2.18 | |
SCREW | ||||
0103 | 4931339996 | 1.80 | 2.18 | |
HOUSING | ||||
0104 | 4931455585 | 16.20 | 19.60 | |
ELECTRIC FIELD | ||||
0105 | 4931455950 | 83.95 | 101.58 | |
ARMATURE | ||||
0106 | 4931455031 | 137.81 | 166.75 | |
FAN | ||||
0107 | 4931455525 | 12.60 | 15.25 | |
BRUSH MODULE | ||||
0108 | 4931455064 | 12.60 | 15.25 | |
HOLDER | ||||
0110 | 4931463938 | 1.80 | 2.18 | |
MAGNET.DISC FASTEN. | ||||
0111 | 4931487401 | 9.60 | 11.62 | |
MAGNET,DISC FASTEN, | ||||
0111 | 4931455579 | 4.49 | 5.43 | |
WASHER | ||||
0112 | 4931455939 | 1.80 | 2.18 | |
SCREW | ||||
0114 | 4931624538 | 1.80 | 2.18 | |
HANDLE | ||||
0120 | 4931455576 | 96.62 | 116.91 | |
HOUSING SET ASSY | ||||
0121 | 4931455509 | 129.89 | 157.17 | |
SERVICING LID | ||||
0122 | 4931455959 | 4.49 | 5.43 | |
SERVICING LID | ||||
0123 | 4931455958 | 4.49 | 5.43 | |
GUIDE PIECE | ||||
0124 | 4931455934 | 7.20 | 8.71 | |
HOUSING COVER | ||||
0125 | 4931455997 | 5.40 | 6.53 | |
TERMINAL STRIP | ||||
0126 | 4931463903 | 16.20 | 19.60 | |
SCREW | ||||
0127 | 4931618253 | 1.80 | 2.18 | |
SCREW | ||||
0128 | 4931455992 | 1.80 | 2.18 | |
SCREW | ||||
0129 | 4931455929 | 1.80 | 2.18 | |
PRESSURE SPRING | ||||
0130 | 4931463951 | 11.40 | 13.79 | |
SWITCH | ||||
0132 | 4931455009 | 39.60 | 47.92 | |
SWITCH RETAINER | ||||
0133 | 4931455526 | 5.40 | 6.53 | |
LIGHT PIPE | ||||
0134 | 4931398114 | 5.40 | 6.53 | |
HOLDER | ||||
0135 | 4931455937 | 1.80 | 2.18 | |
ELECTRONIC | ||||
0136 | 4931455044 | 91.87 | 111.16 | |
ELECTRONIC | ||||
0136 | 4931487422 | 77.00 | 93.17 | |
SLIDING SWITCH | ||||
0137 | 4931476531 | 4.80 | 5.81 | |
SCREW | ||||
0139 | 4931455938 | 1.80 | 2.18 | |
SPRING | ||||
0140 | 4931455512 | 14.40 | 17.42 | |
SPRING | ||||
0141 | 4931455587 | 3.60 | 4.36 | |
GEAR BOX ASSY | ||||
0200 | 4931455942 | 261.36 | 316.25 | |
GROOV, BALL BEARING | ||||
0201 | 4931455896 | 16.20 | 19.60 | |
CRANK ASSEMBLY | ||||
0202 | 4931455039 | 107.71 | 130.33 | |
COVER | ||||
0204 | 4931455081 | 10.80 | 13.07 | |
SCREW | ||||
0207 | 4931624541 | 1.80 | 2.18 | |
PISTON | ||||
0210 | 4931455038 | 26.93 | 32.59 | |
GROOV, BALL BEARING | ||||
0212 | 4931455897 | 12.60 | 15.25 | |
GROOV, BALL BEARING | ||||
0213 | 4931455895 | 7.20 | 8.71 | |
PROTECTION WASHER | ||||
0216 | 4931455928 | 1.80 | 2.18 | |
SPACER | ||||
0217 | 4931455951 | 1.80 | 2.18 | |
RING D471 17X1 | ||||
0218 | 4931605204 | 1.80 | 2.18 | |
SPROCKET | ||||
0219 | 4931455522 | 28.51 | 34.50 | |
GEAR | ||||
0220 | 4931455530 | 99.79 | 120.75 | |
DISC 31,7X26,5X0,4 | ||||
0221 | 4931881678 | 1.80 | 2.18 | |
GEAR BOX COVER | ||||
0223 | 4931455892 | 31.68 | 38.33 | |
END COVER CAP | ||||
0301 | 9170350243 | 5.40 | 6.53 | |
SLEEVE | ||||
0302 | 4931463983 | 1.61 | 1.95 | |
Spring Ring | ||||
0303 | 9170319040 | 1.80 | 2.18 | |
DAMPER | ||||
0304 | 4931409820 | 12.65 | 15.31 | |
DAMPING RING | ||||
0305 | 4931463968 | 9.00 | 10.89 | |
INTERLOCK SLEAVE | ||||
0306 | 4931463978 | 24.20 | 29.28 | |
SEAL RETAINER | ||||
0307 | 4931455022 | 3.60 | 4.36 | |
INTERLOCK PLATE | ||||
0308 | 4931375770 | 22.18 | 26.84 | |
PRESSURE SPRING | ||||
0309 | 4931463917 | 5.40 | 6.53 | |
SET COLLAR | ||||
0310 | 4931455021 | 9.91 | 11.99 | |
INTERLOCK SLEAVE | ||||
0311 | 4931455020 | 12.60 | 15.25 | |
SCREW | ||||
0312 | 4931624234 | 1.80 | 2.18 | |
LOCKING PLATE | ||||
0313 | 4931455023 | 7.20 | 8.71 | |
SEAL RING | ||||
0314 | 4931468729 | 39.60 | 47.92 | |
SEAL RETAINER | ||||
0315 | 4931455025 | 16.20 | 19.60 | |
RETAINING RING | ||||
0316 | 4931624235 | 5.40 | 6.53 | |
THRUST COLLAR | ||||
0318 | 4931375420 | 9.00 | 10.89 | |
BALL RACE | ||||
0320 | 4931463954 | 5.40 | 6.53 | |
WASHER | ||||
0321 | 4931468791 | 10.80 | 13.07 | |
ATTACHMENT RING | ||||
0323 | 4931375416 | 5.40 | 6.53 | |
DRIVER | ||||
0324 | 4931463977 | 30.54 | 36.95 | |
SNAP DIE | ||||
0326 | 4931455017 | 49.10 | 59.41 | |
THRUST COLLAR | ||||
0328 | 4931375411 | 9.00 | 10.89 | |
ATTACHMENT RING | ||||
0330 | 4931409791 | 6.31 | 7.64 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
0331 | 4931463952 | |||
SPINDLE SLEEVE | ||||
0332 | 4931463953 | 125.95 | 152.40 | |
PERCUSSION BODY | ||||
0333 | 4931455028 | 64.94 | 78.58 | |
GEAR BOX ASSY | ||||
0337 | 4931455945 | 139.39 | 168.66 | |
SPINDLE | ||||
0338 | 4931455535 | 473.62 | 573.08 | |
CARRYING CASE | ||||
0700 | 4931463094 | 213.84 | 258.75 | |
MAINTENANCE SET | ||||
1200 | 4931468437 | 175.82 | 212.74 | |
CARBON BRUSH SET | ||||
1201 | 4931468438 | 23.10 | 27.95 | |
SCREW | ||||
1202 | 4931624234 | 1.80 | 2.18 | |
SCREW | ||||
1203 | 4931624541 | 1.80 | 2.18 | |
PISTONRING | ||||
1204 | 4931455927 | 4.49 | 5.43 | |
PROTECTING COVER | ||||
1205 | 4931392174 | 5.40 | 6.53 | |
BALL BEARING | ||||
1206 | 4931455898 | 10.80 | 13.07 | |
RUBBER SLEEVE | ||||
1207 | 4931455066 | 1.80 | 2.18 | |
SEAL RING N874701 28X5 | ||||
1208 | 4931624156 | 5.40 | 6.53 | |
SEAL RING N874701 28X5 | ||||
1209 | 4931624161 | 5.40 | 6.53 | |
SEAL RING N874701 28X5 | ||||
1210 | 4931624155 | 5.40 | 6.53 | |
PISTONRING | ||||
1211 | 4931455510 | 5.40 | 6.53 | |
SEAL RING | ||||
1212 | 4931463914 | 10.80 | 13.07 | |
SPRING RING N874268 SW 20 | ||||
1213 | 4931624153 | 5.40 | 6.53 | |
SEAL | ||||
1214 | 4931455539 | 6.31 | 7.64 | |
FELT | ||||
1215 | 4931455541 | 1.80 | 2.18 | |
GREASE TUBE | ||||
1216 | 4931432782 | 14.40 | 17.42 | |
GREASE | ||||
1217 | 4931455865 | 23.76 | 28.75 | |
RING | ||||
1218 | 4931455961 | 1.80 | 2.18 | |
SCREW D 912 AM 5X50 | ||||
1219 | 4931624075 | 1.80 | 2.18 | |
DAMPING ELEMENT | ||||
1220 | 4931455542 | 1.80 | 2.18 | |
DAMPING ELEMENT | ||||
1221 | 4931455932 | 1.80 | 2.18 | |
PISTONRING | ||||
1222 | 4931468797 | 1.80 | 2.18 | |
SEAL RING | ||||
1223 | 4931455979 | 1.80 | 2.18 | |
PISTONRING | ||||
1224 | 4931455917 | 1.80 | 2.18 | |
GUIDE SLEEVE | ||||
1225 | 4931463940 | 5.40 | 6.53 | |
BRUSH HOLDER | ||||
1226 | 4931463990 | 140.98 | 170.59 | |
INTERLOCK ELEMENT (2 benodigd) | ||||
1227 | 4931468789 | 11.55 | 13.98 | |
INTERLOCK ELEMENT | ||||
1227 | 4931468793 | 10.80 | 13.07 | |
SCREW | ||||
1228 | 4931455991 | 4.49 | 5.43 | |
SEAL RING | ||||
1229 | 4931468790 | 7.20 | 8.71 | |
BACK-PRESSURE RING | ||||
1230 | 4931375412 | 5.40 | 6.53 |
