Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000407795 ( K500S )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

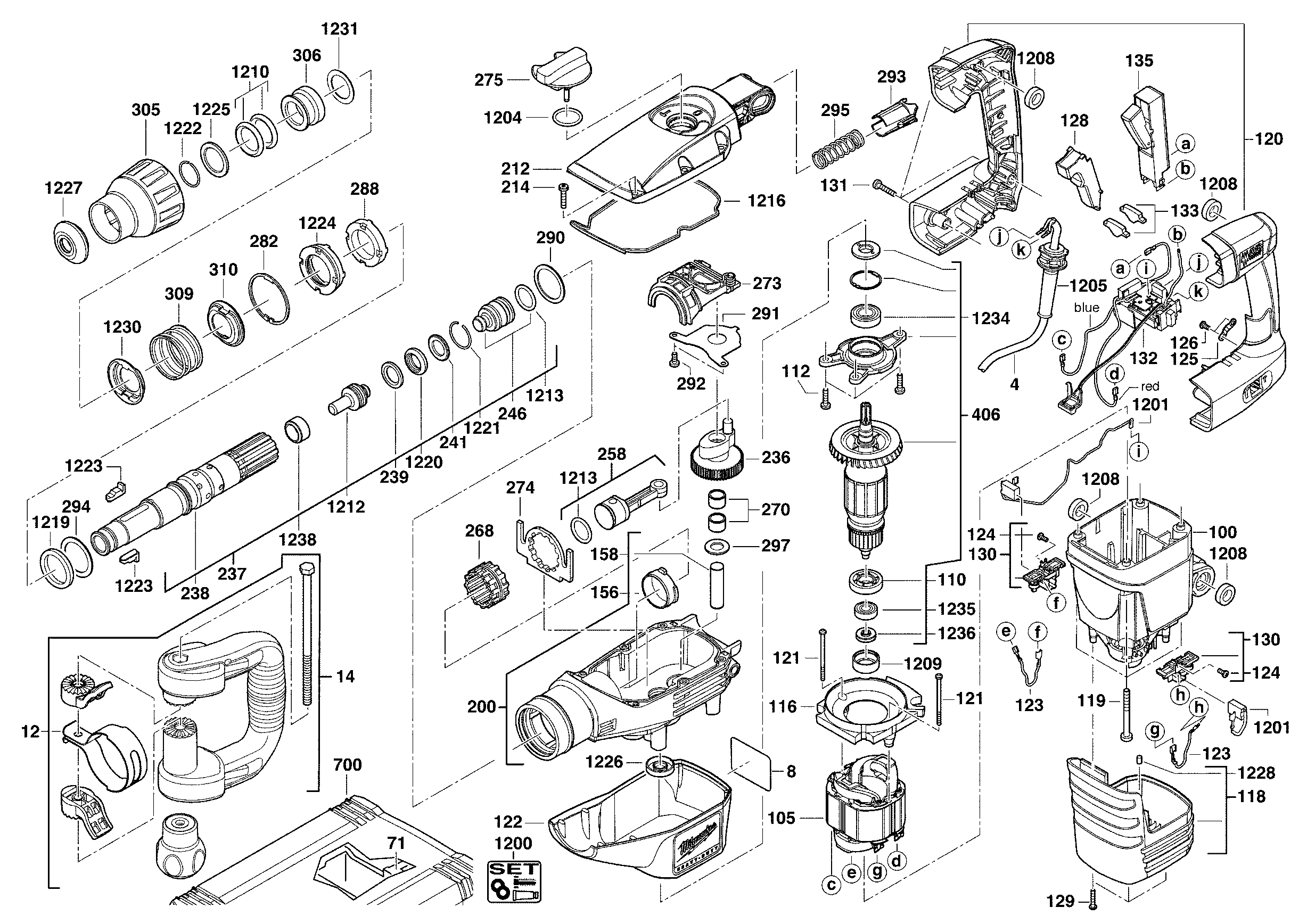

Tekeningen van de Milwaukee 4000407795 ( K500S )
Onderdelen lijst van de Milwaukee 4000407795 ( K500S )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
CONNECTION CABLE | ||||
0004 | 4931624590 | 38.02 | 46.00 | |
RATING PLATE | ||||
0008 | 4931407798 | 1.80 | 2.18 | |
STRIP-BAND | ||||
0012 | 4931398272 | 5.40 | 6.53 | |
HANDLE COMPL, | ||||
0014 | 4931398238 | 72.86 | 88.16 | |
MOTOR HOUSING | ||||
0100 | 4931398203 | 17.42 | 21.08 | |
ELECTRIC FIELD | ||||
0105 | 4931442748 | 39.60 | 47.92 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
0106 | 4931426279 | |||
FAN | ||||
0107 | 4931398185 | 4.49 | 5.43 | |
Dust Seal | ||||
0110 | 4931398508 | 5.40 | 6.53 | |
BEARING END PLATE | ||||
0111 | 4931426441 | 17.05 | 20.63 | |
SCREW | ||||
0112 | 4931624541 | 1.80 | 2.18 | |
LOCKING RING | ||||
0114 | 4931890311 | 5.40 | 6.53 | |
SEAL RING | ||||
0115 | 4931398198 | 9.91 | 11.99 | |
AIR DEFLECTOR RING | ||||
0116 | 4931405703 | 5.40 | 6.53 | |
MOTOR CAP | ||||
0118 | 4931398204 | 14.40 | 17.42 | |
SCREW D7500-1CE M6x60 T30 TAPT 2000 A2F | ||||
0119 | 4931624542 | 1.80 | 2.18 | |
PAIR HANDLE SHELLS | ||||
0120 | 4931398208 | 20.59 | 24.91 | |
SCREW | ||||
0121 | 4931339996 | 1.80 | 2.18 | |
GEAR BOX INSULATION | ||||
0122 | 4931398206 | 9.00 | 10.89 | |
WIRE | ||||
0123 | 4931624263 | 5.40 | 6.53 | |
SCREW | ||||
0124 | 4931624538 | 1.80 | 2.18 | |
CABLE COLLAR | ||||
0125 | 4931256500 | 5.40 | 6.53 | |
SCREW | ||||
0126 | 4931624538 | 1.80 | 2.18 | |
SLIDER | ||||
0128 | 4931398131 | 5.40 | 6.53 | |
Screw N874101-1 Shr H-k4x22 T15 | ||||
0129 | 4931624517 | 1.80 | 2.18 | |
BRUSH HOLDER | ||||
0130 | 4931381694 | 5.40 | 6.53 | |
Screw | ||||
0131 | 4931624504 | 1.80 | 2.18 | |
ELECTRONIC | ||||
0132 | 4931409088 | 72.86 | 88.16 | |
LIGHT PIPE | ||||
0133 | 4931398114 | 5.40 | 6.53 | |
Cable | ||||
0134 | 4931624681 | 5.40 | 6.53 | |
SWITCH | ||||
0135 | 4931375458 | 19.01 | 23.00 | |
BEARING | ||||
0156 | 4931398095 | 9.00 | 10.89 | |
BEARING BOLT | ||||
0158 | 4931398746 | 8.09 | 9.79 | |
GEAR BOX | ||||
0200 | 4931409532 | 128.30 | 155.24 | |
GEAR BOX COVER | ||||
0212 | 4931426453 | 45.94 | 55.59 | |
SCREW | ||||
0214 | 4931624555 | 1.80 | 2.18 | |
Crank Wheel | ||||
0236 | 4931409600 | 33.26 | 40.24 | |
SPINDLE SLEEVE | ||||
0238 | 4931417457 | 115.63 | 139.91 | |
BACK-PRESSURE RING | ||||
0239 | 4931398031 | 5.40 | 6.53 | |
CORE LIFTER RING | ||||
0241 | 4931398642 | 9.00 | 10.89 | |
PERC, BODY W SEAL | ||||
0246 | 4931455433 | 34.85 | 42.17 | |
Piston Compl. | ||||
0258 | 4931398747 | 12.60 | 15.25 | |
SET COLLAR | ||||
0268 | 4931398078 | 5.40 | 6.53 | |
Needle Bearing | ||||
0270 | 4931621847 | 9.00 | 10.89 | |
ADJUSTING PIECE | ||||
0273 | 4931398154 | 5.40 | 6.53 | |
LOCKING PLATE | ||||
0274 | 4931398075 | 5.40 | 6.53 | |
SWITCH | ||||
0275 | 4931398626 | 10.80 | 13.07 | |
Ring | ||||
0282 | 4931624479 | 5.40 | 6.53 | |
THRUST COLLAR | ||||
0288 | 4931398091 | 5.40 | 6.53 | |
Disc | ||||
0290 | 4931624499 | 5.40 | 6.53 | |
LATCH PLATE | ||||
0291 | 4931398658 | 5.40 | 6.53 | |
SCREW | ||||
0292 | 4931624236 | 1.80 | 2.18 | |
THRUST PIECE | ||||
0293 | 4931398097 | 4.49 | 5.43 | |
Disc | ||||
0294 | 4931624499 | 5.40 | 6.53 | |
PRESSURE SPRING | ||||
0295 | 4931398099 | 4.49 | 5.43 | |
DISC | ||||
0297 | 4931624535 | 5.40 | 6.53 | |
SLEEVE | ||||
0305 | 4931398216 | 9.00 | 10.89 | |
Locking Lever | ||||
0306 | 4931426248 | 5.40 | 6.53 | |
Pressure Spring | ||||
0309 | 4931398856 | 5.40 | 6.53 | |
Reparatieset | ||||
0310 | 4931426013 | 12.60 | 15.25 | |
ARMATURE ASSEMBLY | ||||
0406 | 4931449972 | 159.98 | 193.58 | |
REPAIR KIT | ||||
0420 | 4931442219 | 232.85 | 281.75 | |
CARRYING CASE | ||||
0700 | 4931455774 | 95.04 | 115.00 | |
MAINTENANCE SET | ||||
1200 | 4931407636 | 194.83 | 235.74 | |
CARBON BRUSH SET | ||||
1201 | 4931398132 | 15.84 | 19.17 | |
O-RING N874701 26X3 | ||||
1204 | 4931622166 | 1.80 | 2.18 | |
PROTECTING COVER | ||||
1205 | 4931393422 | 5.40 | 6.53 | |
DAMPING ELEMENT | ||||
1207 | 4931398748 | 5.40 | 6.53 | |
SEALING SLEEVE | ||||
1208 | 4931398101 | 5.40 | 6.53 | |
Rubber Sleeve | ||||
1209 | 4931398085 | 3.60 | 4.36 | |
Seal Ring | ||||
1210 | 4931624440 | 5.40 | 6.53 | |
SNAP DIE | ||||
1212 | 4931398578 | 33.26 | 40.24 | |
O-ring (fkm) | ||||
1213 | 4931398297 | 1.80 | 2.18 | |
SEAL | ||||
1216 | 4931398539 | 5.40 | 6.53 | |
DAMPING ELEMENT | ||||
1219 | 4931398105 | 5.40 | 6.53 | |
Core Lifter Ring | ||||
1220 | 4931398033 | 5.40 | 6.53 | |
RING | ||||
1221 | 4931398073 | 5.40 | 6.53 | |
Spring Ring | ||||
1222 | 9170319040 | 1.80 | 2.18 | |
Niet meer leverbaar, geen vervanging | ||||
1223 | 4931398068 | |||
SEAL RETAINER | ||||
1224 | 4931398034 | 16.20 | 19.60 | |
Interlock Disc | ||||
1225 | 4931398080 | 5.40 | 6.53 | |
SEAL RING | ||||
1226 | 4931624495 | 5.40 | 6.53 | |
Rubber Cap | ||||
1227 | 4931398064 | 6.31 | 7.64 | |
HOLDING-DOWN DEVICE | ||||
1228 | 4931409768 | 5.40 | 6.53 | |
Reparatieset | ||||
1230 | 4931426013 | 12.60 | 15.25 | |
Washer | ||||
1231 | 4931398298 | 1.80 | 2.18 | |
Grooved Ball Bear. | ||||
1234 | 4931398189 | 5.40 | 6.53 | |
Ball Bearing | ||||
1235 | 4931341741 | 9.00 | 10.89 | |
Magnetic Disc | ||||
1236 | 4931426570 | 5.40 | 6.53 | |
Stop Washer | ||||
1238 | 4931409781 | 17.11 | 20.70 |
