Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000443321 ( M18BH-0 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

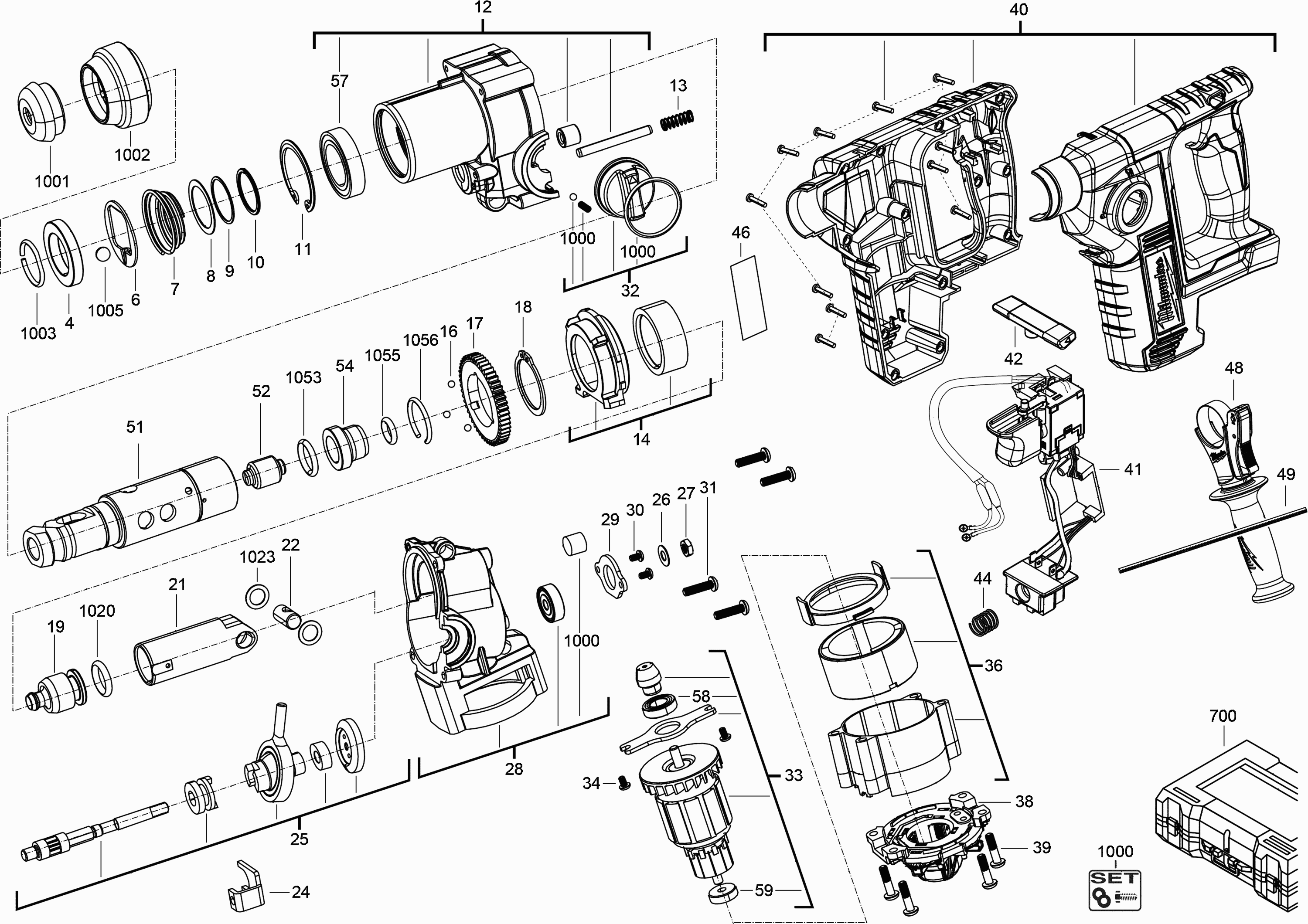

Tekeningen van de Milwaukee 4000443321 ( M18BH-0 )
Onderdelen lijst van de Milwaukee 4000443321 ( M18BH-0 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| M18 B4 (18 V / 4,0 Ah Red Li-Ion) 85076000 | ||||
| 0001 | 4932430063 | 103.00 | 124.63 | |
| LINER | ||||
| 0004 | 4931435460 | 5.40 | 6.53 | |
| PLATE | ||||
| 0006 | 4931435914 | 5.40 | 6.53 | |
| SPRING | ||||
| 0007 | 672799001 | 4.49 | 5.43 | |
| WASHER | ||||
| 0008 | 4931435463 | 1.80 | 2.18 | |
| WASHER | ||||
| 0009 | 4931435464 | 1.80 | 2.18 | |
| HOLDING RING | ||||
| 0010 | 4931435465 | 1.90 | 2.30 | |
| HOLDING RING | ||||
| 0011 | 4931435476 | 1.90 | 2.30 | |
| GEAR BOX | ||||
| 0012 | 4931435983 | 33.26 | 40.24 | |
| SPRING | ||||
| 0013 | 4931435479 | 5.40 | 6.53 | |
| BEARING END PLATE | ||||
| 0014 | 4931452580 | 12.60 | 15.25 | |
| BALL | ||||
| 0016 | 611405001 | 1.80 | 2.18 | |
| WORM GEAR WHEEL | ||||
| 0017 | 4931435984 | 16.20 | 19.60 | |
| HOLDING RING | ||||
| 0018 | 4931435473 | 1.90 | 2.30 | |
| IMPACT BOLT | ||||
| 0019 | 4931435481 | 14.40 | 17.42 | |
| PISTON | ||||
| 0021 | 4931435919 | 23.76 | 28.75 | |
| PIN | ||||
| 0022 | 4931435484 | 3.60 | 4.36 | |
| SWITCH LEVER | ||||
| 0024 | 4931435985 | 1.90 | 2.30 | |
| WOBBLE DRIVE | ||||
| 0025 | 4931435986 | 52.27 | 63.25 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0026 | 4931435987 | |||
| NUT | ||||
| 0027 | 4931446484 | 5.40 | 6.53 | |
| GEAR BOX ASSY | ||||
| 0028 | 4931435988 | 31.18 | 37.73 | |
| SHAFT | ||||
| 0029 | 4931435989 | 5.40 | 6.53 | |
| SCREW | ||||
| 0030 | 4931435990 | 1.80 | 2.18 | |
| SCREW | ||||
| 0031 | 4931435489 | 1.80 | 2.18 | |
| SWITCH BUTTON | ||||
| 0032 | 4931435490 | 5.40 | 6.53 | |
| MOTOR | ||||
| 0033 | 4931435991 | 42.77 | 51.75 | |
| SCREW | ||||
| 0034 | 4931435992 | 1.80 | 2.18 | |
| MOTOR ASSEMBLY | ||||
| 0036 | 4931435993 | 26.93 | 32.59 | |
| CARBON BRUSH SET | ||||
| 0038 | 4931435994 | 15.84 | 19.17 | |
| SCREW | ||||
| 0039 | 4931435995 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0040 | 4931435996 | 38.02 | 46.00 | |
| SWITCH | ||||
| 0041 | 4931435997 | 58.61 | 70.92 | |
| ACCEPTANCE | ||||
| 0042 | 4931435998 | 1.90 | 2.30 | |
| PRESSURE SPRING | ||||
| 0044 | 4931408243 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0046 | 4931435999 | 7.20 | 8.71 | |
| HANDLE | ||||
| 0048 | 4931436000 | 15.84 | 19.17 | |
| DEPTH GAUGE | ||||
| 0049 | 4931384434 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0051 | 4931436001 | 69.70 | 84.34 | |
| ANVIL | ||||
| 0052 | 4931435467 | 9.00 | 10.89 | |
| ANVIL | ||||
| 0054 | 4931435469 | 12.60 | 15.25 | |
| BALL BEARING | ||||
| 0057 | 4931435477 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0058 | 4931436002 | 6.31 | 7.64 | |
| BALL BEARING | ||||
| 0059 | 4931436003 | 4.49 | 5.43 | |
| CARRYING CASE | ||||
| 0700 | 4931436004 | 50.69 | 61.33 | |
| MAINTENANCE SET | ||||
| 1000 | 4931436005 | 14.40 | 17.42 | |
| RUBBER CAP | ||||
| 1001 | 561993001 | 1.90 | 2.30 | |
| SLEEVE | ||||
| 1002 | 4931435455 | 1.80 | 2.18 | |
| LINER | ||||
| 1003 | 4931435459 | 1.80 | 2.18 | |
| BALL | ||||
| 1005 | 4931435461 | 1.80 | 2.18 | |
| RUBBER RING | ||||
| 1020 | 4931435482 | 5.40 | 6.53 | |
| WASHER | ||||
| 1023 | 4931435485 | 1.80 | 2.18 | |
| RUBBER RING | ||||
| 1053 | 4931435468 | 5.40 | 6.53 | |
| RUBBER RING | ||||
| 1055 | 4931435470 | 1.90 | 2.30 | |
| SPRING RING | ||||
| 1056 | 4931435471 | 5.40 | 6.53 | |
