Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000467837 ( M18FCHS-0 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

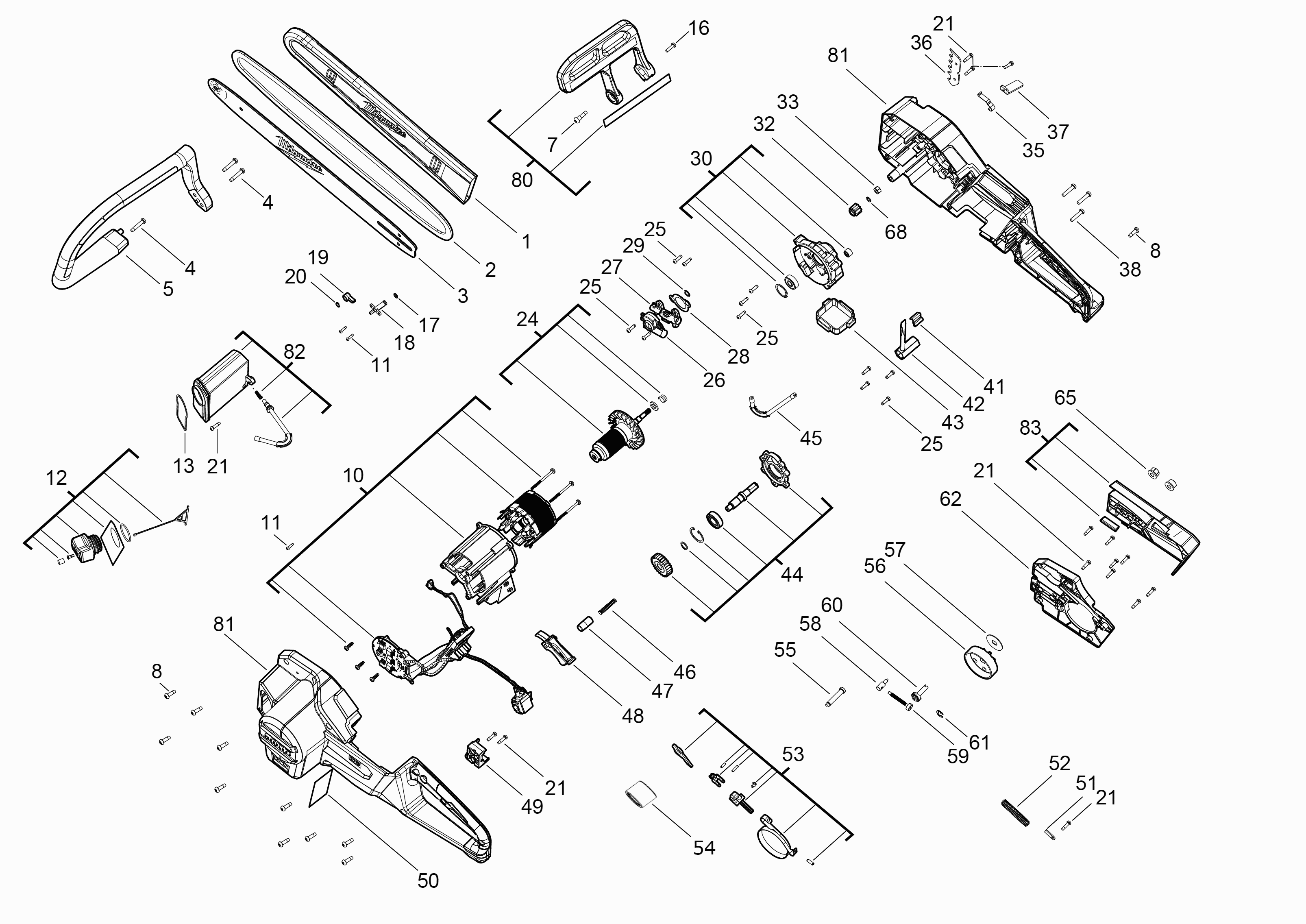

Tekeningen van de Milwaukee 4000467837 ( M18FCHS-0 )
Onderdelen lijst van de Milwaukee 4000467837 ( M18FCHS-0 )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
GUARD | ||||
0001 | 4931465906 | 14.40 | 17.42 | |
CHAINSAW SWORD | ||||
0003 | 4931469379 | 39.60 | 47.92 | |
SCREW | ||||
0004 | 4931454838 | 1.80 | 2.18 | |
HANDLE | ||||
0005 | 4931465907 | 25.34 | 30.66 | |
SCREW | ||||
0007 | 4931465908 | 1.80 | 2.18 | |
SCREW | ||||
0008 | 4931465909 | 1.90 | 2.30 | |
ELECTRONIC | ||||
0010 | 4931465910 | 380.16 | 459.99 | |
SCREW | ||||
0011 | 4931436686 | 1.90 | 2.30 | |
CAP | ||||
0012 | 4931465911 | 14.40 | 17.42 | |
SEAL RING | ||||
0013 | 4931465912 | 1.80 | 2.18 | |
SCREW | ||||
0016 | 4931465913 | 1.80 | 2.18 | |
O-RING | ||||
0017 | 4931465914 | 1.80 | 2.18 | |
CONNECTOR | ||||
0018 | 4931465915 | 4.49 | 5.43 | |
SWITCH | ||||
0019 | 4931465916 | 4.49 | 5.43 | |
HOLDING RING | ||||
0020 | 4931465917 | 1.90 | 2.30 | |
SCREW | ||||
0021 | 660024030 | 1.90 | 2.30 | |
ROTOR | ||||
0024 | 4931465918 | 126.72 | 153.33 | |
SCREW | ||||
0025 | 4931435150 | 1.90 | 2.30 | |
DUST CAP | ||||
0026 | 4931465919 | 4.49 | 5.43 | |
OIL PUMP | ||||
0027 | 4931465920 | 23.76 | 28.75 | |
SEAL | ||||
0028 | 4931465921 | 4.49 | 5.43 | |
WASHER | ||||
0029 | 4931465922 | 1.80 | 2.18 | |
GEAR BOX | ||||
0030 | 4931465923 | 50.69 | 61.33 | |
PINION | ||||
0032 | 4931465924 | 14.40 | 17.42 | |
NUT | ||||
0033 | 4931465925 | 4.49 | 5.43 | |
SPRING | ||||
0035 | 4931465926 | 1.80 | 2.18 | |
WASHER | ||||
0036 | 4931465927 | 5.40 | 6.53 | |
CORE LIFTER RING | ||||
0037 | 4931465928 | 4.49 | 5.43 | |
SCREW | ||||
0038 | 4931465929 | 1.80 | 2.18 | |
WRENCH | ||||
0041 | 4931465930 | 1.80 | 2.18 | |
WRENCH | ||||
0042 | 4931465931 | 9.00 | 10.89 | |
WIRE STRAP | ||||
0043 | 4931465932 | 1.90 | 2.30 | |
GEAR BOX COVER | ||||
0044 | 4931465933 | 69.70 | 84.34 | |
WIRE | ||||
0045 | 4931465934 | 4.49 | 5.43 | |
SPRING | ||||
0046 | 4931465935 | 1.80 | 2.18 | |
BUTTON | ||||
0047 | 4931465936 | 1.80 | 2.18 | |
TRIGGER | ||||
0048 | 4931465937 | 4.49 | 5.43 | |
SWITCH RETAINER | ||||
0049 | 4931465938 | 4.49 | 5.43 | |
RATING PLATE | ||||
0050 | 4931465939 | 1.80 | 2.18 | |
RETAINING PLATE | ||||
0051 | 4931465940 | 1.90 | 2.30 | |
SPRING | ||||
0052 | 4931465941 | 1.80 | 2.18 | |
STOP WASHER | ||||
0053 | 4931465942 | 23.76 | 28.75 | |
BUSH | ||||
0054 | 4931465943 | 4.49 | 5.43 | |
BOLT | ||||
0055 | 4931465944 | 7.20 | 8.71 | |
DRIVING ROLL | ||||
0056 | 4931465945 | 12.60 | 15.25 | |
WASHER | ||||
0057 | 4931465946 | 1.80 | 2.18 | |
SCREW | ||||
0058 | 4931465947 | 4.49 | 5.43 | |
SCREW | ||||
0059 | 4931465948 | 14.40 | 17.42 | |
SCREW | ||||
0060 | 4931465949 | 12.60 | 15.25 | |
SLEEVE | ||||
0061 | 4931436401 | 1.80 | 2.18 | |
COVER | ||||
0062 | 4931465950 | 5.40 | 6.53 | |
NUT | ||||
0065 | 4931465951 | 1.80 | 2.18 | |
WASHER | ||||
0068 | 4931465952 | 1.80 | 2.18 | |
HANDLE | ||||
0080 | 4931465953 | 19.01 | 23.00 | |
HOUSING | ||||
0081 | 4931465954 | 117.22 | 141.84 | |
TANK | ||||
0082 | 4931465955 | 20.59 | 24.91 | |
COVER | ||||
0083 | 4931465956 | 23.76 | 28.75 |
