Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000510390 (M18FCSDC165-0)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

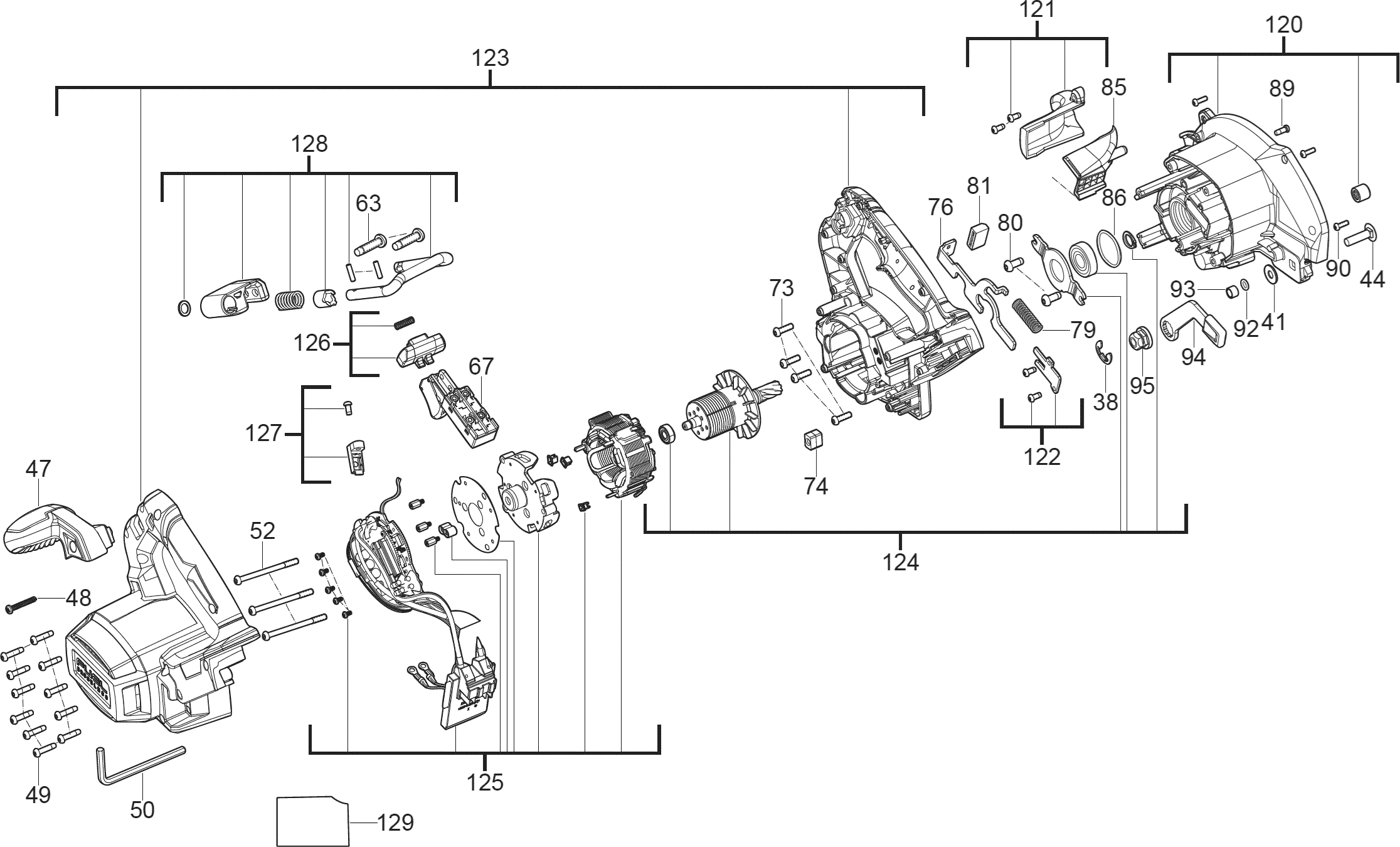

Tekeningen van de Milwaukee 4000510390 (M18FCSDC165-0)
Onderdelen lijst van de Milwaukee 4000510390 (M18FCSDC165-0)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW (2 benodigd) | ||||
| 0001 | 4931508928 | 1.20 | 1.45 | |
| COVER | ||||
| 0002 | 4931508929 | 7.20 | 8.71 | |
| SCREW | ||||
| 0005 | 4931435015 | 3.60 | 4.36 | |
| LEVER | ||||
| 0006 | 4931508930 | 3.60 | 4.36 | |
| SCREW | ||||
| 0007 | 4931508931 | 1.20 | 1.45 | |
| FLANGE | ||||
| 0008 | 4931508932 | 3.60 | 4.36 | |
| FLANGE | ||||
| 0009 | 4931508933 | 3.60 | 4.36 | |
| RETAINING RING | ||||
| 0010 | 4931466786 | 1.80 | 2.18 | |
| WASHER | ||||
| 0011 | 4931508934 | 1.20 | 1.45 | |
| SCREW | ||||
| 0012 | 4931506290 | 1.20 | 1.45 | |
| RUBBER BUMPER | ||||
| 0013 | 4931465876 | 3.00 | 3.63 | |
| GUARD CAP | ||||
| 0014 | 4931508935 | 7.20 | 8.71 | |
| SPRING | ||||
| 0015 | 4931508936 | 3.00 | 3.63 | |
| SCREW | ||||
| 0016 | 4931465163 | 3.00 | 3.63 | |
| SLEEVE | ||||
| 0017 | 4931508937 | 3.00 | 3.63 | |
| SCREW (2 benodigd) | ||||
| 0023 | 4931508938 | 1.20 | 1.45 | |
| BOLT | ||||
| 0035 | 4931506288 | 3.00 | 3.63 | |
| SCALE | ||||
| 0036 | 4931508939 | 3.60 | 4.36 | |
| SCREW (2 benodigd) | ||||
| 0037 | 4931508940 | 1.20 | 1.45 | |
| PROTECTION WASHER | ||||
| 0038 | 4931466984 | 2.28 | 2.76 | |
| NUT | ||||
| 0039 | 4931508941 | 3.60 | 4.36 | |
| LEVER | ||||
| 0040 | 4931508942 | 3.60 | 4.36 | |
| WASHER | ||||
| 0041 | 4931472005 | 1.80 | 2.18 | |
| NUT | ||||
| 0042 | 4931506287 | 1.20 | 1.45 | |
| GUIDE SHOE | ||||
| 0043 | 4931508943 | 53.90 | 65.22 | |
| SCREW (2 benodigd) | ||||
| 0044 | 4931508944 | 1.20 | 1.45 | |
| HANDLE | ||||
| 0047 | 4931508945 | 6.00 | 7.26 | |
| SCREW | ||||
| 0048 | 06827276 | 3.00 | 3.63 | |
| SCREW (10 benodigd) | ||||
| 0049 | 4931506283 | 1.20 | 1.45 | |
| ALLEN KEY | ||||
| 0050 | 4931508946 | 3.60 | 4.36 | |
| SCREW (3 benodigd) | ||||
| 0052 | 4931508947 | 1.20 | 1.45 | |
| SCREW (6 benodigd) | ||||
| 0063 | 4931480405 | 3.00 | 3.63 | |
| SWITCH KIT | ||||
| 0067 | 4931507086 | 23.10 | 27.95 | |
| SCREW | ||||
| 0073 | 4931472710 | 1.80 | 2.18 | |
| RUBBER (2 benodigd) | ||||
| 0074 | 4931508948 | 3.00 | 3.63 | |
| LOCK | ||||
| 0076 | 4931508949 | 4.80 | 5.81 | |
| SPRING | ||||
| 0079 | 4931506285 | 1.20 | 1.45 | |
| LOCKING SCREW | ||||
| 0080 | 4931465672 | 3.00 | 3.63 | |
| COVER | ||||
| 0081 | 4931494122 | 3.00 | 3.63 | |
| HOLDING BRACKET | ||||
| 0085 | 4931508950 | 3.60 | 4.36 | |
| O-RING | ||||
| 0086 | 4931436466 | 3.00 | 3.63 | |
| SCREW | ||||
| 0089 | 4931506292 | 1.20 | 1.45 | |
| SCREW (3 benodigd) | ||||
| 0090 | 4931508951 | 1.20 | 1.45 | |
| O-RING | ||||
| 0092 | 4931508952 | 3.00 | 3.63 | |
| BUSHING | ||||
| 0093 | 4931508953 | 3.00 | 3.63 | |
| LEVER | ||||
| 0094 | 4931508954 | 7.20 | 8.71 | |
| NUT | ||||
| 0095 | 4931508955 | 3.60 | 4.36 | |
| WASHER (2 benodigd) | ||||
| 0097 | 4931508956 | 3.00 | 3.63 | |
| SPRING (2 benodigd) | ||||
| 0098 | 4931508957 | 4.80 | 5.81 | |
| SCREW | ||||
| 0099 | 4931508958 | 1.20 | 1.45 | |
| GEAR BOX HOUSING | ||||
| 0120 | 4931508959 | 34.65 | 41.93 | |
| COVER | ||||
| 0121 | 4931508960 | 12.10 | 14.64 | |
| LOCKING PLATE | ||||
| 0122 | 4931508961 | 11.00 | 13.31 | |
| HOUSING | ||||
| 0123 | 4931508962 | 35.20 | 42.59 | |
| ROTOR | ||||
| 0124 | 4931508963 | 39.60 | 47.92 | |
| ELECTRONIC | ||||
| 0125 | 4931508964 | 174.90 | 211.63 | |
| SWITCH BUTTON | ||||
| 0126 | 4931508965 | 11.00 | 13.31 | |
| LED LIGHT | ||||
| 0127 | 4931508966 | 18.70 | 22.63 | |
| HOOK | ||||
| 0128 | 4931508967 | 17.60 | 21.30 | |
| RATING PLATE | ||||
| 0129 | 4931508968 | 1.20 | 1.45 | |
| LEVER | ||||
| 0130 | 4931508969 | 17.60 | 21.30 | |
| LEVER (2 benodigd) | ||||
| 0131 | 4931508970 | 12.10 | 14.64 | |
| SHAFT | ||||
| 0132 | 4931508971 | 33.00 | 39.93 | |
| DRIVING SHAFT | ||||
| 0133 | 4931508972 | 29.70 | 35.94 | |
| GUARD | ||||
| 0134 | 4931508973 | 29.70 | 35.94 | |
| GELEIDERAIL ADAPTER TBV M18 FCSDC165 | ||||
| 0135 | 4932500003 | 92.95 | 112.47 | |
| FENCE | ||||
| 0136 | 4931508974 | 20.90 | 25.29 | |
| CARRYING CASE | ||||
| 0700 | 4931508975 | 62.70 | 75.87 | |
