Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000497976 ( M18ONEF2VC34M-0 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

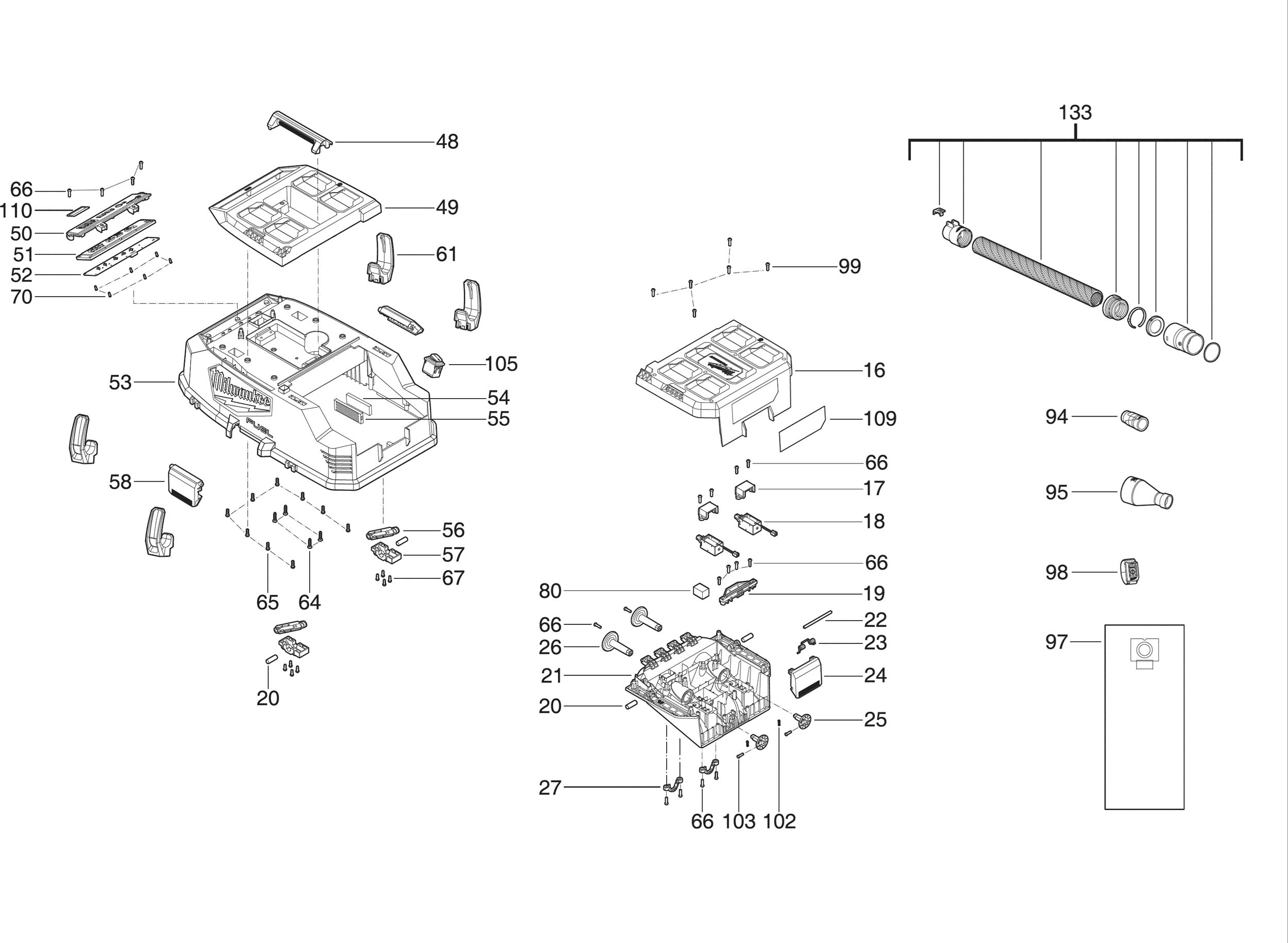

Tekeningen van de Milwaukee 4000497976 ( M18ONEF2VC34M-0 )
Onderdelen lijst van de Milwaukee 4000497976 ( M18ONEF2VC34M-0 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| COVER (2 benodigd) | ||||
| 0001 | 4931508548 | 3.60 | 4.36 | |
| COVER | ||||
| 0002 | 4931508698 | 19.80 | 23.96 | |
| HOUSING | ||||
| 0003 | 4931508699 | 23.10 | 27.95 | |
| COVER | ||||
| 0004 | 4931508700 | 3.00 | 3.63 | |
| TANK | ||||
| 0009 | 4931508701 | 83.60 | 101.16 | |
| WHEEL PAIR | ||||
| 0010 | 4931508702 | 14.30 | 17.30 | |
| COVER | ||||
| 0016 | 4931508703 | 16.50 | 19.96 | |
| BRACKET (2 benodigd) | ||||
| 0017 | 4931508704 | 3.60 | 4.36 | |
| SOLENOID ASSEMBLY (2 benodigd) | ||||
| 0018 | 4931508705 | 42.90 | 51.91 | |
| HOUSING | ||||
| 0019 | 4931508706 | 3.60 | 4.36 | |
| PIN (4 benodigd) | ||||
| 0020 | 4931508573 | 3.60 | 4.36 | |
| HOUSING | ||||
| 0021 | 4931508707 | 22.00 | 26.62 | |
| LATCH | ||||
| 0022 | 4931508708 | 3.60 | 4.36 | |
| SPRING | ||||
| 0023 | 4931508709 | 3.60 | 4.36 | |
| LATCH | ||||
| 0024 | 4931508710 | 4.80 | 5.81 | |
| PLUNGER (2 benodigd) | ||||
| 0025 | 4931508711 | 4.80 | 5.81 | |
| PLUNGER (2 benodigd) | ||||
| 0026 | 4931508712 | 6.00 | 7.26 | |
| BRACKET (2 benodigd) | ||||
| 0027 | 4931508713 | 3.00 | 3.63 | |
| ELECTRONIC | ||||
| 0028 | 4931508714 | 228.80 | 276.85 | |
| ELECTRIC FIELD | ||||
| 0029 | 4931508715 | 139.70 | 169.04 | |
| HOUSING | ||||
| 0030 | 4931508716 | 15.40 | 18.63 | |
| COVER | ||||
| 0031 | 4931508717 | 4.80 | 5.81 | |
| BRACKET | ||||
| 0032 | 4931508718 | 3.60 | 4.36 | |
| SEAL | ||||
| 0033 | 4931508719 | 6.00 | 7.26 | |
| SEAL | ||||
| 0034 | 4931508567 | 7.20 | 8.71 | |
| MOTOR | ||||
| 0035 | 4931508720 | 92.95 | 112.47 | |
| MOTOR | ||||
| 0037 | 4931508568 | 88.00 | 106.48 | |
| SEAL | ||||
| 0038 | 4931508569 | 6.00 | 7.26 | |
| ISOLATION | ||||
| 0039 | 4931508721 | 6.00 | 7.26 | |
| GAUGE (2 benodigd) | ||||
| 0040 | 4931508722 | 3.60 | 4.36 | |
| HOUSING | ||||
| 0041 | 4931508723 | 73.70 | 89.18 | |
| STRIP-BAND | ||||
| 0042 | 4931508724 | 3.60 | 4.36 | |
| SEAL | ||||
| 0043 | 4931508725 | 10.80 | 13.07 | |
| SEAL | ||||
| 0044 | 4931508726 | 13.20 | 15.97 | |
| RIVET (2 benodigd) | ||||
| 0045 | 4931508727 | 3.60 | 4.36 | |
| COVER (2 benodigd) | ||||
| 0046 | 4931508728 | 4.80 | 5.81 | |
| FRAME | ||||
| 0047 | 4931508729 | 15.40 | 18.63 | |
| HANDLE | ||||
| 0048 | 4931508544 | 6.00 | 7.26 | |
| COVER | ||||
| 0049 | 4931508730 | 18.70 | 22.63 | |
| COVER | ||||
| 0050 | 4931508731 | 7.20 | 8.71 | |
| BUTTON | ||||
| 0051 | 4931508732 | 15.40 | 18.63 | |
| ELECT.CIRCUIT BOARD | ||||
| 0052 | 4931508733 | 60.50 | 73.20 | |
| HOUSING | ||||
| 0053 | 4931508734 | 90.20 | 109.14 | |
| BRACKET | ||||
| 0054 | 4931508735 | 3.60 | 4.36 | |
| HOLDER | ||||
| 0055 | 4931508736 | 3.60 | 4.36 | |
| ROD (2 benodigd) | ||||
| 0056 | 4931508737 | 3.60 | 4.36 | |
| PIN (2 benodigd) | ||||
| 0057 | 4931508738 | 3.60 | 4.36 | |
| LATCH (2 benodigd) | ||||
| 0058 | 4931508739 | 4.80 | 5.81 | |
| PIN | ||||
| 0059 | 4931508740 | 11.00 | 13.31 | |
| HOUSING | ||||
| 0060 | 4931508741 | 3.60 | 4.36 | |
| LATCH (4 benodigd) | ||||
| 0061 | 4931508742 | 4.80 | 5.81 | |
| SCREW (8 benodigd) | ||||
| 0063 | 4931496478 | 1.80 | 2.18 | |
| SCREW (4 benodigd) | ||||
| 0064 | 4931508743 | 1.80 | 2.18 | |
| SCREW | ||||
| 0065 | 4931466659 | 1.80 | 2.18 | |
| SCREW (43 benodigd) | ||||
| 0066 | 4931508744 | 3.00 | 3.63 | |
| SCREW (13 benodigd) | ||||
| 0067 | 4931508745 | 3.00 | 3.63 | |
| SCREW | ||||
| 0068 | 4931436757 | 3.60 | 4.36 | |
| SCREW (9 benodigd) | ||||
| 0069 | 4931506826 | 1.80 | 2.18 | |
| SCREW | ||||
| 0070 | 4931466151 | 3.60 | 4.36 | |
| SCREW (2 benodigd) | ||||
| 0071 | 4931496273 | 1.80 | 2.18 | |
| SCREW (16 benodigd) | ||||
| 0072 | 4931508746 | 3.00 | 3.63 | |
| SEAL | ||||
| 0073 | 4931508747 | 7.20 | 8.71 | |
| FILTERS HEPA H13 TBV M18 ONEF2VC34M (2 STUKS) | ||||
| 0074 | 4932498662 | 62.60 | 75.75 | |
| COIN CELL PCBA | ||||
| 0077 | 4931508748 | 15.40 | 18.63 | |
| FERRITE CORE | ||||
| 0080 | 4931508749 | 4.80 | 5.81 | |
| TUBE | ||||
| 0082 | 4931508750 | 3.60 | 4.36 | |
| ADAPTOR | ||||
| 0094 | 4931508751 | 9.60 | 11.62 | |
| ADAPTOR | ||||
| 0095 | 4931508752 | 10.80 | 13.07 | |
| STOFZUIGERZAK FLEECE VOOR M18 ONEF2VC34M | ||||
| 0097 | 4932498663 | 33.65 | 40.72 | |
| REMOTE TSC CONTROL | ||||
| 0098 | 4931503508 | 64.90 | 78.53 | |
| SCREW | ||||
| 0099 | 4931436054 | 3.60 | 4.36 | |
| PIN (2 benodigd) | ||||
| 0102 | 4931508754 | 3.00 | 3.63 | |
| PIN (2 benodigd) | ||||
| 0103 | 4931508755 | 4.80 | 5.81 | |
| SWITCH ON-OFF | ||||
| 0105 | 4931508756 | 53.90 | 65.22 | |
| ELECTRONIC | ||||
| 0106 | 4931508757 | 40.70 | 49.25 | |
| SCREW (17 benodigd) | ||||
| 0107 | 4931508758 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0109 | 4931510723 | 3.60 | 4.36 | |
| LABEL | ||||
| 0110 | 4931508759 | 3.00 | 3.63 | |
| LABEL | ||||
| 0111 | 4931508760 | 3.00 | 3.63 | |
| COVER | ||||
| 0112 | 4931508761 | 3.60 | 4.36 | |
| SUPPORT BRACKET | ||||
| 0130 | 4931508762 | 17.60 | 21.30 | |
| WHEEL SET | ||||
| 0131 | 4931508763 | 95.70 | 115.80 | |
| POWER CORD | ||||
| 0132 | 4931508767 | 84.70 | 102.49 | |
| HOSE | ||||
| 0133 | 4931508765 | 52.80 | 63.89 | |
| HOUSING | ||||
| 0134 | 4931508766 | 25.30 | 30.61 | |
