Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000497984 (M18ONEF2VC34M-0)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

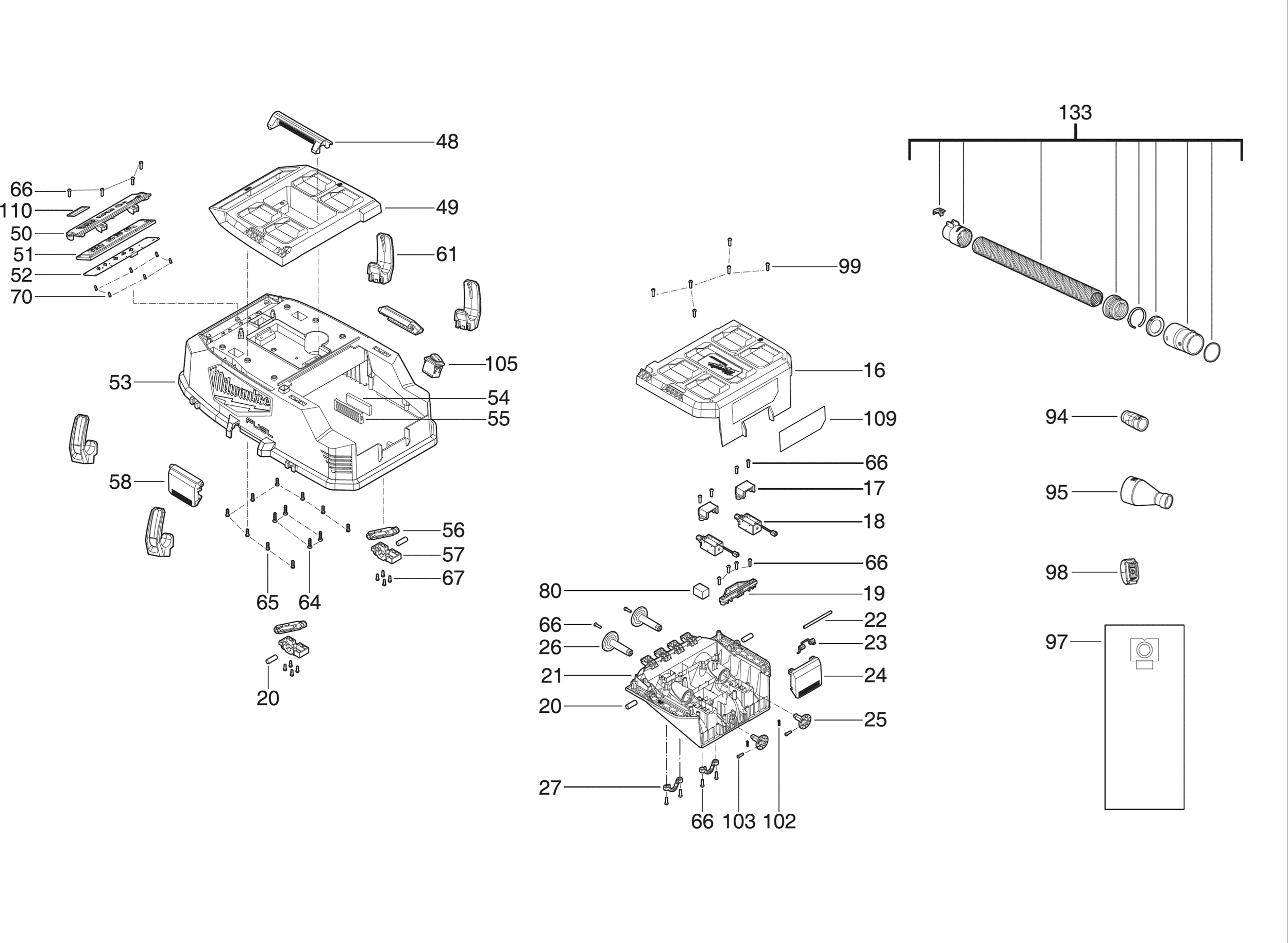

Tekeningen van de Milwaukee 4000497984 (M18ONEF2VC34M-0)
Onderdelen lijst van de Milwaukee 4000497984 (M18ONEF2VC34M-0)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| COVER (2 benodigd) | ||||
| 0001 | 4931508548 | 3.60 | 4.36 | |
| COVER | ||||
| 0002 | 4931508698 | 19.80 | 23.96 | |
| HOUSING | ||||
| 0003 | 4931508699 | 23.10 | 27.95 | |
| COVER | ||||
| 0004 | 4931508700 | 3.00 | 3.63 | |
| TANK | ||||
| 0009 | 4931508701 | 83.60 | 101.16 | |
| WHEEL PAIR | ||||
| 0010 | 4931508702 | 14.30 | 17.30 | |
| COVER | ||||
| 0016 | 4931508703 | 16.50 | 19.96 | |
| BRACKET (2 benodigd) | ||||
| 0017 | 4931508704 | 3.60 | 4.36 | |
| SOLENOID ASSEMBLY (2 benodigd) | ||||
| 0018 | 4931508705 | 42.90 | 51.91 | |
| HOUSING | ||||
| 0019 | 4931508706 | 3.60 | 4.36 | |
| PIN (4 benodigd) | ||||
| 0020 | 4931508573 | 3.60 | 4.36 | |
| HOUSING | ||||
| 0021 | 4931508707 | 22.00 | 26.62 | |
| LATCH | ||||
| 0022 | 4931508708 | 3.60 | 4.36 | |
| SPRING | ||||
| 0023 | 4931508709 | 3.60 | 4.36 | |
| LATCH | ||||
| 0024 | 4931508710 | 4.80 | 5.81 | |
| PLUNGER (2 benodigd) | ||||
| 0025 | 4931508711 | 4.80 | 5.81 | |
| PLUNGER (2 benodigd) | ||||
| 0026 | 4931508712 | 6.00 | 7.26 | |
| BRACKET (2 benodigd) | ||||
| 0027 | 4931508713 | 3.00 | 3.63 | |
| ELECTRONIC | ||||
| 0028 | 4931508714 | 228.80 | 276.85 | |
| ELECTRIC FIELD | ||||
| 0029 | 4931508715 | 139.70 | 169.04 | |
| HOUSING | ||||
| 0030 | 4931508716 | 15.40 | 18.63 | |
| COVER | ||||
| 0031 | 4931508717 | 4.80 | 5.81 | |
| BRACKET | ||||
| 0032 | 4931508718 | 3.60 | 4.36 | |
| SEAL | ||||
| 0033 | 4931508719 | 6.00 | 7.26 | |
| SEAL | ||||
| 0034 | 4931508567 | 7.20 | 8.71 | |
| MOTOR | ||||
| 0035 | 4931508720 | 92.95 | 112.47 | |
| MOTOR | ||||
| 0037 | 4931508568 | 88.00 | 106.48 | |
| SEAL | ||||
| 0038 | 4931508569 | 6.00 | 7.26 | |
| ISOLATION | ||||
| 0039 | 4931508721 | 6.00 | 7.26 | |
| GAUGE (2 benodigd) | ||||
| 0040 | 4931508722 | 3.60 | 4.36 | |
| HOUSING | ||||
| 0041 | 4931508723 | 73.70 | 89.18 | |
| STRIP-BAND | ||||
| 0042 | 4931508724 | 3.60 | 4.36 | |
| SEAL | ||||
| 0043 | 4931508725 | 10.80 | 13.07 | |
| SEAL | ||||
| 0044 | 4931508726 | 13.20 | 15.97 | |
| RIVET (2 benodigd) | ||||
| 0045 | 4931508727 | 3.60 | 4.36 | |
| COVER (2 benodigd) | ||||
| 0046 | 4931508728 | 4.80 | 5.81 | |
| FRAME | ||||
| 0047 | 4931508729 | 15.40 | 18.63 | |
| HANDLE | ||||
| 0048 | 4931508544 | 6.00 | 7.26 | |
| COVER | ||||
| 0049 | 4931508730 | 18.70 | 22.63 | |
| COVER | ||||
| 0050 | 4931508731 | 7.20 | 8.71 | |
| BUTTON | ||||
| 0051 | 4931508732 | 15.40 | 18.63 | |
| ELECT.CIRCUIT BOARD | ||||
| 0052 | 4931508733 | 60.50 | 73.20 | |
| HOUSING | ||||
| 0053 | 4931508734 | 90.20 | 109.14 | |
| BRACKET | ||||
| 0054 | 4931508735 | 3.60 | 4.36 | |
| HOLDER | ||||
| 0055 | 4931508736 | 3.60 | 4.36 | |
| ROD (2 benodigd) | ||||
| 0056 | 4931508737 | 3.60 | 4.36 | |
| PIN (2 benodigd) | ||||
| 0057 | 4931508738 | 3.60 | 4.36 | |
| LATCH (2 benodigd) | ||||
| 0058 | 4931508739 | 4.80 | 5.81 | |
| PIN | ||||
| 0059 | 4931508740 | 11.00 | 13.31 | |
| HOUSING | ||||
| 0060 | 4931508741 | 3.60 | 4.36 | |
| LATCH (4 benodigd) | ||||
| 0061 | 4931508742 | 4.80 | 5.81 | |
| SCREW (8 benodigd) | ||||
| 0063 | 4931496478 | 1.80 | 2.18 | |
| SCREW (4 benodigd) | ||||
| 0064 | 4931508743 | 1.80 | 2.18 | |
| SCREW | ||||
| 0065 | 4931466659 | 1.80 | 2.18 | |
| SCREW (43 benodigd) | ||||
| 0066 | 4931508744 | 3.00 | 3.63 | |
| SCREW (13 benodigd) | ||||
| 0067 | 4931508745 | 3.00 | 3.63 | |
| SCREW | ||||
| 0068 | 4931436757 | 3.60 | 4.36 | |
| SCREW (9 benodigd) | ||||
| 0069 | 4931506826 | 1.80 | 2.18 | |
| SCREW | ||||
| 0070 | 4931466151 | 3.60 | 4.36 | |
| SCREW (2 benodigd) | ||||
| 0071 | 4931496273 | 1.80 | 2.18 | |
| SCREW (16 benodigd) | ||||
| 0072 | 4931508746 | 3.00 | 3.63 | |
| SEAL | ||||
| 0073 | 4931508747 | 7.20 | 8.71 | |
| FILTERS HEPA H13 TBV M18 ONEF2VC34M (2 STUKS) | ||||
| 0074 | 4932498662 | 62.60 | 75.75 | |
| COIN CELL PCBA | ||||
| 0077 | 4931508748 | 15.40 | 18.63 | |
| FERRITE CORE | ||||
| 0080 | 4931508749 | 4.80 | 5.81 | |
| TUBE | ||||
| 0082 | 4931508750 | 3.60 | 4.36 | |
| ADAPTOR | ||||
| 0094 | 4931508751 | 9.60 | 11.62 | |
| ADAPTOR | ||||
| 0095 | 4931508752 | 10.80 | 13.07 | |
| STOFZUIGERZAK FLEECE VOOR M18 ONEF2VC34M | ||||
| 0097 | 4932498663 | 33.65 | 40.72 | |
| REMOTE TSC CONTROL | ||||
| 0098 | 4931503508 | 64.90 | 78.53 | |
| SCREW | ||||
| 0099 | 4931436054 | 3.60 | 4.36 | |
| PIN (2 benodigd) | ||||
| 0102 | 4931508754 | 3.00 | 3.63 | |
| PIN (2 benodigd) | ||||
| 0103 | 4931508755 | 4.80 | 5.81 | |
| SWITCH ON-OFF | ||||
| 0105 | 4931508756 | 53.90 | 65.22 | |
| ELECTRONIC | ||||
| 0106 | 4931508757 | 40.70 | 49.25 | |
| SCREW (17 benodigd) | ||||
| 0107 | 4931508758 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0109 | 4931510724 | 3.60 | 4.36 | |
| LABEL | ||||
| 0110 | 4931508759 | 3.00 | 3.63 | |
| LABEL | ||||
| 0111 | 4931508760 | 3.00 | 3.63 | |
| COVER | ||||
| 0112 | 4931508761 | 3.60 | 4.36 | |
| SUPPORT BRACKET | ||||
| 0130 | 4931508762 | 17.60 | 21.30 | |
| WHEEL SET | ||||
| 0131 | 4931508763 | 95.70 | 115.80 | |
| POWER CORD | ||||
| 0132 | 4931508764 | 86.90 | 105.15 | |
| HOSE | ||||
| 0133 | 4931508765 | 52.80 | 63.89 | |
| HOUSING | ||||
| 0134 | 4931508766 | 25.30 | 30.61 | |
| ADAPTOR | ||||
| 0135 | 4931512421 | 88.00 | 106.48 | |
