Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000380851 ( MD4-85 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

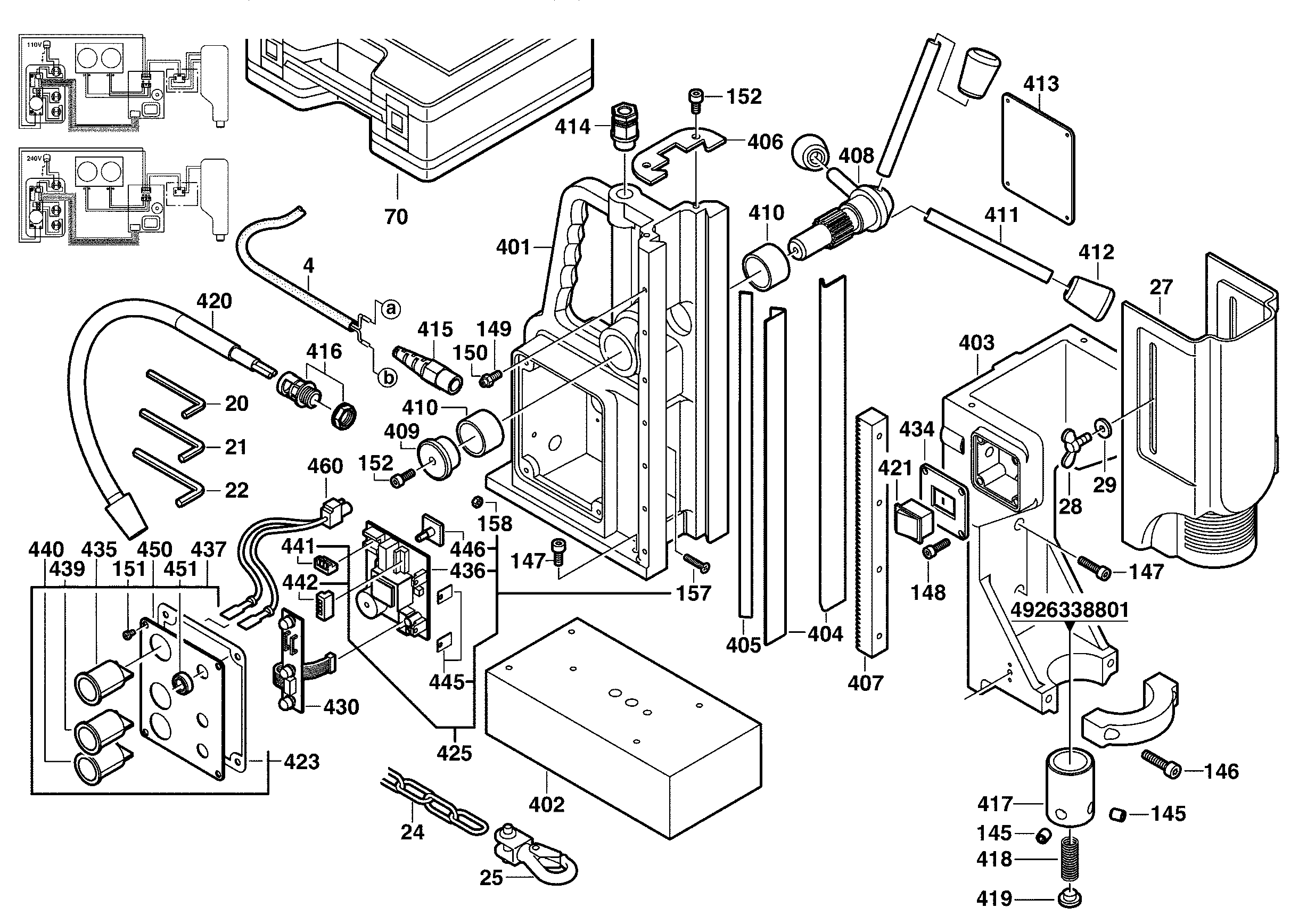

Tekeningen van de Milwaukee 4000380851 ( MD4-85 )
Onderdelen lijst van de Milwaukee 4000380851 ( MD4-85 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931380049 | 53.86 | 65.17 | |
| KEY D911 2,5MM | ||||
| 0020 | 4931606714 | 4.49 | 5.43 | |
| KEY D911 4 | ||||
| 0021 | 4931606738 | 4.49 | 5.43 | |
| HEX WRENCH D 911 5 GAL | ||||
| 0022 | 4931616056 | 4.49 | 5.43 | |
| SAFETY STRAP | ||||
| 0024 | 4931371780 | 16.20 | 19.60 | |
| SAFTY GUARD | ||||
| 0027 | 4931371787 | 76.03 | 92.00 | |
| SCREW | ||||
| 0145 | 4931447955 | 8.64 | 10.45 | |
| SCREW D 912 M 6X30 8,8 | ||||
| 0146 | 4931624082 | 3.60 | 4.36 | |
| SCREW | ||||
| 0147 | 4931622928 | 1.80 | 2.18 | |
| SCREW | ||||
| 0148 | 9170327860 | 1.80 | 2.18 | |
| SCREW D 913 M8X8 | ||||
| 0149 | 4931624084 | 3.60 | 4.36 | |
| NUT D 985 M 5 | ||||
| 0150 | 4931618176 | 4.49 | 5.43 | |
| SCREW D 912 M 5X10 | ||||
| 0151 | 4931614786 | 1.80 | 2.18 | |
| SCREW D912 M6X16 | ||||
| 0152 | 4931607033 | 1.80 | 2.18 | |
| SCREW D 912 M 6X30 8,8 | ||||
| 0157 | 4931624085 | 1.80 | 2.18 | |
| NUT D 934 M 3 BR | ||||
| 0158 | 4931613998 | 4.49 | 5.43 | |
| MAGNETIC FOOT | ||||
| 0402 | 4931380013 | 399.17 | 483.00 | |
| FRAME | ||||
| 0403 | 4931380014 | 413.42 | 500.24 | |
| LEDGE | ||||
| 0404 | 4931380015 | 16.20 | 19.60 | |
| PARALLEL GUIDE | ||||
| 0405 | 4931380016 | 14.40 | 17.42 | |
| COVER PLATE | ||||
| 0406 | 4931380017 | 17.42 | 21.08 | |
| TOOTH RACK | ||||
| 0407 | 4931380018 | 91.87 | 111.16 | |
| FEED SPINDLE | ||||
| 0408 | 4931380019 | 101.38 | 122.67 | |
| END PIECE | ||||
| 0409 | 4931380020 | 34.85 | 42.17 | |
| BEARING BRACKET | ||||
| 0410 | 4931380021 | 14.40 | 17.42 | |
| LEVER | ||||
| 0411 | 4931380022 | 10.80 | 13.07 | |
| HANDLE | ||||
| 0412 | 4931380023 | 5.40 | 6.53 | |
| FITTING | ||||
| 0414 | 4931380025 | 11.69 | 14.14 | |
| PROTECTING COVER | ||||
| 0415 | 4931380026 | 15.84 | 19.17 | |
| Freesdoorn, 19 mm Weldon, morseconus 3 | ||||
| 0417 | 4932343310 | 113.26 | 137.04 | |
| PRESSURE SPRING | ||||
| 0418 | 4931380029 | 9.50 | 11.50 | |
| CABLE SET | ||||
| 0420 | 4931380065 | 15.84 | 19.17 | |
| SWITCH | ||||
| 0421 | 4931380032 | 15.84 | 19.17 | |
| SEAL | ||||
| 0423 | 4931380033 | 16.42 | 19.87 | |
| PRINTED CIRC, BOARD | ||||
| 0425 | 4931380872 | 367.49 | 444.66 | |
| ELECTRONIC | ||||
| 0430 | 4931380893 | 159.98 | 193.58 | |
| SWITCH ON-OFF | ||||
| 0435 | 4931380043 | 23.76 | 28.75 | |
| PRINTED CIRC, BOARD | ||||
| 0436 | 4931380876 | 269.28 | 325.83 | |
| SWITCH BOARD | ||||
| 0437 | 4931380896 | 145.73 | 176.33 | |
| SWITCH MAGNETIC | ||||
| 0439 | 4931380037 | 41.18 | 49.83 | |
| SWITCH MOTOR | ||||
| 0440 | 4931380038 | 23.76 | 28.75 | |
| PLUG | ||||
| 0441 | 4931380041 | 14.40 | 17.42 | |
| PLUG | ||||
| 0442 | 4931380042 | 14.40 | 17.42 | |
| STICKER | ||||
| 0445 | 4931380045 | 1.80 | 2.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0446 | 4931380046 | |||
| SEAL | ||||
| 0451 | 4931380039 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0460 | 4931396235 | 20.59 | 24.91 | |
