Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000452350 ( MDE41 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

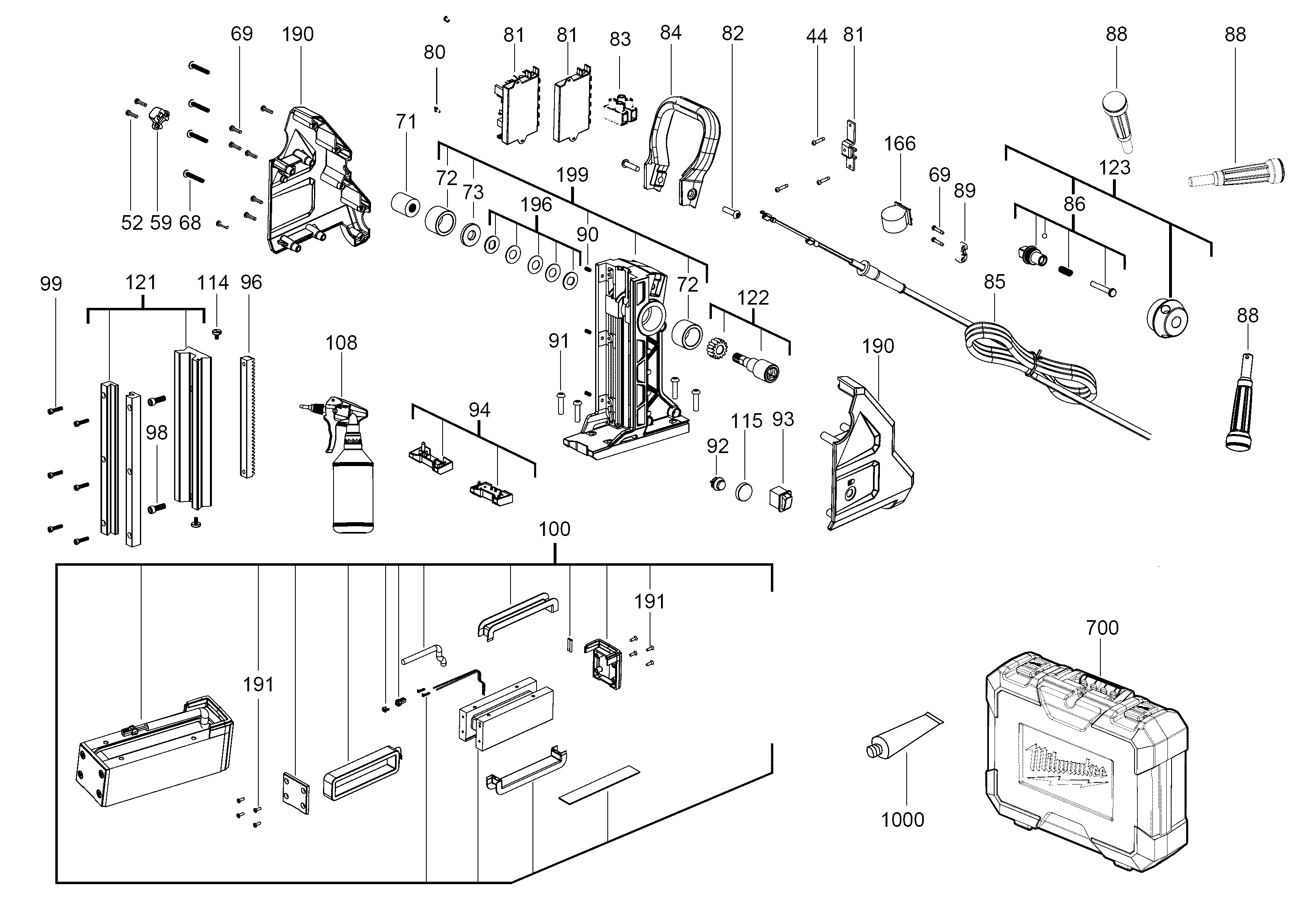

Tekeningen van de Milwaukee 4000452350 ( MDE41 )
Onderdelen lijst van de Milwaukee 4000452350 ( MDE41 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| GUIDE BOLT | ||||
| 10001 | 4931453396 | 30.10 | 36.42 | |
| GUIDE BAR | ||||
| 10002 | 4931453397 | 25.34 | 30.66 | |
| CHUCK SHROUD | ||||
| 10003 | 4931453092 | 90.29 | 109.25 | |
| RETAINING RING | ||||
| 10006 | 4931453093 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 10007 | 4931453094 | 8.09 | 9.79 | |
| SCREW | ||||
| 10008 | 4931453398 | 1.80 | 2.18 | |
| SCREW | ||||
| 10009 | 4931453100 | 1.80 | 2.18 | |
| CABLE CLAMP | ||||
| 10010 | 4931453099 | 4.49 | 5.43 | |
| CLAMPING LEVER | ||||
| 10011 | 4931456260 | 22.18 | 26.84 | |
| RETAINING PLATE | ||||
| 10014 | 4931453097 | 1.90 | 2.30 | |
| GUIDE BOLT | ||||
| 10015 | 4931453101 | 3.00 | 3.63 | |
| HOLDING BRACKET | ||||
| 10016 | 4931453102 | 5.40 | 6.53 | |
| SPRING | ||||
| 10017 | 4931453103 | 4.49 | 5.43 | |
| HOLDING BRACKET | ||||
| 10018 | 4931453104 | 4.49 | 5.43 | |
| GEAR BOX | ||||
| 10019 | 4931453399 | 66.53 | 80.50 | |
| LOCKING ROD | ||||
| 10020 | 4931453098 | 15.84 | 19.17 | |
| BALL BEARING | ||||
| 10022 | 4931453105 | 1.90 | 2.30 | |
| SPRING | ||||
| 10023 | 4931453106 | 2.50 | 3.02 | |
| KOGELLAGER | ||||
| 10024 | 02040640 | 8.64 | 10.45 | |
| NAALDLAGER | ||||
| 10027 | 02502400 | 3.78 | 4.57 | |
| WORM GEAR WHEEL | ||||
| 10028 | 4931453400 | 31.68 | 38.33 | |
| HUB | ||||
| 10029 | 4931453110 | 5.40 | 6.53 | |
| COUPLING | ||||
| 10030 | 4931453109 | 7.20 | 8.71 | |
| WORM GEAR WHEEL | ||||
| 10031 | 4931453401 | 25.34 | 30.66 | |
| WASHER | ||||
| 10032 | 680335077 | 1.90 | 2.30 | |
| RETAINING RING | ||||
| 10033 | 4931453112 | 5.40 | 6.53 | |
| NEEDLE BEARING | ||||
| 10034 | 4931453113 | 17.11 | 20.70 | |
| SEAL | ||||
| 10035 | 4931453114 | 7.20 | 8.71 | |
| BALL BEARING | ||||
| 10036 | 4931453402 | 4.49 | 5.43 | |
| WORM GEAR WHEEL | ||||
| 10038 | 4931453403 | 10.80 | 13.07 | |
| NEEDLE BEARING | ||||
| 10039 | 4931453404 | 1.90 | 2.30 | |
| SEAL | ||||
| 10040 | 4931453115 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 10043 | 681337001 | 9.00 | 10.89 | |
| SCREW | ||||
| 10046 | 4931436769 | 1.80 | 2.18 | |
| SCREW | ||||
| 10052 | 660024030 | 1.90 | 2.30 | |
| MOTOR HOUSING | ||||
| 10056 | 4931453406 | 15.84 | 19.17 | |
| CLAMP | ||||
| 10059 | 4931453407 | 1.80 | 2.18 | |
| PIN | ||||
| 10060 | 4931453408 | 1.80 | 2.18 | |
| ELECTRIC FIELD | ||||
| 10061 | 4931453409 | 80.78 | 97.74 | |
| SCREW | ||||
| 10062 | 4931453410 | 1.80 | 2.18 | |
| WASHER | ||||
| 10063 | 4931453411 | 1.80 | 2.18 | |
| AIR DEFLECTOR RING | ||||
| 10064 | 4931453412 | 1.80 | 2.18 | |
| BUSHING | ||||
| 10066 | 4931453192 | 4.49 | 5.43 | |
| KEY HOLDER | ||||
| 10104 | 4931453193 | 1.90 | 2.30 | |
| SAFETY STRAP | ||||
| 10109 | 4931453194 | 31.68 | 38.33 | |
| CYLINDER PIN | ||||
| 10111 | 4931453172 | 4.49 | 5.43 | |
| WASHER | ||||
| 10112 | 4931453424 | 1.80 | 2.18 | |
| WASHER | ||||
| 10113 | 4931453425 | 1.80 | 2.18 | |
| EJECTOR | ||||
| 10116 | 4931453191 | 5.40 | 6.53 | |
| PINION | ||||
| 10118 | 4931453426 | 44.35 | 53.66 | |
| PINION | ||||
| 10119 | 4931453427 | 50.69 | 61.33 | |
| GEAR BOX COVER | ||||
| 10120 | 4931453428 | 52.27 | 63.25 | |
| TURNING KNOB | ||||
| 10153 | 4931453184 | 7.20 | 8.71 | |
| MOTOR ASSEMBLY | ||||
| 10173 | 4931453430 | 96.62 | 116.91 | |
| GEAR KIT | ||||
| 10174 | 4931453431 | 77.62 | 93.92 | |
| Boorhouder, sleutel en adapter tbv M18FMDP | ||||
| 10175 | 49590020 | 106.37 | 128.71 | |
| KIT | ||||
| 10176 | 4931453185 | 39.60 | 47.92 | |
| OUTPUT SHAFT KIT | ||||
| 10177 | 4931453107 | 123.55 | 149.50 | |
| MOTOR HOUSING | ||||
| 10178 | 4931453460 | 22.18 | 26.84 | |
| SWITCH KIT | ||||
| 10182 | 4931453433 | 9.00 | 10.89 | |
| CARBON BRUSH SET | ||||
| 10183 | 4931453434 | 23.76 | 28.75 | |
| RATING PLATE | ||||
| 10195 | 4931453463 | 1.80 | 2.18 | |
| WIRE | ||||
| 10200 | 4931453438 | 53.86 | 65.17 | |
| GREASE | ||||
| 11000 | 49085270 | 34.85 | 42.17 | |
| SCREW | ||||
| 20044 | 4931453405 | 1.80 | 2.18 | |
| SCREW | ||||
| 20068 | 4931453127 | 1.80 | 2.18 | |
| SCREW | ||||
| 20069 | 4931453124 | 1.80 | 2.18 | |
| BIT GUIDE | ||||
| 20071 | 4931453129 | 19.01 | 23.00 | |
| BUSHING | ||||
| 20072 | 4931453130 | 17.42 | 21.08 | |
| COMPENSATION PLATE | ||||
| 20073 | 4931453131 | 10.80 | 13.07 | |
| SCREW | ||||
| 20080 | 4931453413 | 1.80 | 2.18 | |
| ELECTRONIC | ||||
| 20081 | 4931453452 | 193.25 | 233.83 | |
| SCREW | ||||
| 20082 | 4931453132 | 1.80 | 2.18 | |
| CONNECTOR | ||||
| 20083 | 4931453415 | 3.60 | 4.36 | |
| HANDLE | ||||
| 20084 | 4931453133 | 17.42 | 21.08 | |
| CONNECTION CABLE | ||||
| 20085 | 4931453417 | 60.19 | 72.83 | |
| SPINDLE LOCK | ||||
| 20086 | 4931453136 | 20.59 | 24.91 | |
| OPERATING HANDLE | ||||
| 20088 | 4931453137 | 20.59 | 24.91 | |
| CABLE CLAMP | ||||
| 20089 | 4931453418 | 1.80 | 2.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 20090 | 4931435627 | |||
| SCREW | ||||
| 20091 | 4931453138 | 1.80 | 2.18 | |
| SWITCH | ||||
| 20092 | 4931453155 | 23.76 | 28.75 | |
| SWITCH | ||||
| 20093 | 4931453455 | 20.59 | 24.91 | |
| ELECTRIC ELEMENT | ||||
| 20094 | 4931453456 | 9.00 | 10.89 | |
| TOOTH RACK | ||||
| 20096 | 4931453140 | 26.93 | 32.59 | |
| SCREW | ||||
| 20098 | 4931453141 | 1.80 | 2.18 | |
| SCREW | ||||
| 20099 | 4931453167 | 1.80 | 2.18 | |
| MAG BASE PLATE | ||||
| 20100 | 4931453457 | 416.59 | 504.07 | |
| TANK | ||||
| 20108 | 4931453423 | 12.60 | 15.25 | |
| SCREW | ||||
| 20114 | 4931453171 | 1.80 | 2.18 | |
| SWITCH COVER | ||||
| 20115 | 4931453168 | 5.40 | 6.53 | |
| HOLDING DEVICE | ||||
| 20121 | 4931453173 | 240.77 | 291.33 | |
| GEAR BOX KIT | ||||
| 20122 | 4931453175 | 33.26 | 40.24 | |
| FEED SPINDLE | ||||
| 20123 | 4931453177 | 50.69 | 61.33 | |
| MAGNET | ||||
| 20166 | 4931453429 | 25.34 | 30.66 | |
| HOUSING | ||||
| 20190 | 4931453462 | 25.34 | 30.66 | |
| Adjust, washer set | ||||
| 20196 | 4931453196 | 19.01 | 23.00 | |
| FOOT | ||||
| 20199 | 4931453437 | 150.48 | 182.08 | |
| CARRYING CASE | ||||
| 20700 | 4931453465 | 123.55 | 149.50 | |
