Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000380820 ( MDE42 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

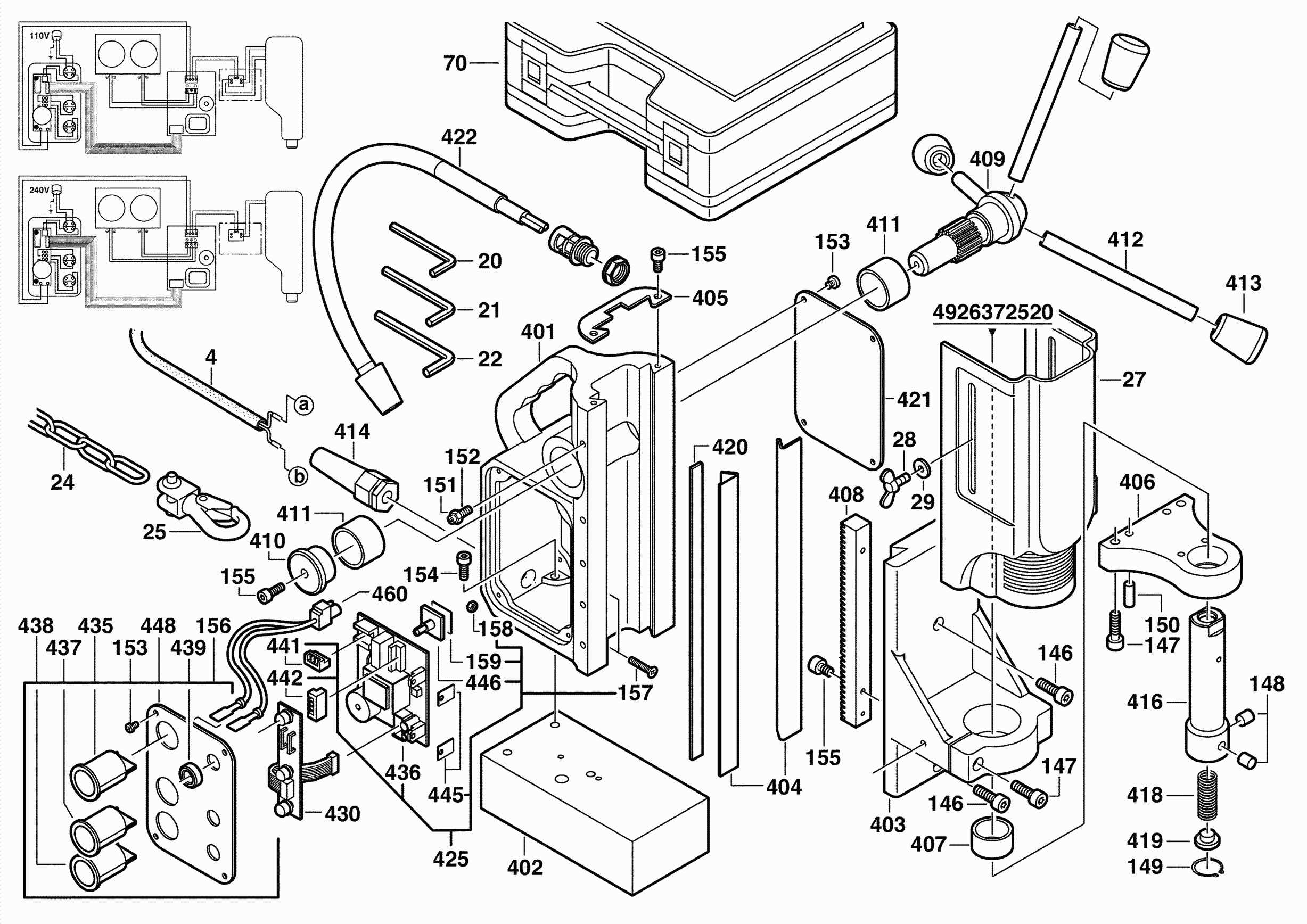

Tekeningen van de Milwaukee 4000380820 ( MDE42 )
Onderdelen lijst van de Milwaukee 4000380820 ( MDE42 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| KEY D911 2,5MM | ||||
| 0020 | 4931606714 | 4.49 | 5.43 | |
| KEY D911 4 | ||||
| 0021 | 4931606738 | 4.49 | 5.43 | |
| HEX WRENCH D 911 5 GAL | ||||
| 0022 | 4931616056 | 4.49 | 5.43 | |
| SAFETY STRAP | ||||
| 0024 | 4931371780 | 16.20 | 19.60 | |
| SAFTY GUARD | ||||
| 0027 | 4931371784 | 76.03 | 92.00 | |
| CARRYING CASE | ||||
| 0070 | 4931371783 | 169.49 | 205.08 | |
| SCREW | ||||
| 0146 | 4931622928 | 1.80 | 2.18 | |
| SCREW D 912 M 6X30 8,8 | ||||
| 0147 | 4931624082 | 3.60 | 4.36 | |
| SCREW D 913 M8X8 | ||||
| 0148 | 4931622523 | 1.80 | 2.18 | |
| RING | ||||
| 0149 | 4931624083 | 4.49 | 5.43 | |
| CYLINDER PIN | ||||
| 0150 | 4931624086 | 3.60 | 4.36 | |
| NUT D 985 M 5 | ||||
| 0151 | 4931618176 | 4.49 | 5.43 | |
| SCREW D 913 M8X8 | ||||
| 0152 | 4931624084 | 3.60 | 4.36 | |
| SCREW | ||||
| 0153 | 4931380067 | 4.49 | 5.43 | |
| SCREW D912 M6X16 | ||||
| 0155 | 4931607033 | 1.80 | 2.18 | |
| SWITCH BOARD | ||||
| 0156 | 4931380895 | 58.61 | 70.92 | |
| SCREW D 912 M 6X30 8,8 | ||||
| 0157 | 4931624085 | 1.80 | 2.18 | |
| NUT D 934 M 3 BR | ||||
| 0158 | 4931613998 | 4.49 | 5.43 | |
| MAGNETIC FOOT | ||||
| 0402 | 4931380051 | 321.55 | 389.08 | |
| FRAME | ||||
| 0403 | 4931380052 | 399.17 | 483.00 | |
| LEDGE | ||||
| 0404 | 4931380053 | 14.40 | 17.42 | |
| COVER PLATE | ||||
| 0405 | 4931380054 | 15.84 | 19.17 | |
| HOLDER | ||||
| 0406 | 4931380055 | 95.04 | 115.00 | |
| BEARING BRACKET | ||||
| 0407 | 4931380056 | 15.84 | 19.17 | |
| TOOTH RACK | ||||
| 0408 | 4931380057 | 71.28 | 86.25 | |
| FEED SPINDLE | ||||
| 0409 | 4931380058 | 91.87 | 111.16 | |
| END PIECE | ||||
| 0410 | 4931380020 | 34.85 | 42.17 | |
| BEARING BRACKET | ||||
| 0411 | 4931380021 | 14.40 | 17.42 | |
| LEVER | ||||
| 0412 | 4931380059 | 15.84 | 19.17 | |
| HANDLE | ||||
| 0413 | 4931380060 | 39.60 | 47.92 | |
| PROTECTING COVER | ||||
| 0414 | 4931380026 | 15.84 | 19.17 | |
| PRESSURE SPRING | ||||
| 0418 | 4931380062 | 10.80 | 13.07 | |
| THRUST PIECE | ||||
| 0419 | 4931380063 | 14.40 | 17.42 | |
| LEDGE | ||||
| 0420 | 4931380064 | 12.60 | 15.25 | |
| CABLE SET | ||||
| 0422 | 4931380065 | 15.84 | 19.17 | |
| SWITCH ON-OFF | ||||
| 0435 | 4931380043 | 23.76 | 28.75 | |
| SWITCH MAGNETIC | ||||
| 0437 | 4931380037 | 41.18 | 49.83 | |
| SWITCH MOTOR | ||||
| 0438 | 4931380038 | 23.76 | 28.75 | |
| SEAL | ||||
| 0439 | 4931380039 | 1.80 | 2.18 | |
| PLUG | ||||
| 0441 | 4931380041 | 14.40 | 17.42 | |
| PLUG | ||||
| 0442 | 4931380042 | 14.40 | 17.42 | |
| STICKER | ||||
| 0445 | 4931380045 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0460 | 4931396235 | 20.59 | 24.91 | |
