Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000417416 ( PFH26 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

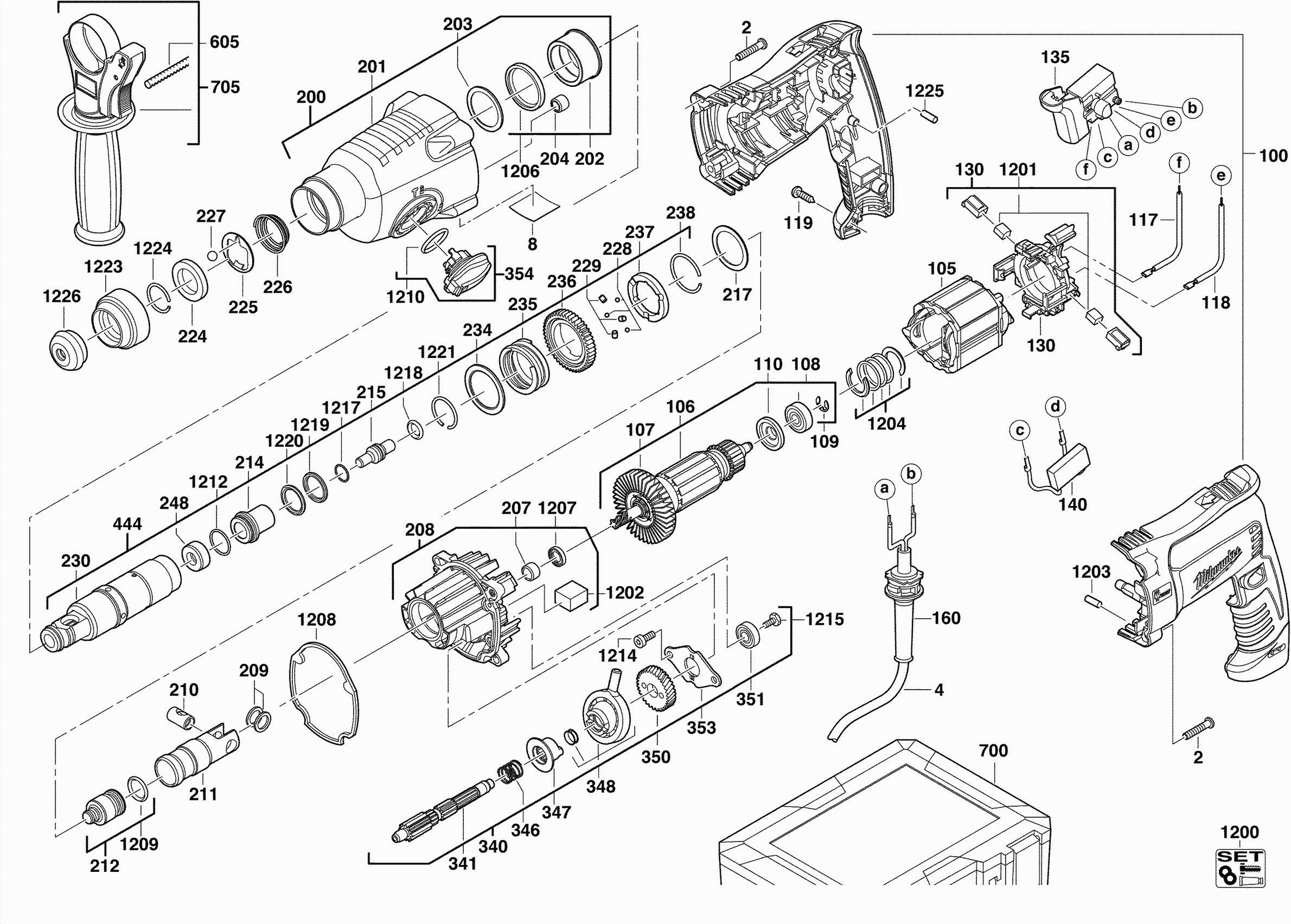

Tekeningen van de Milwaukee 4000417416 ( PFH26 )
Onderdelen lijst van de Milwaukee 4000417416 ( PFH26 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0002 | 661288001 | 1.80 | 2.18 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0004 | 4931624338 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0008 | 4931417419 | |||
| HOUSING | ||||
| 0100 | 201242003 | 30.10 | 36.42 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442722 | 26.93 | 32.59 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426176 | 23.76 | 28.75 | |
| ARMATURE | ||||
| 0106 | 741539002 | 46.86 | 56.70 | |
| FAN | ||||
| 0107 | 4931408165 | 4.49 | 5.43 | |
| Ball Bearing | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| WASHER | ||||
| 0109 | 4931621834 | 1.80 | 2.18 | |
| INSULATING DISC | ||||
| 0110 | 4931387434 | 4.49 | 5.43 | |
| WIRE | ||||
| 0117 | 4931624651 | 1.80 | 2.18 | |
| WIRE | ||||
| 0118 | 4931624651 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0119 | 4931624515 | 1.80 | 2.18 | |
| CLAMPING RING | ||||
| 0130 | 302393010 | 15.84 | 19.17 | |
| SWITCH | ||||
| 0135 | 760251020 | 25.15 | 30.43 | |
| Capacitor | ||||
| 0140 | 4931311062 | 4.49 | 5.43 | |
| PROTECTING COVER | ||||
| 0160 | 4931393422 | 5.40 | 6.53 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0200 | 4931387466 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 0201 | 350143002 | |||
| SINTERED BEARING | ||||
| 0202 | 692727001 | 12.60 | 15.25 | |
| COMPENSATING WASHER | ||||
| 0203 | 633514001 | 1.90 | 2.30 | |
| COMPENSATING WASHER | ||||
| 0203 | 4931387578 | 1.80 | 2.18 | |
| NEEDLE BEARING | ||||
| 0204 | 4931453736 | 3.78 | 4.57 | |
| NEEDLE BEARING | ||||
| 0207 | 4931219424 | 3.60 | 4.36 | |
| BEARING END PLATE | ||||
| 0208 | 201235004 | 31.68 | 38.33 | |
| WASHER | ||||
| 0209 | 4931365112 | 1.80 | 2.18 | |
| CYLINDRICAL BOLT | ||||
| 0210 | 4931436807 | 7.20 | 8.71 | |
| CYLINDER | ||||
| 0211 | 692717001 | 18.80 | 22.75 | |
| PERC, BODY W SEAL | ||||
| 0212 | 201233002 | 20.59 | 24.91 | |
| SLEEVE | ||||
| 0214 | 692722001 | 9.00 | 10.89 | |
| ANVIL | ||||
| 0215 | 692590001 | 10.81 | 13.08 | |
| WASHER | ||||
| 0217 | 633516001 | 1.90 | 2.30 | |
| DISC N874237 28,1X36,3X1 | ||||
| 0217 | 4931622624 | 1.80 | 2.18 | |
| HOLDING RING | ||||
| 0224 | 4931396449 | 5.40 | 6.53 | |
| SUPPORT PLATE | ||||
| 0225 | 4931343127 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0226 | 4931343128 | 5.40 | 6.53 | |
| Ball | ||||
| 0227 | 4931911572 | 1.80 | 2.18 | |
| Ball | ||||
| 0228 | 4931944281 | 1.80 | 2.18 | |
| Cylindrical Bolt | ||||
| 0229 | 4931365057 | 5.40 | 6.53 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0234 | 4931387571 | |||
| Spring | ||||
| 0235 | 4931387413 | 1.80 | 2.18 | |
| REDUCTION GEAR | ||||
| 0236 | 611291001 | 9.00 | 10.89 | |
| Clutch Disc | ||||
| 0237 | 4931392751 | 5.40 | 6.53 | |
| Spring Ring | ||||
| 0238 | 4931945764 | 5.40 | 6.53 | |
| BRAKE RING | ||||
| 0248 | 4931392465 | 8.09 | 9.79 | |
| WOBBLE DRIVE | ||||
| 0340 | 201240003 | 50.69 | 61.33 | |
| REDUCT, GEAR SHAFT | ||||
| 0341 | 611284001 | 17.42 | 21.08 | |
| PRESSURE SPRING | ||||
| 0346 | 4931396545 | 1.80 | 2.18 | |
| COUPLING SLEEVE | ||||
| 0347 | 611289001 | 9.00 | 10.89 | |
| WOBBLE DRIVE | ||||
| 0348 | 4931387623 | 14.40 | 17.42 | |
| REDUCT GEAR WHEEL | ||||
| 0350 | 4931453861 | 9.91 | 11.99 | |
| BALL BEARING | ||||
| 0351 | 4931624661 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0353 | 4931387620 | 1.80 | 2.18 | |
| SWITCH HANDLE | ||||
| 0354 | 304036001 | 9.37 | 11.34 | |
| SPINDELHOES | ||||
| 0444 | 201223003 | 102.96 | 124.58 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Carrying Case | ||||
| 0700 | 4931415325 | 30.10 | 36.42 | |
| Zijhandgreep | ||||
| 0705 | 4932373725 | 17.60 | 21.30 | |
| MAINTENANCE SET | ||||
| 1200 | 4931433269 | 63.36 | 76.67 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931387588 | 7.20 | 8.71 | |
| FELT | ||||
| 1202 | 4931387563 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1203 | 4931307423 | 5.40 | 6.53 | |
| SEAL RING N874724 30X37X4 | ||||
| 1206 | 4931623885 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1207 | 4931624655 | 5.40 | 6.53 | |
| SEAL | ||||
| 1208 | 4931387457 | 1.80 | 2.18 | |
| O-ring | ||||
| 1209 | 561994001 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1209 | 4931624533 | 1.73 | 2.09 | |
| O-RING | ||||
| 1210 | 4931624644 | 1.80 | 2.18 | |
| O-RING N874701 25X2 | ||||
| 1212 | 4931624381 | 1.80 | 2.18 | |
| SCREW | ||||
| 1214 | 4931624658 | 1.80 | 2.18 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1217 | 4931624493 | 5.40 | 6.53 | |
| O-RING | ||||
| 1218 | 562597001 | 3.60 | 4.36 | |
| THRUST COLLAR | ||||
| 1219 | 4931387479 | 4.49 | 5.43 | |
| SEAL RING N874701 25X2 | ||||
| 1220 | 4931624391 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| SLEEVE | ||||
| 1223 | 4931387436 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1224 | 4931623220 | 5.40 | 6.53 | |
| RUBBER STOP | ||||
| 1225 | 562578001 | 5.40 | 6.53 | |
| CAP | ||||
| 1226 | 4931343123 | 5.40 | 6.53 | |
