Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000387471 ( PH26X )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

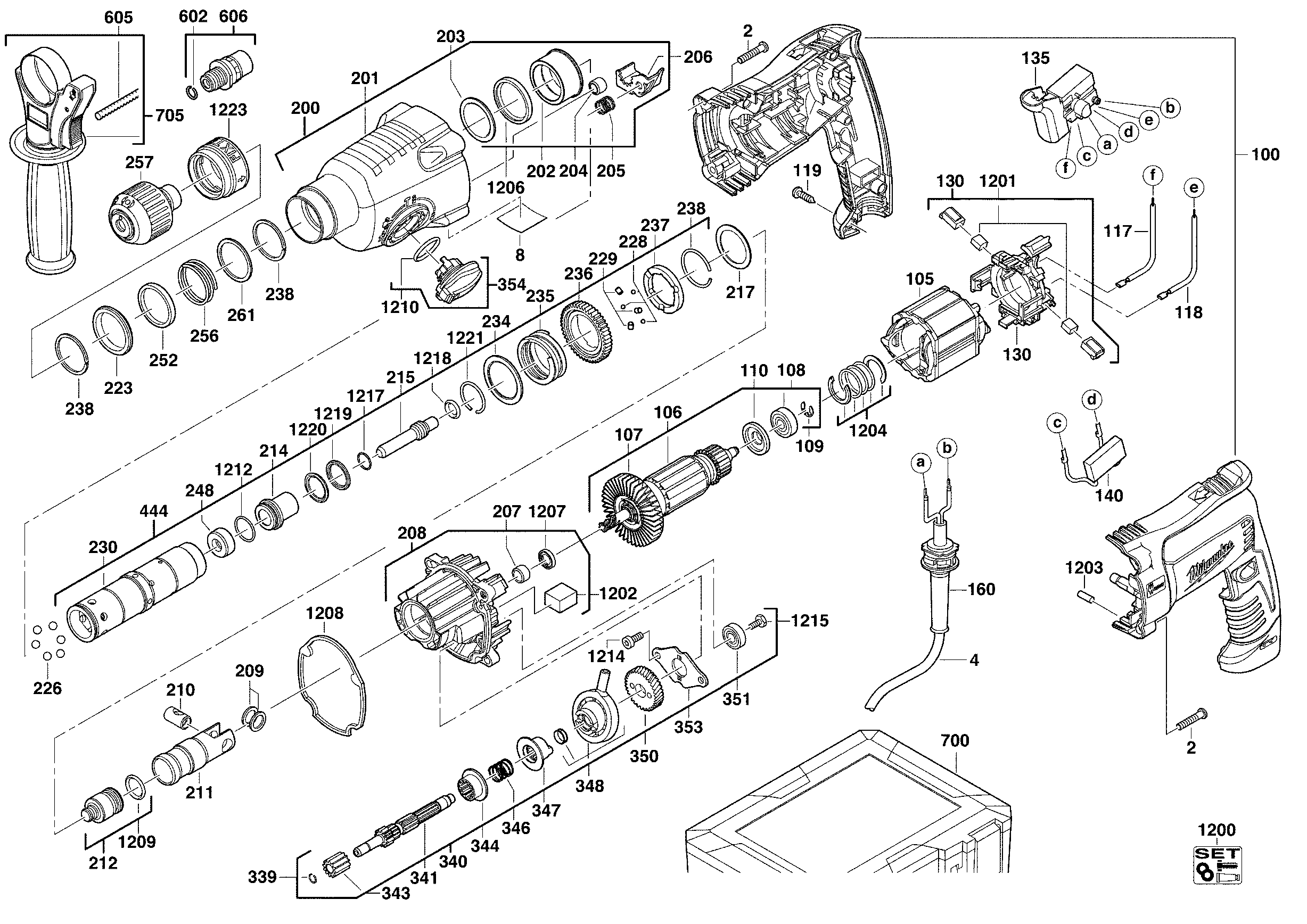

Tekeningen van de Milwaukee 4000387471 ( PH26X )
Onderdelen lijst van de Milwaukee 4000387471 ( PH26X )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0002 | 661288001 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931302112 | 12.60 | 15.25 | |
| RATING PLATE | ||||
| 0008 | 4931409431 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0100 | 201242003 | 30.10 | 36.42 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426176 | 23.76 | 28.75 | |
| ARMATURE | ||||
| 0106 | 741539002 | 46.86 | 56.70 | |
| FAN | ||||
| 0107 | 4931408165 | 4.49 | 5.43 | |
| Ball Bearing | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| WASHER | ||||
| 0109 | 4931621834 | 1.80 | 2.18 | |
| INSULATING DISC | ||||
| 0110 | 4931387434 | 4.49 | 5.43 | |
| WIRE | ||||
| 0117 | 4931624651 | 1.80 | 2.18 | |
| WIRE | ||||
| 0118 | 4931624651 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0119 | 4931624515 | 1.80 | 2.18 | |
| CLAMPING RING | ||||
| 0130 | 302393010 | 15.84 | 19.17 | |
| SWITCH | ||||
| 0135 | 760251020 | 25.15 | 30.43 | |
| Capacitor | ||||
| 0140 | 4931311062 | 4.49 | 5.43 | |
| PROTECTING COVER | ||||
| 0160 | 4931393422 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0200 | 201220008 | 38.02 | 46.00 | |
| GEAR BOX black | ||||
| 0201 | 4931387404 | 10.80 | 13.07 | |
| SINTERED BEARING | ||||
| 0202 | 692727001 | 12.60 | 15.25 | |
| COMPENSATING WASHER | ||||
| 0203 | 4931387578 | 1.80 | 2.18 | |
| NEEDLE BEARING | ||||
| 0204 | 4931453736 | 3.78 | 4.57 | |
| PRESSURE SPRING | ||||
| 0205 | 4931396432 | 5.40 | 6.53 | |
| PLATE | ||||
| 0206 | 4931448985 | 5.40 | 6.53 | |
| NEEDLE BEARING | ||||
| 0207 | 4931219424 | 3.60 | 4.36 | |
| BEARING END PLATE | ||||
| 0208 | 201235004 | 31.68 | 38.33 | |
| WASHER | ||||
| 0209 | 4931365112 | 1.80 | 2.18 | |
| CYLINDRICAL BOLT | ||||
| 0210 | 4931436807 | 7.20 | 8.71 | |
| CYLINDER | ||||
| 0211 | 692717001 | 18.80 | 22.75 | |
| PERC, BODY W SEAL | ||||
| 0212 | 201233002 | 20.59 | 24.91 | |
| SLEEVE | ||||
| 0214 | 692722001 | 9.00 | 10.89 | |
| SNAP DIE | ||||
| 0215 | 692723001 | 16.20 | 19.60 | |
| DISC N874237 28,1X36,3X1 | ||||
| 0217 | 4931622624 | 1.80 | 2.18 | |
| STOP WASHER | ||||
| 0223 | 692726001 | 5.40 | 6.53 | |
| Ball | ||||
| 0226 | 4931805437 | 1.80 | 2.18 | |
| Ball | ||||
| 0228 | 4931944281 | 1.80 | 2.18 | |
| Cylindrical Bolt | ||||
| 0229 | 4931365057 | 5.40 | 6.53 | |
| SPINDLE SLEEVE | ||||
| 0230 | 692720001 | 51.14 | 61.88 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0234 | 4931387571 | |||
| Spring | ||||
| 0235 | 4931387413 | 1.80 | 2.18 | |
| REDUCTION GEAR | ||||
| 0236 | 611291001 | 9.00 | 10.89 | |
| Clutch Disc | ||||
| 0237 | 4931392751 | 5.40 | 6.53 | |
| Spring Ring | ||||
| 0238 | 4931945764 | 5.40 | 6.53 | |
| STOP WASHER | ||||
| 0248 | 692724001 | 9.00 | 10.89 | |
| Sleeve | ||||
| 0252 | 4931382921 | 5.40 | 6.53 | |
| SPRING | ||||
| 0256 | 692737001 | 4.49 | 5.43 | |
| Adapter voor PH 26, FIXTEC - SDS-plus | ||||
| 0257 | 4932352299 | 20.49 | 24.79 | |
| WASHER | ||||
| 0261 | 4931623234 | 1.80 | 2.18 | |
| Spring Ring | ||||
| 0339 | 4931624260 | 5.40 | 6.53 | |
| WOBBLE DRIVE | ||||
| 0340 | 201240003 | 50.69 | 61.33 | |
| GEAR SHAFT | ||||
| 0341 | 611286001 | 15.84 | 19.17 | |
| GEAR WHEEL 12Z | ||||
| 0343 | 4931387444 | 1.80 | 2.18 | |
| INTERN,GEARED WHEEL | ||||
| 0344 | 611288001 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0346 | 4931396545 | 1.80 | 2.18 | |
| COUPLING SLEEVE | ||||
| 0347 | 611289001 | 9.00 | 10.89 | |
| WOBBLE DRIVE | ||||
| 0348 | 4931387623 | 14.40 | 17.42 | |
| REDUCT GEAR WHEEL | ||||
| 0350 | 4931453861 | 9.91 | 11.99 | |
| BALL BEARING | ||||
| 0351 | 4931624661 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0353 | 4931387620 | 1.80 | 2.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0354 | 4931387439 | |||
| SPINDEL | ||||
| 0444 | 201223004 | 79.20 | 95.83 | |
| RING SPRING | ||||
| 0602 | 4931302074 | 4.49 | 5.43 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| CHUCK ADAPTER | ||||
| 0606 | 4931392452 | 15.84 | 19.17 | |
| Carrying Case | ||||
| 0700 | 4931415325 | 30.10 | 36.42 | |
| Zijhandgreep | ||||
| 0705 | 4932373725 | 17.60 | 21.30 | |
| MAINTENANCE SET | ||||
| 1200 | 4931433268 | 63.36 | 76.67 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931387588 | 7.20 | 8.71 | |
| FELT | ||||
| 1202 | 4931387563 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1203 | 4931307423 | 5.40 | 6.53 | |
| SEAL RING N874724 30X37X4 | ||||
| 1206 | 4931623885 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1207 | 4931624655 | 5.40 | 6.53 | |
| SEAL | ||||
| 1208 | 4931387457 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1209 | 4931624533 | 1.73 | 2.09 | |
| O-RING | ||||
| 1210 | 4931624644 | 1.80 | 2.18 | |
| O-RING N874701 25X2 | ||||
| 1212 | 4931624381 | 1.80 | 2.18 | |
| SCREW | ||||
| 1214 | 4931624658 | 1.80 | 2.18 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1217 | 4931624493 | 5.40 | 6.53 | |
| O-RING | ||||
| 1218 | 562597001 | 3.60 | 4.36 | |
| THRUST COLLAR | ||||
| 1219 | 4931387479 | 4.49 | 5.43 | |
| SEAL RING N874701 25X2 | ||||
| 1220 | 4931624391 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| Sleeve | ||||
| 1223 | 4931379022 | 5.40 | 6.53 | |
