Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000396421 ( PH30POWERX )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

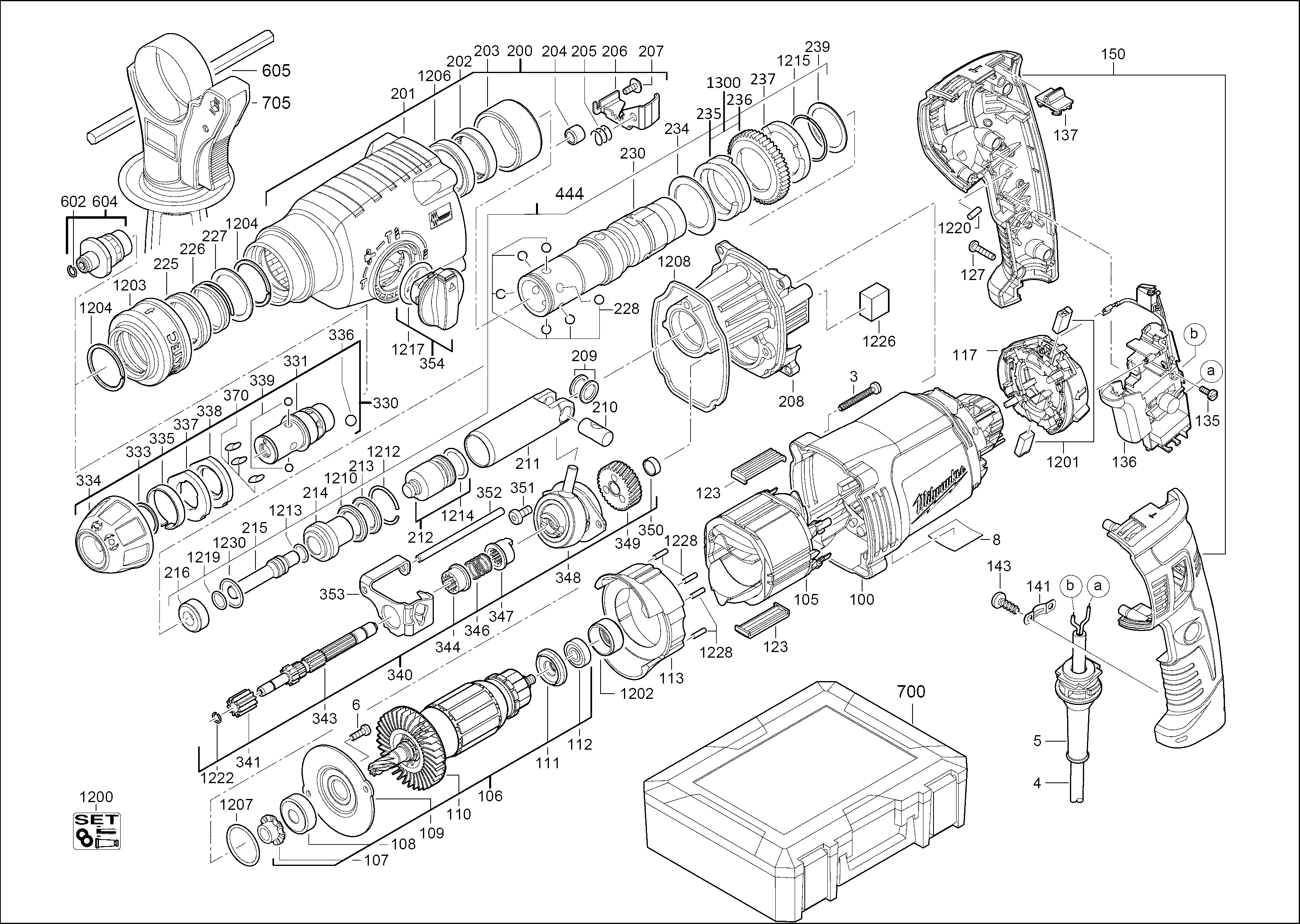

Tekeningen van de Milwaukee 4000396421 ( PH30POWERX )
Onderdelen lijst van de Milwaukee 4000396421 ( PH30POWERX )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0003 | 4931624616 | 1.80 | 2.18 | |
| Connection Cable | ||||
| 0004 | 4931623857 | 12.60 | 15.25 | |
| PROTECTING COVER | ||||
| 0005 | 4931393422 | 5.40 | 6.53 | |
| SCREW | ||||
| 0006 | 4931624581 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0008 | 4931455681 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0100 | 4931396317 | 19.01 | 23.00 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442731 | 31.68 | 38.33 | |
| ARMATURE | ||||
| 0106 | 4931442664 | 79.20 | 95.83 | |
| GROOV, BALL BEARING | ||||
| 0108 | 4931396556 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0109 | 4931396325 | 4.49 | 5.43 | |
| FAN | ||||
| 0110 | 4931342793 | 5.40 | 6.53 | |
| INSULATING DISC | ||||
| 0111 | 4931396442 | 4.49 | 5.43 | |
| Ball Bearing | ||||
| 0112 | 4931902888 | 9.00 | 10.89 | |
| AIR DEFLECTOR RING | ||||
| 0113 | 4931396534 | 3.60 | 4.36 | |
| SET COLLAR | ||||
| 0117 | 4931396546 | 22.18 | 26.84 | |
| CENTERING LEDGE | ||||
| 0123 | 4931342808 | 5.40 | 6.53 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| SCREW | ||||
| 0135 | 4931621772 | 1.80 | 2.18 | |
| SPEED GOVERNOR | ||||
| 0136 | 4931396361 | 64.94 | 78.58 | |
| SLIDER | ||||
| 0137 | 4931396368 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0141 | 4931256500 | 5.40 | 6.53 | |
| SCREW | ||||
| 0143 | 4931624538 | 1.80 | 2.18 | |
| HANDLE SET | ||||
| 0150 | 4931396450 | 20.59 | 24.91 | |
| GEAR BOX | ||||
| 0200 | 4931396375 | 41.18 | 49.83 | |
| GEAR BOX | ||||
| 0201 | 4931396305 | 11.69 | 14.14 | |
| NEEDLE BUSH | ||||
| 0202 | 4931331760 | 5.40 | 6.53 | |
| BEARING | ||||
| 0203 | 4931396373 | 9.00 | 10.89 | |
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0204 | 4931933756 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0205 | 4931396432 | 5.40 | 6.53 | |
| LOCKING PLATE | ||||
| 0206 | 4931396385 | 5.40 | 6.53 | |
| SCREW | ||||
| 0207 | 4931396462 | 1.80 | 2.18 | |
| BEARING END PLATE | ||||
| 0208 | 4931396314 | 39.60 | 47.92 | |
| WASHER | ||||
| 0209 | 4931365112 | 1.80 | 2.18 | |
| CYLINDRICAL BOLT | ||||
| 0210 | 4931396336 | 5.40 | 6.53 | |
| CYLINDER | ||||
| 0211 | 4931396541 | 16.20 | 19.60 | |
| PERC, BODY W SEAL | ||||
| 0212 | 4931455431 | 38.02 | 46.00 | |
| THRUST COLLAR | ||||
| 0213 | 4931396548 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0214 | 4931409779 | 14.40 | 17.42 | |
| SNAP DIE | ||||
| 0215 | 4931396428 | 11.69 | 14.14 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0216 | 4931396427 | |||
| RING STOP | ||||
| 0225 | 4931409754 | 5.40 | 6.53 | |
| SPRING | ||||
| 0226 | 692737001 | 4.49 | 5.43 | |
| WASHER | ||||
| 0227 | 4931624257 | 1.80 | 2.18 | |
| Ball | ||||
| 0228 | 4931805437 | 1.80 | 2.18 | |
| Spindle Sleeve | ||||
| 0230 | 4931417458 | 50.69 | 61.33 | |
| WASHER | ||||
| 0234 | 4931624457 | 1.80 | 2.18 | |
| CLUTCH DISC | ||||
| 0237 | 4931396339 | 5.40 | 6.53 | |
| Washer | ||||
| 0239 | 4931624639 | 1.80 | 2.18 | |
| ADAPTER | ||||
| 0330 | 4931384684 | 45.94 | 55.59 | |
| ADAPTER | ||||
| 0331 | 4931409763 | 12.60 | 15.25 | |
| Spring Ring | ||||
| 0333 | 4931622874 | 5.40 | 6.53 | |
| Set Sleeve | ||||
| 0334 | 4931384681 | 4.49 | 5.43 | |
| Spring | ||||
| 0335 | 4931321064 | 5.40 | 6.53 | |
| Ball | ||||
| 0336 | 4931911572 | 1.80 | 2.18 | |
| Jumper Ring | ||||
| 0337 | 4931343034 | 4.49 | 5.43 | |
| Spacer | ||||
| 0338 | 4931343057 | 5.40 | 6.53 | |
| Ball | ||||
| 0339 | 4931805413 | 1.80 | 2.18 | |
| REDUCT, GEAR SHAFT | ||||
| 0340 | 4931396444 | 99.79 | 120.75 | |
| Sprocket | ||||
| 0341 | 4931375873 | 5.40 | 6.53 | |
| REDUCT, GEAR SHAFT | ||||
| 0343 | 4931417721 | 17.11 | 20.70 | |
| INTERN,GEARED WHEEL | ||||
| 0344 | 4931375874 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0346 | 4931396545 | 1.80 | 2.18 | |
| COUPLING SLEEVE | ||||
| 0347 | 4931396329 | 14.40 | 17.42 | |
| WOBBLE bearing | ||||
| 0348 | 4931396522 | 34.85 | 42.17 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0349 | 4931426238 | |||
| DISTANCE SLEEVE | ||||
| 0350 | 4931396369 | 3.60 | 4.36 | |
| SCREW | ||||
| 0351 | 4931624678 | 1.80 | 2.18 | |
| CYLINDER PIN | ||||
| 0352 | 4931624471 | 5.40 | 6.53 | |
| Sliding Switch | ||||
| 0353 | 4931396384 | 6.31 | 7.64 | |
| SWITCH HANDLE | ||||
| 0354 | 4931396347 | 16.20 | 19.60 | |
| Holding-down Device | ||||
| 0370 | 4931396400 | 5.40 | 6.53 | |
| SPINDLE SLEEVE | ||||
| 0444 | 4931407935 | 104.54 | 126.49 | |
| RING SPRING | ||||
| 0602 | 4931302074 | 4.49 | 5.43 | |
| CHUCK ADAPTER | ||||
| 0604 | 4931392452 | 15.84 | 19.17 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Carrying Case | ||||
| 0700 | 4931415325 | 30.10 | 36.42 | |
| HANDLE | ||||
| 0705 | 4931392747 | 26.93 | 32.59 | |
| MAINTENANCE SET | ||||
| 1200 | 4931396419 | 66.53 | 80.50 | |
| Carbon Brush Set | ||||
| 1201 | 4931396547 | 14.40 | 17.42 | |
| Rubber Sleeve | ||||
| 1202 | 4931396532 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 1203 | 4931396445 | 5.40 | 6.53 | |
| Spring Ring | ||||
| 1204 | 4931945764 | 5.40 | 6.53 | |
| SEAL RING D 3760 AS 22X35X7 | ||||
| 1206 | 4931624259 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1207 | 4931623961 | 5.40 | 6.53 | |
| Seal | ||||
| 1208 | 4931396374 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1210 | 4931396461 | 5.40 | 6.53 | |
| RING | ||||
| 1212 | 4931623636 | 5.40 | 6.53 | |
| O-RING | ||||
| 1213 | 562597001 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 1214 | 4931396459 | 5.40 | 6.53 | |
| Spring Ring | ||||
| 1215 | 4931384919 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1217 | 4931624476 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1219 | 4931624493 | 5.40 | 6.53 | |
| RUBBER STOP | ||||
| 1220 | 562578001 | 5.40 | 6.53 | |
| Spring Ring | ||||
| 1222 | 4931624260 | 5.40 | 6.53 | |
| FELT | ||||
| 1226 | 4931387563 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1228 | 4931332524 | 5.40 | 6.53 | |
| O-RING N874701 25X2 | ||||
| 1230 | 4931624381 | 1.80 | 2.18 | |
| REPAIR KIT | ||||
| 1300 | 4931432150 | 23.76 | 28.75 | |
