Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000415756 ( PLH20 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

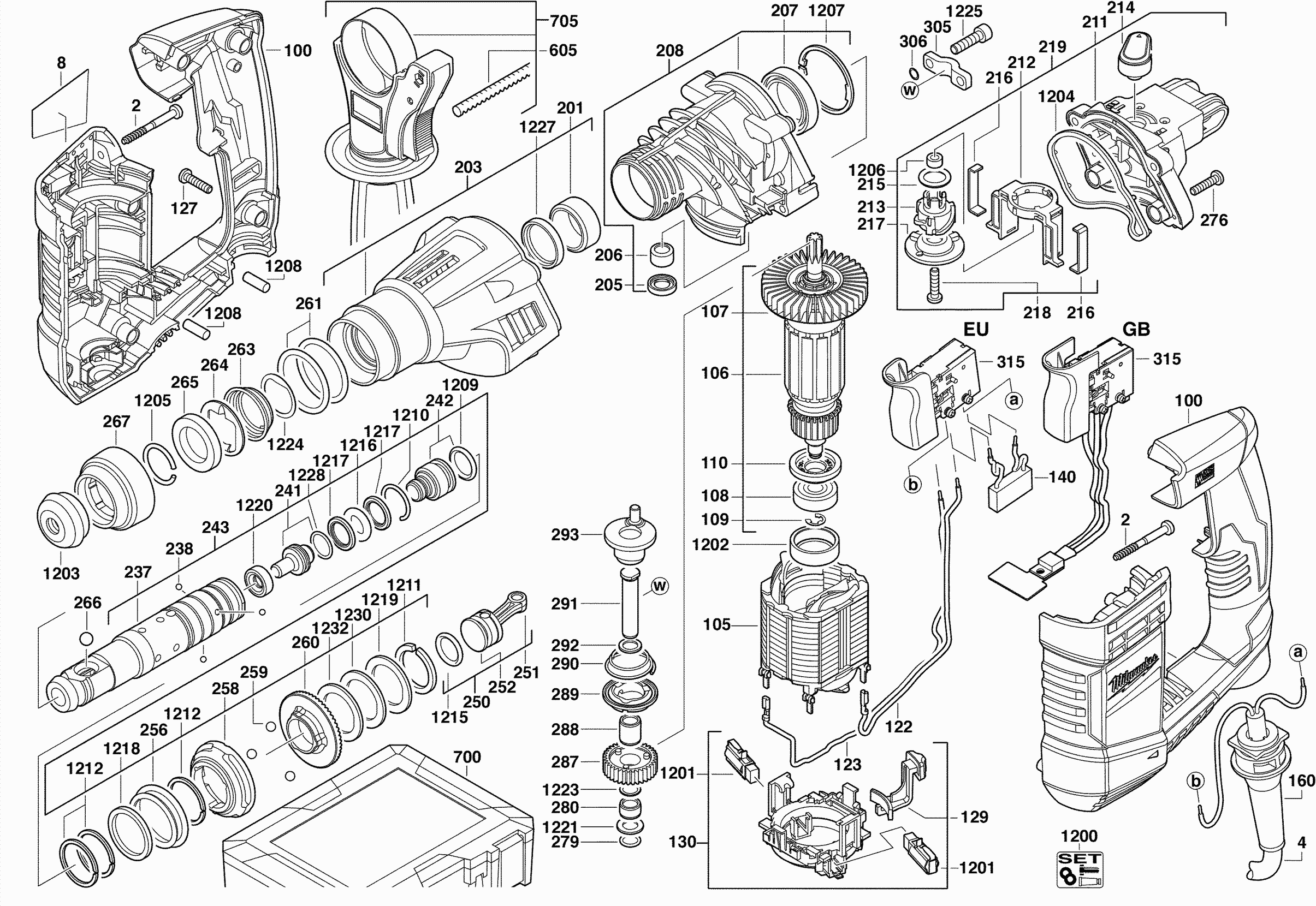

Tekeningen van de Milwaukee 4000415756 ( PLH20 )
Onderdelen lijst van de Milwaukee 4000415756 ( PLH20 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW | ||||
| 0002 | 4931408155 | 1.80 | 2.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0008 | 4931415758 | |||
| Housing | ||||
| 0100 | 4931408075 | 22.18 | 26.84 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0105 | 4931426193 | |||
| ARMATURE | ||||
| 0106 | 4931426333 | 52.27 | 63.25 | |
| FAN | ||||
| 0107 | 4931408165 | 4.49 | 5.43 | |
| Ball Bearing | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| WASHER | ||||
| 0109 | 4931621834 | 1.80 | 2.18 | |
| INSULATING DISC | ||||
| 0110 | 4931387434 | 4.49 | 5.43 | |
| WIRE | ||||
| 0122 | 4931624675 | 4.49 | 5.43 | |
| WIRE | ||||
| 0123 | 4931624676 | 4.49 | 5.43 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| LEVER | ||||
| 0129 | 4931408069 | 4.49 | 5.43 | |
| SET COLLAR | ||||
| 0130 | 4931408083 | 17.42 | 21.08 | |
| Capacitor | ||||
| 0140 | 4931311062 | 4.49 | 5.43 | |
| PROTECTING COVER | ||||
| 0160 | 4931393422 | 5.40 | 6.53 | |
| NEEDLE BUSH | ||||
| 0201 | 4931624705 | 7.20 | 8.71 | |
| GEAR BOX INSULATION | ||||
| 0203 | 4931408144 | 17.42 | 21.08 | |
| SEAL RING | ||||
| 0205 | 4931624655 | 5.40 | 6.53 | |
| NEEDLE BEARING | ||||
| 0206 | 4931219424 | 3.60 | 4.36 | |
| BALL BEARING | ||||
| 0207 | 4931408051 | 12.60 | 15.25 | |
| GEAR BOX | ||||
| 0208 | 4931408078 | 49.10 | 59.41 | |
| Housing Cover | ||||
| 0211 | 4931408065 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0212 | 4931408090 | 4.49 | 5.43 | |
| PIVOT | ||||
| 0213 | 4931408093 | 4.49 | 5.43 | |
| LEVER | ||||
| 0214 | 4931408092 | 4.49 | 5.43 | |
| O-RING | ||||
| 0215 | 4931624699 | 1.80 | 2.18 | |
| FASTENING BOW | ||||
| 0216 | 4931408111 | 4.49 | 5.43 | |
| DISC | ||||
| 0217 | 4931408166 | 4.49 | 5.43 | |
| GEAR BOX COVER | ||||
| 0219 | 4931408087 | 19.01 | 23.00 | |
| SPINDLE SLEEVE | ||||
| 0237 | 4931417459 | 49.10 | 59.41 | |
| Ball | ||||
| 0238 | 4931944281 | 1.80 | 2.18 | |
| SNAP DIE | ||||
| 0241 | 4931408045 | 16.20 | 19.60 | |
| PERCUSSION BODY | ||||
| 0242 | 4931408046 | 14.40 | 17.42 | |
| SPINDLE SLEEVE | ||||
| 0243 | 4931408019 | 114.05 | 138.00 | |
| PISTON COMPL, | ||||
| 0250 | 4931408047 | 15.84 | 19.17 | |
| CONNECTING ROD | ||||
| 0251 | 4931408168 | 5.40 | 6.53 | |
| PISTON | ||||
| 0252 | 4931408167 | 9.00 | 10.89 | |
| SPRING | ||||
| 0256 | 4931408011 | 1.80 | 2.18 | |
| CLUTCH DISC | ||||
| 0258 | 4931408113 | 5.40 | 6.53 | |
| Ball | ||||
| 0259 | 4931805413 | 1.80 | 2.18 | |
| WORM GEAR WHEEL | ||||
| 0260 | 4931408025 | 9.00 | 10.89 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0261 | 4931624711 | |||
| PRESSURE SPRING | ||||
| 0263 | 4931343128 | 5.40 | 6.53 | |
| SUPPORT PLATE | ||||
| 0264 | 4931343127 | 5.40 | 6.53 | |
| HOLDING RING | ||||
| 0265 | 4931396449 | 5.40 | 6.53 | |
| Ball | ||||
| 0266 | 4931911572 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 0267 | 4931387436 | 5.40 | 6.53 | |
| SCREW | ||||
| 0276 | 4931624679 | 1.80 | 2.18 | |
| O-RING | ||||
| 0279 | 4931624712 | 1.80 | 2.18 | |
| NEEDLE CAGE | ||||
| 0280 | 4931408082 | 4.49 | 5.43 | |
| GEAR | ||||
| 0287 | 4931408140 | 17.11 | 20.70 | |
| NEEDLE CAGE N874989 K 8X11X13 | ||||
| 0288 | 4931943531 | 4.49 | 5.43 | |
| JUMPER RING | ||||
| 0289 | 4931408032 | 4.49 | 5.43 | |
| SPRING | ||||
| 0290 | 4931408030 | 1.80 | 2.18 | |
| BEARING BOLT | ||||
| 0291 | 4931408169 | 12.60 | 15.25 | |
| WASHER | ||||
| 0292 | 4931408101 | 1.80 | 2.18 | |
| ECCENTRIC SHAFT | ||||
| 0293 | 4931408028 | 10.80 | 13.07 | |
| CLAMPING PIECE | ||||
| 0305 | 4931408145 | 4.49 | 5.43 | |
| WASHER 5,1x8,6x0,8 | ||||
| 0306 | 4931408173 | 1.80 | 2.18 | |
| SWITCH BOARD | ||||
| 0315 | 4931408096 | 17.42 | 21.08 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| CARRYING CASE | ||||
| 0700 | 4931432080 | 45.94 | 55.59 | |
| AUXILIARY HANDLE | ||||
| 0705 | 4931417907 | 13.75 | 16.64 | |
| MAINTENANCE SET | ||||
| 1200 | 4931408159 | 61.78 | 74.75 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931387588 | 7.20 | 8.71 | |
| RUBBER SLEEVE | ||||
| 1202 | 4931254368 | 1.80 | 2.18 | |
| CAP | ||||
| 1203 | 4931343123 | 5.40 | 6.53 | |
| GASKET | ||||
| 1204 | 4931408043 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1205 | 4931623220 | 5.40 | 6.53 | |
| FELT | ||||
| 1206 | 4931408143 | 4.49 | 5.43 | |
| PROTECTION WASHER | ||||
| 1207 | 4931624683 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 1208 | 4931408164 | 4.49 | 5.43 | |
| RING | ||||
| 1209 | 4931408022 | 5.40 | 6.53 | |
| RING | ||||
| 1210 | 4931408088 | 4.49 | 5.43 | |
| RING | ||||
| 1211 | 4931408156 | 5.40 | 6.53 | |
| PROTECTION WASHER | ||||
| 1212 | 4931624709 | 1.80 | 2.18 | |
| O-ring | ||||
| 1215 | 561994001 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1215 | 4931624533 | 1.73 | 2.09 | |
| CORE LIFTER RING | ||||
| 1216 | 4931408020 | 4.49 | 5.43 | |
| CATCH DISC | ||||
| 1217 | 4931408018 | 4.49 | 5.43 | |
| BACKING FLANGE | ||||
| 1218 | 4931408162 | 4.49 | 5.43 | |
| SPACER | ||||
| 1219 | 4931408176 | 4.49 | 5.43 | |
| STOP WASHER | ||||
| 1220 | 4931408015 | 8.09 | 9.79 | |
| BEARING WASHER | ||||
| 1221 | 4931408073 | 1.80 | 2.18 | |
| DISC | ||||
| 1223 | 4931408129 | 4.49 | 5.43 | |
| BACKING FLANGE | ||||
| 1224 | 4931408142 | 4.49 | 5.43 | |
| SCREW M5x25 | ||||
| 1225 | 4931624717 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1227 | 4931624704 | 4.49 | 5.43 | |
| RING | ||||
| 1228 | 4931408021 | 4.49 | 5.43 | |
| SPACER | ||||
| 1230 | 4931408153 | 4.49 | 5.43 | |
| SPACER | ||||
| 1232 | 4931408171 | 4.49 | 5.43 | |
