Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000409587 ( PLH26E )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

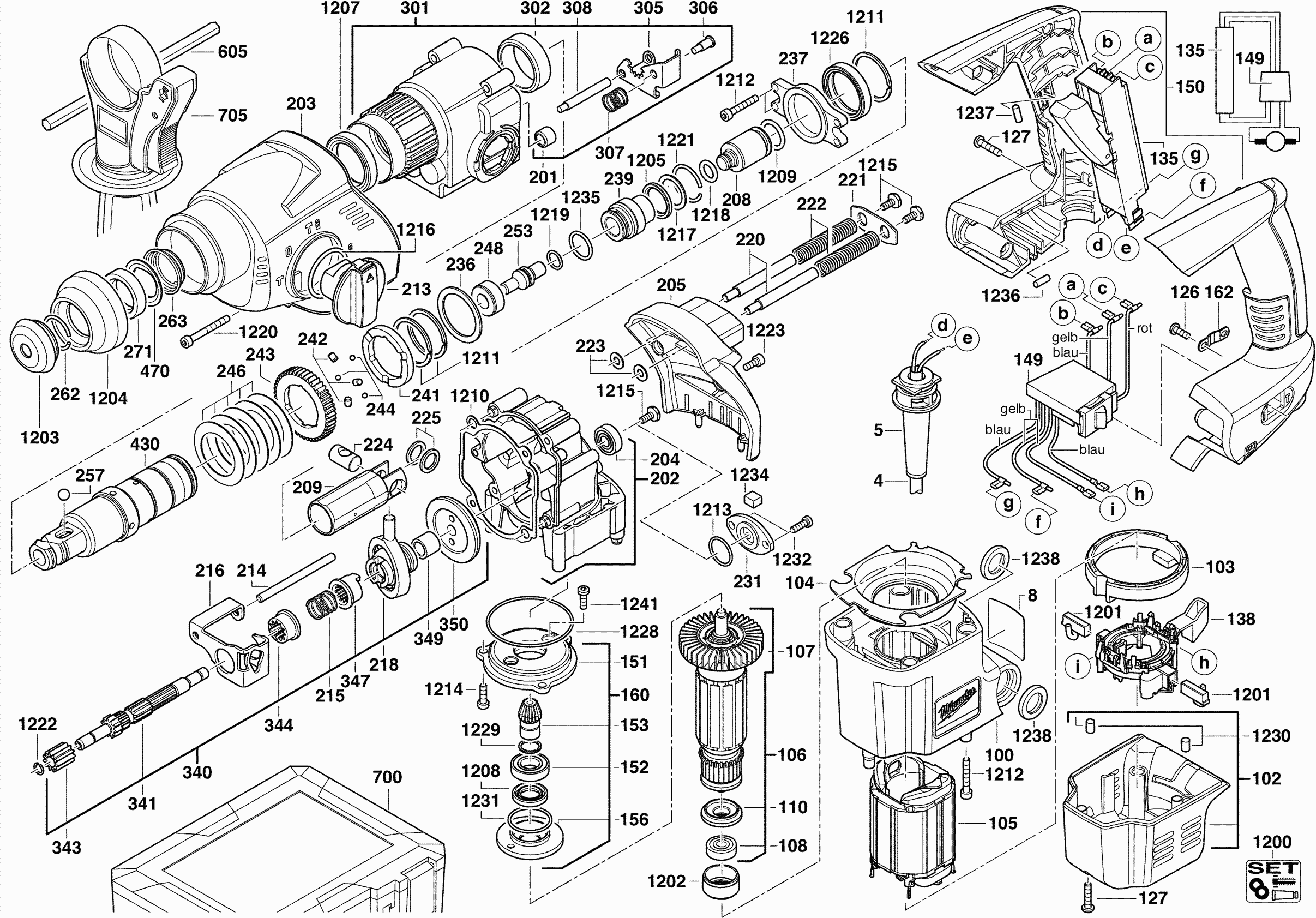

Tekeningen van de Milwaukee 4000409587 ( PLH26E )
Onderdelen lijst van de Milwaukee 4000409587 ( PLH26E )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931302112 | 12.60 | 15.25 | |
| PROTECTING COVER | ||||
| 0005 | 4931392174 | 5.40 | 6.53 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0008 | 4931409589 | |||
| MOTOR HOUSING | ||||
| 0100 | 4931392634 | 12.60 | 15.25 | |
| MOTOR CAP | ||||
| 0102 | 4931392446 | 8.09 | 9.79 | |
| HOLDING-DOWN DEVICE | ||||
| 0103 | 4931384662 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0104 | 4931392636 | 1.80 | 2.18 | |
| NMLB | ||||
| 0105 | 4931426477 | 16.50 | 19.96 | |
| Armature | ||||
| 0106 | 4931426365 | 52.27 | 63.25 | |
| FAN | ||||
| 0107 | 4931408165 | 4.49 | 5.43 | |
| Ball Bearing | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931385658 | 5.40 | 6.53 | |
| SCREW | ||||
| 0126 | 4931624516 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0135 | 4931384668 | 31.68 | 38.33 | |
| Set Collar | ||||
| 0138 | 4931392637 | 15.84 | 19.17 | |
| Electric Element | ||||
| 0149 | 4931384663 | 52.27 | 63.25 | |
| HANDLE COMPL, | ||||
| 0150 | 4931392639 | 17.11 | 20.70 | |
| BEARING END PLATE | ||||
| 0151 | 4931426436 | 17.11 | 20.70 | |
| BALL BEARING D 625 609 ZZ C3LDS | ||||
| 0152 | 4931624278 | 9.00 | 10.89 | |
| PINION | ||||
| 0153 | 4931375884 | 10.80 | 13.07 | |
| BEARING COVER | ||||
| 0156 | 4931409755 | 12.60 | 15.25 | |
| BEARING END PLATE | ||||
| 0160 | 4931400951 | 42.77 | 51.75 | |
| CABLE COLLAR | ||||
| 0162 | 4931256500 | 5.40 | 6.53 | |
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0201 | 4931933756 | 3.60 | 4.36 | |
| GEAR BOX | ||||
| 0202 | 4931400846 | 47.52 | 57.50 | |
| GEAR BOX INSULATION | ||||
| 0203 | 4931392716 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0204 | 681383001 | 9.00 | 10.89 | |
| GEAR COVER | ||||
| 0205 | 4931392717 | 5.40 | 6.53 | |
| PERCUSSION BODY | ||||
| 0208 | 4931392376 | 12.60 | 15.25 | |
| Cylinder | ||||
| 0209 | 4931409751 | 16.20 | 19.60 | |
| Switch Handle | ||||
| 0213 | 4931384621 | 9.00 | 10.89 | |
| CYLINDER PIN | ||||
| 0214 | 4931624279 | 4.49 | 5.43 | |
| SPRING | ||||
| 0215 | 4931365058 | 1.80 | 2.18 | |
| SLIDING SWITCH | ||||
| 0216 | 4931384617 | 5.40 | 6.53 | |
| WOBBLE DRIVE | ||||
| 0218 | 4931387623 | 14.40 | 17.42 | |
| GUIDE BOLT | ||||
| 0220 | 4931384667 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0221 | 4931384669 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0222 | 4931384670 | 4.49 | 5.43 | |
| DISC N874237 5,1X11X0,8 | ||||
| 0223 | 4931909973 | 4.49 | 5.43 | |
| CYLINDRICAL BOLT | ||||
| 0224 | 4931387381 | 5.40 | 6.53 | |
| WASHER | ||||
| 0225 | 4931365112 | 1.80 | 2.18 | |
| BEARING COVER | ||||
| 0231 | 4931392461 | 4.49 | 5.43 | |
| WASHER | ||||
| 0236 | 4931624257 | 1.80 | 2.18 | |
| ENDPLATE | ||||
| 0237 | 4931392455 | 6.31 | 7.64 | |
| CORE LIFTER RING | ||||
| 0239 | 4931409757 | 14.40 | 17.42 | |
| Clutch Disc | ||||
| 0241 | 4931392751 | 5.40 | 6.53 | |
| Cylindrical Bolt | ||||
| 0242 | 4931365057 | 5.40 | 6.53 | |
| SPINDLE GEAR | ||||
| 0243 | 4931407761 | 5.40 | 6.53 | |
| Ball | ||||
| 0244 | 4931944281 | 1.80 | 2.18 | |
| CUP SPRING | ||||
| 0246 | 4931365066 | 5.40 | 6.53 | |
| BRAKE RING | ||||
| 0248 | 4931392465 | 8.09 | 9.79 | |
| ANVIL | ||||
| 0253 | 692590001 | 10.81 | 13.08 | |
| Ball | ||||
| 0257 | 4931911572 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 0262 | 4931623220 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0263 | 4931343128 | 5.40 | 6.53 | |
| HOLDING RING | ||||
| 0271 | 4931384635 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0301 | 4931384632 | 57.02 | 68.99 | |
| NEEDLE BEARING N874989 HK 3012 F | ||||
| 0302 | 4931621944 | 9.00 | 10.89 | |
| LOCKING PLATE | ||||
| 0305 | 4931384618 | 4.49 | 5.43 | |
| GUIDE BOLT | ||||
| 0306 | 4931384619 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0307 | 4931384631 | 4.49 | 5.43 | |
| GUIDE BOLT | ||||
| 0308 | 4931384690 | 4.49 | 5.43 | |
| Reduct. Gear Shaft | ||||
| 0340 | 4931400853 | 72.86 | 88.16 | |
| REDUCT, GEAR SHAFT | ||||
| 0341 | 4931417717 | 17.42 | 21.08 | |
| Sprocket | ||||
| 0343 | 4931375873 | 5.40 | 6.53 | |
| INTERN,GEARED WHEEL | ||||
| 0344 | 4931375874 | 4.49 | 5.43 | |
| COUPLING SLEEVE | ||||
| 0347 | 4931384691 | 9.00 | 10.89 | |
| DISTANCE SLEEVE | ||||
| 0349 | 4931384613 | 4.49 | 5.43 | |
| BEVEL GEAR | ||||
| 0350 | 4931375883 | 16.20 | 19.60 | |
| REPAIR KIT Spindle Sleeve | ||||
| 0430 | 4931394117 | 96.62 | 116.91 | |
| REPAIR KIT | ||||
| 0470 | 4931394116 | 12.60 | 15.25 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| CARRYING CASE | ||||
| 0700 | 4931415335 | 47.52 | 57.50 | |
| HANDLE | ||||
| 0705 | 4931392747 | 26.93 | 32.59 | |
| MAINTENANCE SET | ||||
| 1200 | 4931400959 | 91.87 | 111.16 | |
| NMLB | ||||
| 1201 | 4931392459 | 10.00 | 12.10 | |
| Rubber Sleeve | ||||
| 1202 | 4931396532 | 1.80 | 2.18 | |
| RUBBER CAP | ||||
| 1203 | 4931384687 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 1204 | 4931384634 | 5.40 | 6.53 | |
| SEAL RING N874701 25X2 | ||||
| 1205 | 4931624391 | 5.40 | 6.53 | |
| SEAL RING D 3760 AS 22X35X7 | ||||
| 1207 | 4931624259 | 5.40 | 6.53 | |
| SEAL RING N874724 30X37X4 | ||||
| 1208 | 4931624429 | 5.40 | 6.53 | |
| O-ring | ||||
| 1209 | 561994001 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1209 | 4931624533 | 1.73 | 2.09 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1210 | 4931375894 | |||
| Spring Ring | ||||
| 1211 | 4931945764 | 5.40 | 6.53 | |
| SCREW | ||||
| 1212 | 4931624582 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623912 | 4.49 | 5.43 | |
| SCREW | ||||
| 1214 | 4931624581 | 1.80 | 2.18 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| Seal Ring N874701 25x2 | ||||
| 1216 | 4931624353 | 5.40 | 6.53 | |
| THRUST COLLAR | ||||
| 1217 | 4931387479 | 4.49 | 5.43 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1218 | 4931387380 | |||
| SEAL RING | ||||
| 1219 | 4931624493 | 5.40 | 6.53 | |
| SCREW | ||||
| 1220 | 4931624583 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| Spring Ring | ||||
| 1222 | 4931624260 | 5.40 | 6.53 | |
| DAMPING RING | ||||
| 1226 | 4931365188 | 4.49 | 5.43 | |
| O-RING N874701 52X1,5 | ||||
| 1228 | 4931623198 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1229 | 4931622084 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1230 | 4931409768 | 5.40 | 6.53 | |
| SEAL RING N874701 25X2 | ||||
| 1231 | 4931624351 | 4.49 | 5.43 | |
| SCREW D 912 M 5X12 SSI | ||||
| 1232 | 4931621743 | 1.80 | 2.18 | |
| FELT | ||||
| 1234 | 4931375508 | 4.49 | 5.43 | |
| O-RING N874701 25X2 | ||||
| 1235 | 4931624381 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 1236 | 4931307423 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1238 | 4931624170 | 5.40 | 6.53 | |
| SCREW | ||||
| 1241 | 4931267225 | 1.80 | 2.18 | |
