Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000400751 ( PLH26XE )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

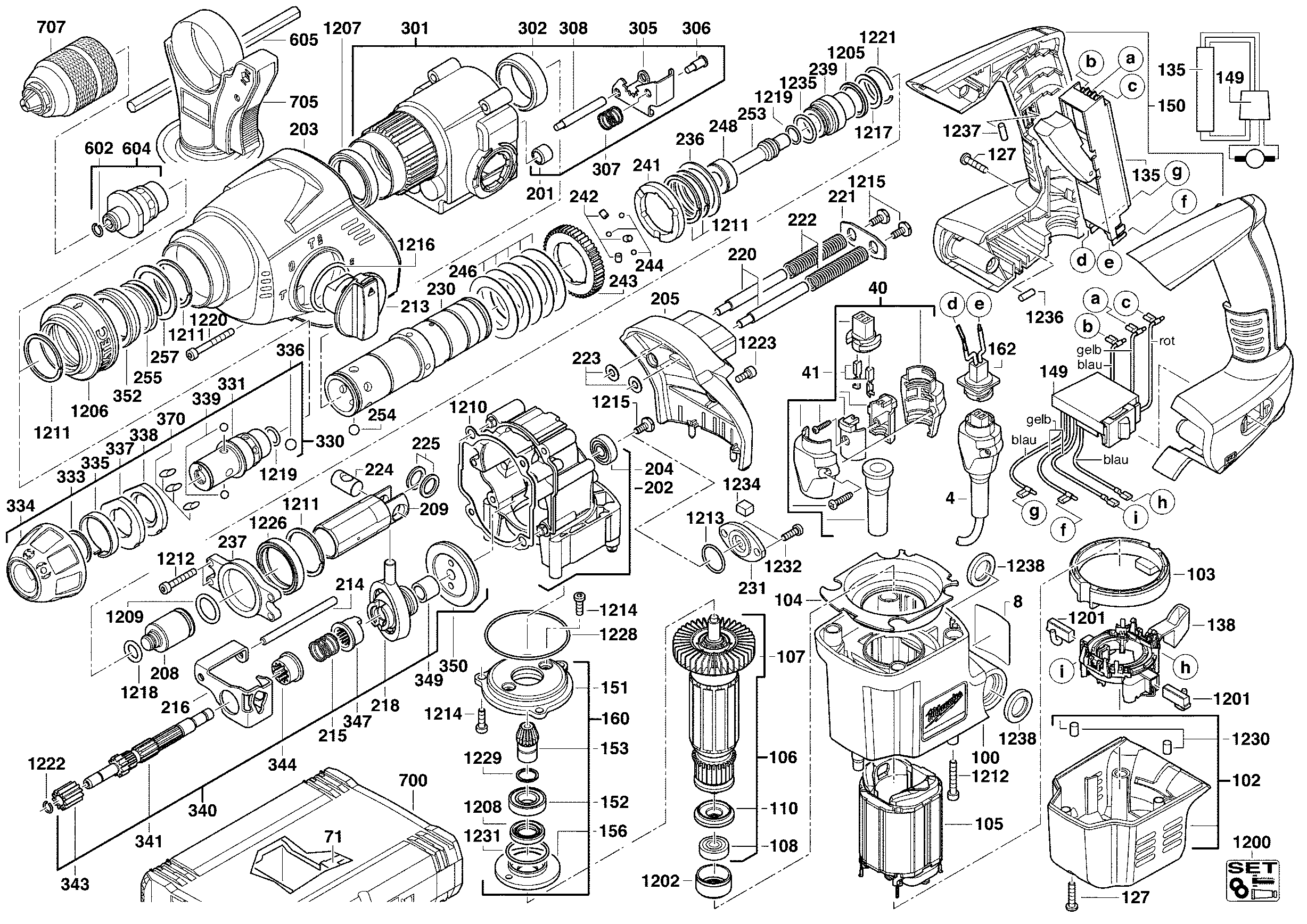

Tekeningen van de Milwaukee 4000400751 ( PLH26XE )
Onderdelen lijst van de Milwaukee 4000400751 ( PLH26XE )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CABLE | ||||
| 0004 | 4931624186 | 23.00 | 27.83 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0008 | 4931400754 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0040 | 4931380761 | |||
| Cable socket p./10 | ||||
| 0041 | 4931380763 | 25.34 | 30.66 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0071 | 4931392099 | |||
| MOTOR HOUSING | ||||
| 0100 | 4931392634 | 12.60 | 15.25 | |
| MOTOR CAP | ||||
| 0102 | 4931392446 | 8.09 | 9.79 | |
| HOLDING-DOWN DEVICE | ||||
| 0103 | 4931384662 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0104 | 4931392636 | 1.80 | 2.18 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931396247 | 31.68 | 38.33 | |
| FAN | ||||
| 0107 | 4931408165 | 4.49 | 5.43 | |
| Ball Bearing | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931385658 | 5.40 | 6.53 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0135 | 4931384668 | 31.68 | 38.33 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0138 | 4931392648 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 0149 | 4931400755 | |||
| HANDLE COMPL, | ||||
| 0150 | 4931392639 | 17.11 | 20.70 | |
| BEARING END PLATE | ||||
| 0151 | 4931426436 | 17.11 | 20.70 | |
| BALL BEARING D 625 609 ZZ C3LDS | ||||
| 0152 | 4931624278 | 9.00 | 10.89 | |
| REPAIR KIT | ||||
| 0153 | 4931442408 | 33.26 | 40.24 | |
| BEARING COVER | ||||
| 0156 | 4931409755 | 12.60 | 15.25 | |
| BEARING END PLATE | ||||
| 0160 | 4931442407 | 55.00 | 66.55 | |
| PLUG | ||||
| 0162 | 4931364436 | 9.00 | 10.89 | |
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0201 | 4931933756 | 3.60 | 4.36 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0202 | 4931384633 | |||
| GEAR BOX INSULATION | ||||
| 0203 | 4931392716 | 9.00 | 10.89 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0204 | 4931623951 | |||
| GEAR COVER | ||||
| 0205 | 4931392717 | 5.40 | 6.53 | |
| PERCUSSION BODY | ||||
| 0208 | 4931392376 | 12.60 | 15.25 | |
| Cylinder | ||||
| 0209 | 4931409751 | 16.20 | 19.60 | |
| Switch Handle | ||||
| 0213 | 4931384621 | 9.00 | 10.89 | |
| CYLINDER PIN | ||||
| 0214 | 4931624279 | 4.49 | 5.43 | |
| SPRING | ||||
| 0215 | 4931365058 | 1.80 | 2.18 | |
| SLIDING SWITCH | ||||
| 0216 | 4931384617 | 5.40 | 6.53 | |
| WOBBLE DRIVE | ||||
| 0218 | 4931387623 | 14.40 | 17.42 | |
| GUIDE BOLT | ||||
| 0220 | 4931384667 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0221 | 4931384669 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0222 | 4931384670 | 4.49 | 5.43 | |
| DISC N874237 5,1X11X0,8 | ||||
| 0223 | 4931909973 | 4.49 | 5.43 | |
| CYLINDRICAL BOLT | ||||
| 0224 | 4931387381 | 5.40 | 6.53 | |
| WASHER | ||||
| 0225 | 4931365112 | 1.80 | 2.18 | |
| SPINDLE SLEEVE | ||||
| 0230 | 4931417400 | 45.94 | 55.59 | |
| BEARING COVER | ||||
| 0231 | 4931392461 | 4.49 | 5.43 | |
| WASHER | ||||
| 0236 | 4931624257 | 1.80 | 2.18 | |
| ENDPLATE | ||||
| 0237 | 4931392455 | 6.31 | 7.64 | |
| CORE LIFTER RING | ||||
| 0239 | 4931409757 | 14.40 | 17.42 | |
| Clutch Disc | ||||
| 0241 | 4931392751 | 5.40 | 6.53 | |
| Cylindrical Bolt | ||||
| 0242 | 4931365057 | 5.40 | 6.53 | |
| SPINDLE GEAR | ||||
| 0243 | 4931407761 | 5.40 | 6.53 | |
| Ball | ||||
| 0244 | 4931944281 | 1.80 | 2.18 | |
| CUP SPRING | ||||
| 0246 | 4931365066 | 5.40 | 6.53 | |
| STOP WASHER | ||||
| 0248 | 4931384607 | 6.31 | 7.64 | |
| SNAP DIE | ||||
| 0253 | 4931384605 | 10.80 | 13.07 | |
| Ball | ||||
| 0254 | 4931805437 | 1.80 | 2.18 | |
| SPRING | ||||
| 0255 | 692737001 | 4.49 | 5.43 | |
| GEAR BOX | ||||
| 0301 | 4931384632 | 57.02 | 68.99 | |
| NEEDLE BEARING N874989 HK 3012 F | ||||
| 0302 | 4931621944 | 9.00 | 10.89 | |
| LOCKING PLATE | ||||
| 0305 | 4931384618 | 4.49 | 5.43 | |
| GUIDE BOLT | ||||
| 0306 | 4931384619 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0307 | 4931384631 | 4.49 | 5.43 | |
| GUIDE BOLT | ||||
| 0308 | 4931384690 | 4.49 | 5.43 | |
| ADAPTER | ||||
| 0330 | 4931384684 | 45.94 | 55.59 | |
| ADAPTER | ||||
| 0331 | 4931409763 | 12.60 | 15.25 | |
| Spring Ring | ||||
| 0333 | 4931622874 | 5.40 | 6.53 | |
| Set Sleeve | ||||
| 0334 | 4931384681 | 4.49 | 5.43 | |
| Spring | ||||
| 0335 | 4931321064 | 5.40 | 6.53 | |
| Ball | ||||
| 0336 | 4931911572 | 1.80 | 2.18 | |
| Jumper Ring | ||||
| 0337 | 4931343034 | 4.49 | 5.43 | |
| Spacer | ||||
| 0338 | 4931343057 | 5.40 | 6.53 | |
| Ball | ||||
| 0339 | 4931805413 | 1.80 | 2.18 | |
| REDUCT. GEAR SHAFT | ||||
| 0340 | 4931442409 | 69.30 | 83.85 | |
| REDUCT, GEAR SHAFT | ||||
| 0341 | 4931417717 | 17.42 | 21.08 | |
| Sprocket | ||||
| 0343 | 4931375873 | 5.40 | 6.53 | |
| INTERN,GEARED WHEEL | ||||
| 0344 | 4931375874 | 4.49 | 5.43 | |
| COUPLING SLEEVE | ||||
| 0347 | 4931384691 | 9.00 | 10.89 | |
| DISTANCE SLEEVE | ||||
| 0349 | 4931384613 | 4.49 | 5.43 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0350 | 4931384614 | |||
| RING STOP | ||||
| 0352 | 4931409754 | 5.40 | 6.53 | |
| Holding-down Device | ||||
| 0370 | 4931396400 | 5.40 | 6.53 | |
| RING SPRING | ||||
| 0602 | 4931302074 | 4.49 | 5.43 | |
| CHUCK ADAPTER | ||||
| 0604 | 4931392452 | 15.84 | 19.17 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 47.85 | 57.90 | |
| HANDLE | ||||
| 0705 | 4931392747 | 26.93 | 32.59 | |
| Snelspanboorhouder 1.5 - 13 - x 20 / 2 sleeve with | ||||
| 0707 | 4932376531 | 53.46 | 64.69 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1201 | 4931392624 | |||
| RUBBER SLEEVE | ||||
| 1202 | 4931351729 | 1.80 | 2.18 | |
| SEAL RING N874701 25X2 | ||||
| 1205 | 4931624391 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 1206 | 4931384682 | 5.40 | 6.53 | |
| SEAL RING D 3760 AS 22X35X7 | ||||
| 1207 | 4931624259 | 5.40 | 6.53 | |
| SEAL RING N874724 30X37X4 | ||||
| 1208 | 4931624429 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1209 | 4931624533 | 1.73 | 2.09 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1210 | 4931375894 | |||
| Spring Ring | ||||
| 1211 | 4931945764 | 5.40 | 6.53 | |
| SCREW D912 M4X25 | ||||
| 1212 | 4931623886 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623912 | 4.49 | 5.43 | |
| SCREW | ||||
| 1214 | 4931267225 | 1.80 | 2.18 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| Seal Ring N874701 25x2 | ||||
| 1216 | 4931624353 | 5.40 | 6.53 | |
| THRUST COLLAR | ||||
| 1217 | 4931387479 | 4.49 | 5.43 | |
| O-RING | ||||
| 1218 | 562597001 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 1219 | 4931624493 | 5.40 | 6.53 | |
| SCREW | ||||
| 1220 | 4931623521 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| Spring Ring | ||||
| 1222 | 4931624260 | 5.40 | 6.53 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1223 | 4931621741 | |||
| DAMPING RING | ||||
| 1226 | 4931365188 | 4.49 | 5.43 | |
| O-RING N874701 52X1,5 | ||||
| 1228 | 4931623198 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1229 | 4931622084 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1230 | 4931409768 | 5.40 | 6.53 | |
| SEAL RING N874701 25X2 | ||||
| 1231 | 4931624351 | 4.49 | 5.43 | |
| SCREW D 912 M 5X12 SSI | ||||
| 1232 | 4931621743 | 1.80 | 2.18 | |
| FELT | ||||
| 1234 | 4931375508 | 4.49 | 5.43 | |
| O-RING N874701 25X2 | ||||
| 1235 | 4931624381 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 1236 | 4931307423 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1238 | 4931624170 | 5.40 | 6.53 | |
