Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000452081 ( PLH28E )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

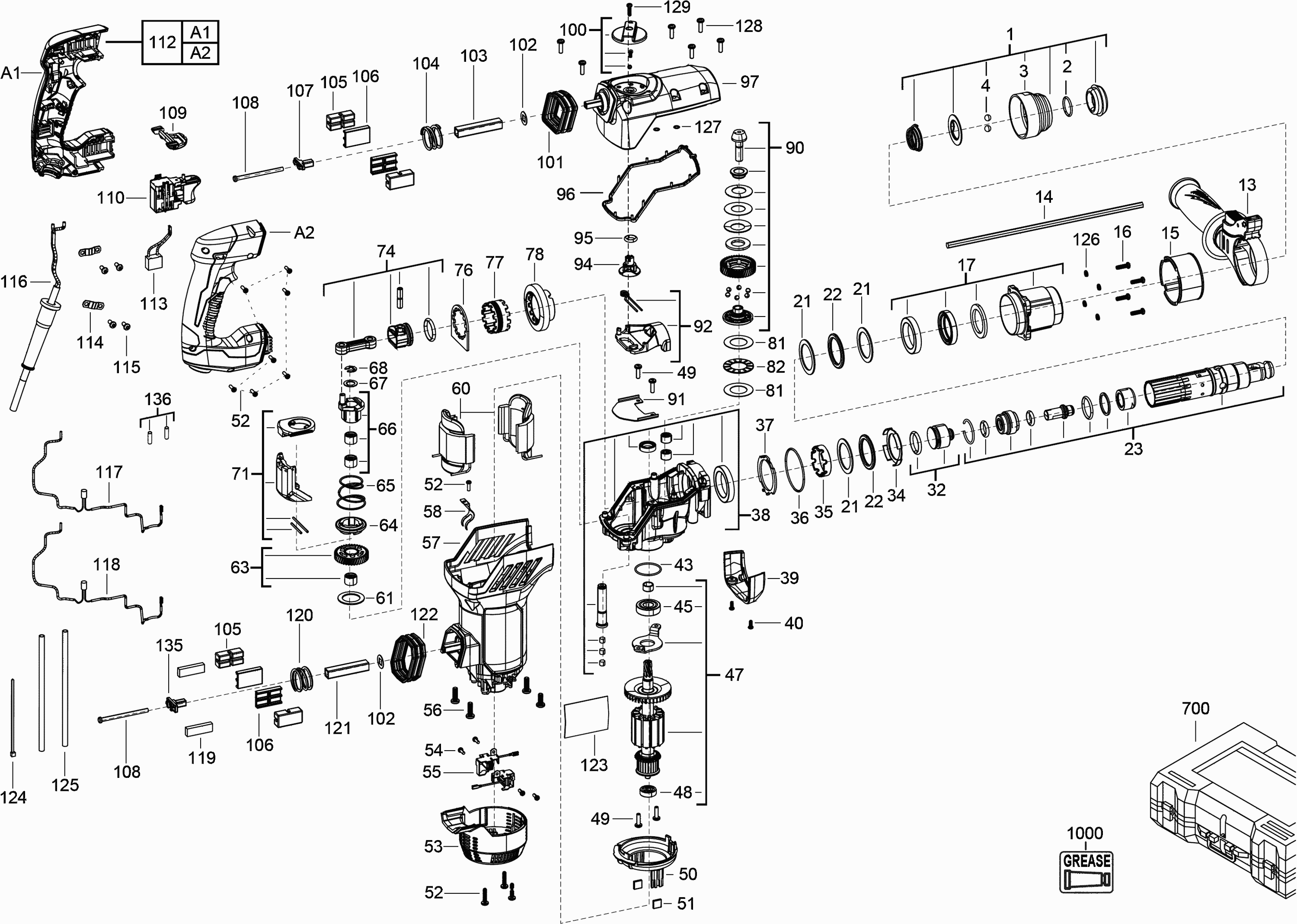

Tekeningen van de Milwaukee 4000452081 ( PLH28E )
Onderdelen lijst van de Milwaukee 4000452081 ( PLH28E )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| COVER CAP SET | ||||
| 0001 | 4931436446 | 25.34 | 30.66 | |
| SPRING RING | ||||
| 0002 | 672631001 | 4.49 | 5.43 | |
| COVER CAP | ||||
| 0003 | 4931436447 | 13.51 | 16.35 | |
| BALL | ||||
| 0004 | 681154001 | 1.80 | 2.18 | |
| Auxiliary Handle | ||||
| 0013 | 4931436368 | 28.51 | 34.50 | |
| DEPTH GAUGE | ||||
| 0014 | 4931384434 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0015 | 4931436369 | 1.80 | 2.18 | |
| SCREW | ||||
| 0016 | 4931435150 | 1.90 | 2.30 | |
| SLEEVE | ||||
| 0017 | 4931436370 | 33.26 | 40.24 | |
| WASHER | ||||
| 0021 | 4931436371 | 1.90 | 2.30 | |
| RUBBER DISC | ||||
| 0022 | 4931436372 | 5.40 | 6.53 | |
| SPINDLE KIT | ||||
| 0023 | 4931436448 | 172.66 | 208.92 | |
| PERCUSSION BODY | ||||
| 0032 | 4931436374 | 33.26 | 40.24 | |
| BUFFER | ||||
| 0034 | 4931436375 | 1.80 | 2.18 | |
| SPINDLE SLEEVE | ||||
| 0035 | 4931436376 | 3.60 | 4.36 | |
| O-RING | ||||
| 0036 | 4931436377 | 1.80 | 2.18 | |
| PLATE | ||||
| 0037 | 4931436378 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0038 | 4931436379 | 72.86 | 88.16 | |
| HOUSING | ||||
| 0039 | 4931436380 | 5.40 | 6.53 | |
| SCREW | ||||
| 0040 | 4931435313 | 1.80 | 2.18 | |
| O-RING | ||||
| 0043 | 4931436381 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0045 | 4931452227 | 5.40 | 6.53 | |
| ARMATURE | ||||
| 0047 | 4931436383 | 79.20 | 95.83 | |
| BALL BEARING | ||||
| 0048 | 4931436119 | 9.00 | 10.89 | |
| SCREW | ||||
| 0049 | 660165015 | 1.80 | 2.18 | |
| AIR DEFLECTOR RING | ||||
| 0050 | 4931436385 | 1.90 | 2.30 | |
| BLOCK | ||||
| 0051 | 4931435034 | 5.40 | 6.53 | |
| SCREW M3,5 Torx 10 | ||||
| 0052 | 660031023 | 1.90 | 2.30 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0053 | 4931436386 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 0054 | 4931436387 | |||
| BRUSH HOLDER with brushes | ||||
| 0055 | 4931436388 | 19.01 | 23.00 | |
| SCREW | ||||
| 0056 | 4931436390 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0057 | 4931436391 | 34.85 | 42.17 | |
| STAMP | ||||
| 0058 | 4931436392 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0060 | 4931436393 | 63.36 | 76.67 | |
| WASHER | ||||
| 0061 | 4931436395 | 1.80 | 2.18 | |
| CRANK WHEEL | ||||
| 0063 | 4931436450 | 15.84 | 19.17 | |
| RING | ||||
| 0064 | 4931436397 | 3.60 | 4.36 | |
| SPRING | ||||
| 0065 | 4931436398 | 1.80 | 2.18 | |
| CRANK WHEEL | ||||
| 0066 | 4931436451 | 53.86 | 65.17 | |
| WASHER | ||||
| 0067 | 4931436400 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 0068 | 4931436401 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0071 | 4931436402 | 15.84 | 19.17 | |
| PISTON | ||||
| 0074 | 4931436403 | 31.68 | 38.33 | |
| HOLDING PLATE | ||||
| 0076 | 4931436404 | 4.49 | 5.43 | |
| INDEXING SLEEVE | ||||
| 0077 | 4931436405 | 7.20 | 8.71 | |
| BEVEL GEAR | ||||
| 0078 | 4931436406 | 25.34 | 30.66 | |
| WASHER | ||||
| 0081 | 4931436407 | 1.90 | 2.30 | |
| NEEDLE BEARING | ||||
| 0082 | 4931436408 | 3.78 | 4.57 | |
| COUPLING | ||||
| 0090 | 4931436409 | 69.70 | 84.34 | |
| STAMP | ||||
| 0091 | 4931436410 | 1.80 | 2.18 | |
| FORK | ||||
| 0092 | 4931436411 | 7.20 | 8.71 | |
| JOINT PIECE | ||||
| 0094 | 4931436412 | 1.90 | 2.30 | |
| O-RING | ||||
| 0095 | 4931436413 | 1.80 | 2.18 | |
| COVER | ||||
| 0096 | 4931448574 | 15.84 | 19.17 | |
| GEAR BOX COVER | ||||
| 0097 | 4931452225 | 17.91 | 21.67 | |
| KNOB | ||||
| 0100 | 4931436416 | 8.09 | 9.79 | |
| RUBBER CAP | ||||
| 0101 | 4931436417 | 5.40 | 6.53 | |
| WASHER | ||||
| 0102 | 4931436418 | 1.90 | 2.30 | |
| GUIDE SLEEVE | ||||
| 0103 | 4931436419 | 5.40 | 6.53 | |
| SPRING | ||||
| 0104 | 4931436420 | 5.40 | 6.53 | |
| SHOCK ABSORBER | ||||
| 0105 | 4931436421 | 5.40 | 6.53 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0106 | 4931436422 | |||
| HOUSING | ||||
| 0107 | 4931436423 | 7.20 | 8.71 | |
| SCREW | ||||
| 0108 | 4931436424 | 1.80 | 2.18 | |
| PUSH-BUTTON | ||||
| 0109 | 4931436425 | 1.90 | 2.30 | |
| SWITCH | ||||
| 0110 | 4931452226 | 41.18 | 49.83 | |
| HANDLE COMPL, | ||||
| 0112 | 4931436427 | 16.20 | 19.60 | |
| CAPACITOR | ||||
| 0113 | 4931436428 | 14.40 | 17.42 | |
| PUNCH GUIDE | ||||
| 0114 | 632823001 | 4.49 | 5.43 | |
| SCREW | ||||
| 0115 | 661189001 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0116 | 4931436429 | 22.18 | 26.84 | |
| CHOKING COIL | ||||
| 0117 | 4931436432 | 7.20 | 8.71 | |
| CHOKING COIL | ||||
| 0118 | 4931436433 | 7.20 | 8.71 | |
| FOAM RUBBER | ||||
| 0119 | 4931436434 | 4.49 | 5.43 | |
| SPRING | ||||
| 0120 | 4931436435 | 1.80 | 2.18 | |
| TUBE | ||||
| 0121 | 4931436436 | 4.49 | 5.43 | |
| RUBBER BUFFER | ||||
| 0122 | 4931436437 | 5.68 | 6.87 | |
| RATING PLATE | ||||
| 0123 | 4931452085 | 1.90 | 2.30 | |
| CABLE | ||||
| 0124 | 4931436441 | 4.49 | 5.43 | |
| SLEEVE | ||||
| 0125 | 4931436442 | 5.40 | 6.53 | |
| PROTECTION WASHER | ||||
| 0126 | 680866003 | 1.90 | 2.30 | |
| O-RING | ||||
| 0127 | 4931436443 | 1.90 | 2.30 | |
| SCREW | ||||
| 0128 | 4931436444 | 1.80 | 2.18 | |
| SCREW | ||||
| 0129 | 660031017 | 1.90 | 2.30 | |
| RETAINING PLATE | ||||
| 0135 | 4931447719 | 4.49 | 5.43 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0136 | 4931448845 | |||
| CARRYING CASE | ||||
| 0700 | 4931436445 | 50.69 | 61.33 | |
| GEAR GREASE | ||||
| 1000 | 4931443288 | 35.80 | 43.32 | |
