Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000446821 ( PLH28XE )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

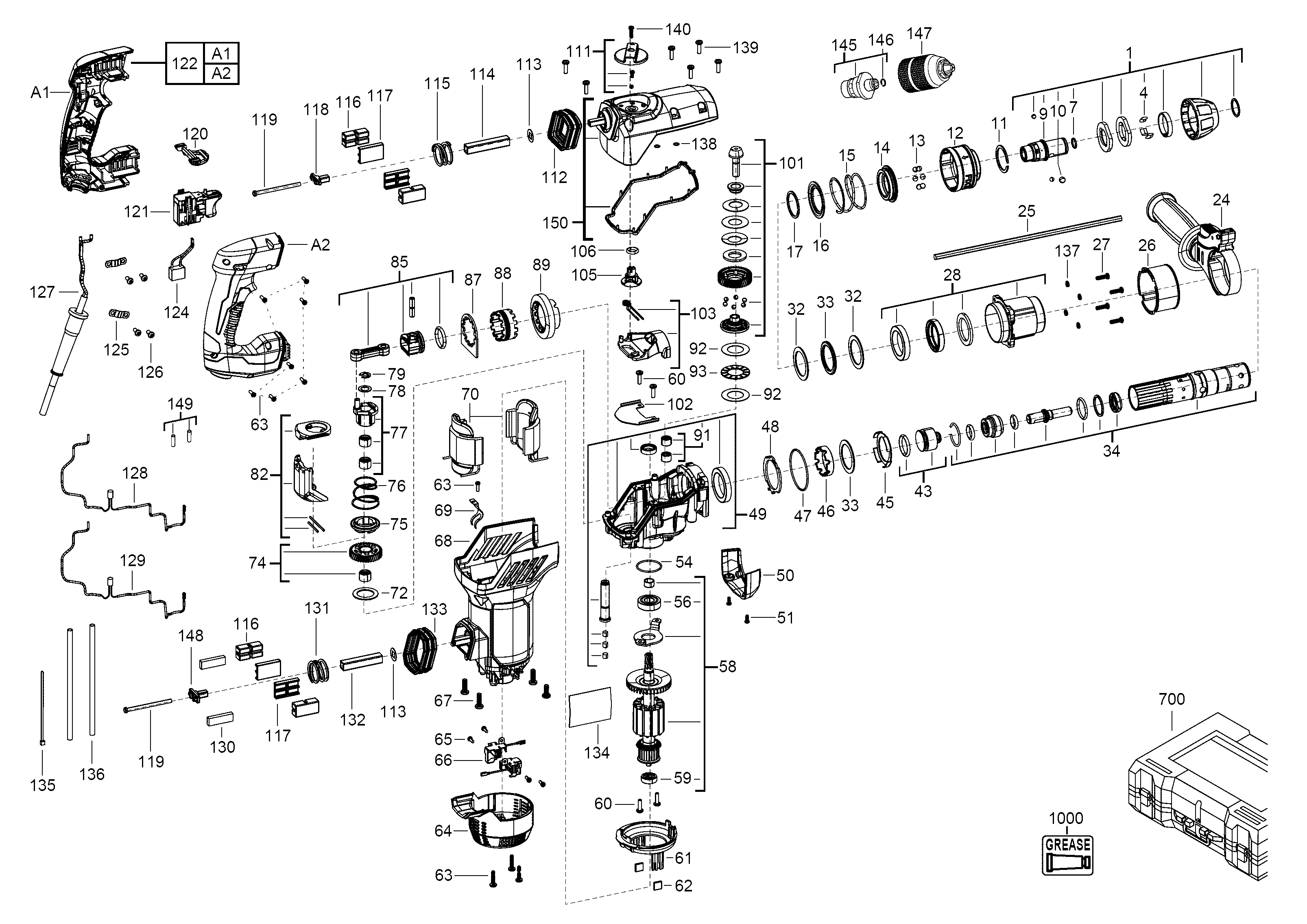

Tekeningen van de Milwaukee 4000446821 ( PLH28XE )
Onderdelen lijst van de Milwaukee 4000446821 ( PLH28XE )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| FIXTEC ADAPTER | ||||
| 0001 | 4931436361 | 38.02 | 46.00 | |
| RUBBER STOP | ||||
| 0004 | 562578001 | 5.40 | 6.53 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0007 | 562596001 | |||
| ADAPTER | ||||
| 0009 | 4931409763 | 12.60 | 15.25 | |
| BALL | ||||
| 0010 | 681154001 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 0011 | 4931436362 | 1.90 | 2.30 | |
| COLLAR | ||||
| 0012 | 4931436363 | 4.49 | 5.43 | |
| BALL | ||||
| 0013 | 681486001 | 1.80 | 2.18 | |
| RING | ||||
| 0014 | 4931436364 | 15.29 | 18.50 | |
| SPRING WASHER | ||||
| 0015 | 4931436365 | 1.90 | 2.30 | |
| SPRING | ||||
| 0016 | 4931436366 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 0017 | 4931436367 | 1.80 | 2.18 | |
| Auxiliary Handle | ||||
| 0024 | 4931436368 | 28.51 | 34.50 | |
| DEPTH GAUGE | ||||
| 0025 | 4931384434 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0026 | 4931436369 | 1.80 | 2.18 | |
| SCREW | ||||
| 0027 | 4931435150 | 1.90 | 2.30 | |
| SLEEVE | ||||
| 0028 | 4931436370 | 33.26 | 40.24 | |
| WASHER | ||||
| 0032 | 4931436371 | 1.90 | 2.30 | |
| RUBBER DISC | ||||
| 0033 | 4931436372 | 5.40 | 6.53 | |
| SPINDLE KIT | ||||
| 0034 | 4931448975 | 229.68 | 277.91 | |
| PERCUSSION BODY | ||||
| 0043 | 4931436374 | 33.26 | 40.24 | |
| BUFFER | ||||
| 0045 | 4931436375 | 1.80 | 2.18 | |
| SPINDLE SLEEVE | ||||
| 0046 | 4931436376 | 3.60 | 4.36 | |
| O-RING | ||||
| 0047 | 4931436377 | 1.80 | 2.18 | |
| PLATE | ||||
| 0048 | 4931436378 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0049 | 4931436379 | 72.86 | 88.16 | |
| HOUSING | ||||
| 0050 | 4931436380 | 5.40 | 6.53 | |
| SCREW | ||||
| 0051 | 4931435313 | 1.80 | 2.18 | |
| O-RING | ||||
| 0054 | 4931436381 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0056 | 4931436382 | 3.60 | 4.36 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0058 | 4931436383 | |||
| BALL BEARING | ||||
| 0059 | 4931436119 | 9.00 | 10.89 | |
| SCREW | ||||
| 0060 | 660165015 | 1.80 | 2.18 | |
| AIR DEFLECTOR RING | ||||
| 0061 | 4931436385 | 1.90 | 2.30 | |
| BLOCK | ||||
| 0062 | 4931435034 | 5.40 | 6.53 | |
| SCREW M3,5 Torx 10 | ||||
| 0063 | 660031023 | 1.90 | 2.30 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0064 | 4931436386 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 0065 | 4931436387 | |||
| BRUSH HOLDER with brushes | ||||
| 0066 | 4931436388 | 19.01 | 23.00 | |
| SCREW | ||||
| 0067 | 4931436390 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0068 | 4931436391 | 34.85 | 42.17 | |
| STAMP | ||||
| 0069 | 4931436392 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0070 | 4931436393 | 63.36 | 76.67 | |
| WASHER | ||||
| 0072 | 4931436395 | 1.80 | 2.18 | |
| CRANK WHEEL | ||||
| 0074 | 4931436396 | 22.18 | 26.84 | |
| RING | ||||
| 0075 | 4931436397 | 3.60 | 4.36 | |
| SPRING | ||||
| 0076 | 4931436398 | 1.80 | 2.18 | |
| ECCENTRIC STRAP | ||||
| 0077 | 4931436399 | 44.35 | 53.66 | |
| WASHER | ||||
| 0078 | 4931436400 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 0079 | 4931436401 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0082 | 4931436402 | 15.84 | 19.17 | |
| PISTON | ||||
| 0085 | 4931436403 | 31.68 | 38.33 | |
| HOLDING PLATE | ||||
| 0087 | 4931436404 | 4.49 | 5.43 | |
| INDEXING SLEEVE | ||||
| 0088 | 4931436405 | 7.20 | 8.71 | |
| BEVEL GEAR | ||||
| 0089 | 4931436406 | 25.34 | 30.66 | |
| BEARING | ||||
| 0091 | 680727001 | 9.00 | 10.89 | |
| WASHER | ||||
| 0092 | 4931436407 | 1.90 | 2.30 | |
| NEEDLE BEARING | ||||
| 0093 | 4931436408 | 3.78 | 4.57 | |
| COUPLING | ||||
| 0101 | 4931436409 | 69.70 | 84.34 | |
| STAMP | ||||
| 0102 | 4931436410 | 1.80 | 2.18 | |
| FORK | ||||
| 0103 | 4931436411 | 7.20 | 8.71 | |
| JOINT PIECE | ||||
| 0105 | 4931436412 | 1.90 | 2.30 | |
| O-RING | ||||
| 0106 | 4931436413 | 1.80 | 2.18 | |
| KNOB | ||||
| 0111 | 4931436416 | 8.09 | 9.79 | |
| RUBBER CAP | ||||
| 0112 | 4931436417 | 5.40 | 6.53 | |
| WASHER | ||||
| 0113 | 4931436418 | 1.90 | 2.30 | |
| GUIDE SLEEVE | ||||
| 0114 | 4931436419 | 5.40 | 6.53 | |
| SPRING | ||||
| 0115 | 4931436420 | 5.40 | 6.53 | |
| SHOCK ABSORBER | ||||
| 0116 | 4931436421 | 5.40 | 6.53 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0117 | 4931436422 | |||
| HOUSING | ||||
| 0118 | 4931436423 | 7.20 | 8.71 | |
| SCREW | ||||
| 0119 | 4931436424 | 1.80 | 2.18 | |
| PUSH-BUTTON | ||||
| 0120 | 4931436425 | 1.90 | 2.30 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0121 | 4931436426 | |||
| HANDLE COMPL, | ||||
| 0122 | 4931436427 | 16.20 | 19.60 | |
| CAPACITOR | ||||
| 0124 | 4931436428 | 14.40 | 17.42 | |
| PUNCH GUIDE | ||||
| 0125 | 632823001 | 4.49 | 5.43 | |
| SCREW | ||||
| 0126 | 661189001 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0127 | 4931436431 | 39.60 | 47.92 | |
| CHOKING COIL | ||||
| 0128 | 4931436432 | 7.20 | 8.71 | |
| CHOKING COIL | ||||
| 0129 | 4931436433 | 7.20 | 8.71 | |
| FOAM RUBBER | ||||
| 0130 | 4931436434 | 4.49 | 5.43 | |
| SPRING | ||||
| 0131 | 4931436435 | 1.80 | 2.18 | |
| TUBE | ||||
| 0132 | 4931436436 | 4.49 | 5.43 | |
| RUBBER BUFFER | ||||
| 0133 | 4931436437 | 5.68 | 6.87 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0134 | 4931436440 | |||
| CABLE | ||||
| 0135 | 4931436441 | 4.49 | 5.43 | |
| SLEEVE | ||||
| 0136 | 4931436442 | 5.40 | 6.53 | |
| PROTECTION WASHER | ||||
| 0137 | 680866003 | 1.90 | 2.30 | |
| O-RING | ||||
| 0138 | 4931436443 | 1.90 | 2.30 | |
| SCREW | ||||
| 0139 | 4931436444 | 1.80 | 2.18 | |
| SCREW | ||||
| 0140 | 660031017 | 1.90 | 2.30 | |
| CHUCK ADAPTER | ||||
| 0145 | 621194001 | 20.79 | 25.16 | |
| SPRING | ||||
| 0146 | 692738001 | 4.49 | 5.43 | |
| Snelspanboorhouder 1.5 - 13 - x 20 / 2 sleeve with | ||||
| 0147 | 4932376531 | 53.46 | 64.69 | |
| RETAINING PLATE | ||||
| 0148 | 4931447719 | 4.49 | 5.43 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0149 | 4931448845 | |||
| GEAR BOX COVER | ||||
| 0150 | 4931452224 | 49.10 | 59.41 | |
| CARRYING CASE | ||||
| 0700 | 4931436445 | 50.69 | 61.33 | |
| GEAR GREASE | ||||
| 1000 | 4931443288 | 35.80 | 43.32 | |
