Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000400063 ( PLH32QEX )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

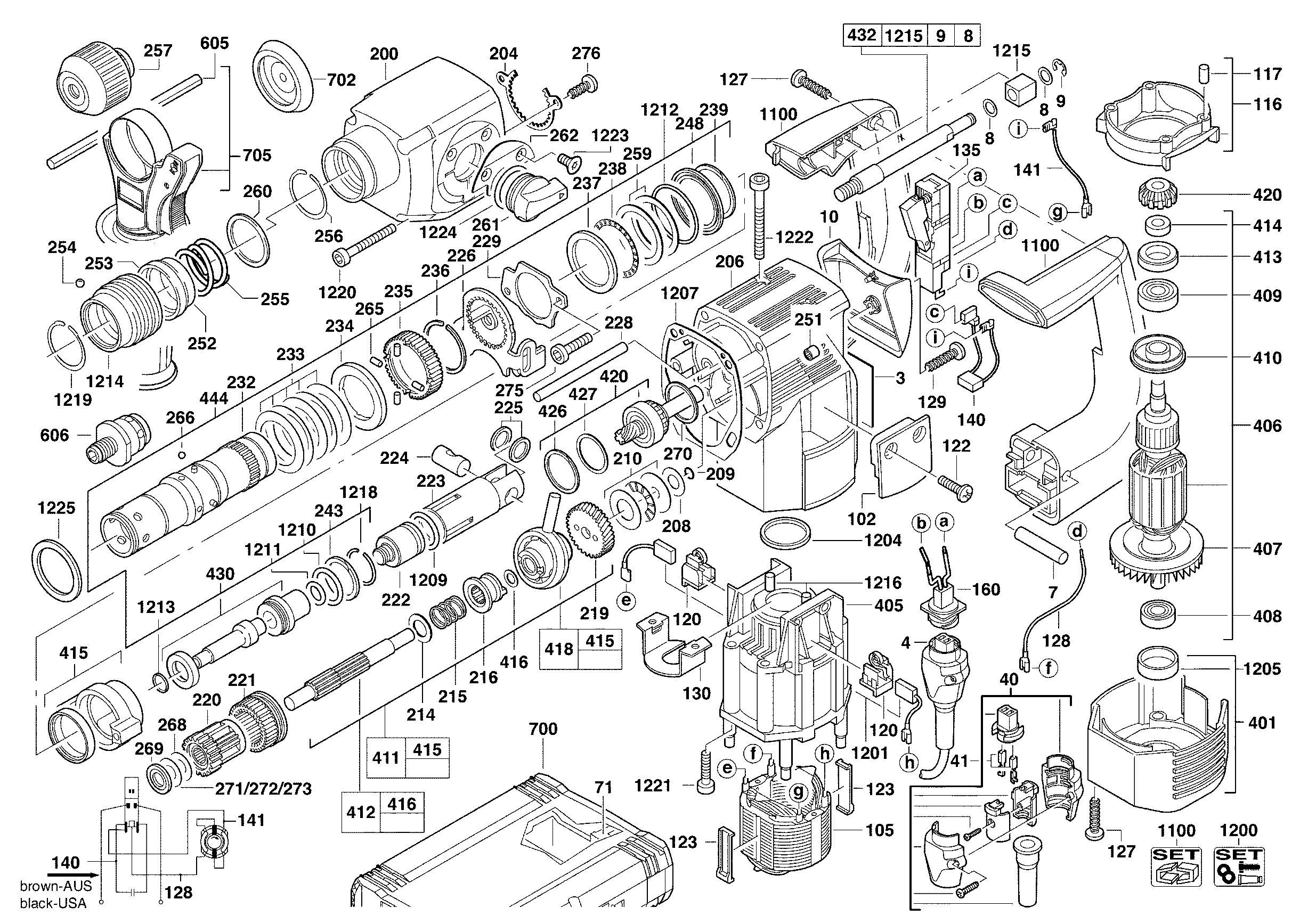

Tekeningen van de Milwaukee 4000400063 ( PLH32QEX )
Onderdelen lijst van de Milwaukee 4000400063 ( PLH32QEX )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Geen informatie beschikbaar, niet bestelbaar | ||||
0003 | 4931400067 | |||
CONNECTION CABLE IN2 | ||||
0004 | 4931624171 | 33.00 | 39.93 | |
GROOVED DOWEL PIN | ||||
0007 | 4931623456 | 5.40 | 6.53 | |
WASHER | ||||
0008 | 4931623094 | 1.80 | 2.18 | |
WASHER | ||||
0009 | 4931621834 | 1.80 | 2.18 | |
GEAR BOX COVER | ||||
0010 | 4931360377 | 5.40 | 6.53 | |
Reparatieset QUIK-LOK snoeren | ||||
0040 | 4931380758 | 40.26 | 48.71 | |
Cable socket p./10 | ||||
0041 | 4931380763 | 25.34 | 30.66 | |
CARRYING CASE | ||||
0071 | 4931415335 | 47.52 | 57.50 | |
COVER | ||||
0102 | 4931379134 | 4.49 | 5.43 | |
ELECTRIC FIELD | ||||
0105 | 4931442731 | 31.68 | 38.33 | |
AIR DEFLECTOR RING | ||||
0116 | 4931353230 | 5.40 | 6.53 | |
HOLDING-DOWN DEVICE | ||||
0117 | 4931405705 | 4.49 | 5.43 | |
BRUSH HOLDER | ||||
0120 | 4931382268 | 5.40 | 6.53 | |
SCREW | ||||
0122 | 4931624518 | 1.80 | 2.18 | |
CENTERING LEDGE | ||||
0123 | 4931342808 | 5.40 | 6.53 | |
SCREW N874101-1 SHR H-K4X18 T15 | ||||
0127 | 4931624515 | 1.80 | 2.18 | |
WIRE | ||||
0128 | 4931623541 | 5.40 | 6.53 | |
SCREW | ||||
0129 | 4931622153 | 1.80 | 2.18 | |
BEARING COVER | ||||
0130 | 4931356869 | 5.40 | 6.53 | |
SWITCH BOARD | ||||
0135 | 4931384896 | 30.10 | 36.42 | |
CAPACITOR | ||||
0140 | 4931624270 | 5.40 | 6.53 | |
WIRE | ||||
0141 | 4931624269 | 5.40 | 6.53 | |
INSERT | ||||
0160 | 4931364437 | 9.00 | 10.89 | |
GEAR BOX | ||||
0200 | 4931384040 | 69.70 | 84.34 | |
LOCKING RING | ||||
0204 | 4931331685 | 3.60 | 4.36 | |
GEAR BOX | ||||
0206 | 4931382948 | 118.80 | 143.75 | |
WASHER | ||||
0208 | 4931623637 | 1.80 | 2.18 | |
O-RING N874701 5X1 | ||||
0209 | 4931941082 | 1.80 | 2.18 | |
THRUST BEARING | ||||
0210 | 4931360041 | 9.00 | 10.89 | |
DISC | ||||
0214 | 4931621983 | 5.40 | 6.53 | |
PRESSURE SPRING | ||||
0215 | 4931379589 | 5.40 | 6.53 | |
COUPLING SLEEVE | ||||
0216 | 4931379649 | 9.00 | 10.89 | |
REDUCTION GEAR | ||||
0219 | 4931426234 | 10.80 | 13.07 | |
PLANET GEAR | ||||
0220 | 4931384917 | 50.69 | 61.33 | |
INTERN,GEARED WHEEL | ||||
0221 | 4931331769 | 9.00 | 10.89 | |
PERC, BODY W SEAL | ||||
0222 | 4931455430 | 25.34 | 30.66 | |
CYLINDER | ||||
0223 | 4931379587 | 15.84 | 19.17 | |
CYLINDRICAL BOLT | ||||
0224 | 4931331623 | 5.40 | 6.53 | |
WASHER | ||||
0225 | 4931400589 | 1.80 | 2.18 | |
SLIDER | ||||
0226 | 4931331752 | 5.40 | 6.53 | |
PIN | ||||
0228 | 4931623081 | 5.40 | 6.53 | |
LATCH PLATE | ||||
0229 | 4931331787 | 5.40 | 6.53 | |
SPINDLE SLEEVE | ||||
0232 | 4931417464 | 66.53 | 80.50 | |
CUP SPRING | ||||
0233 | 4931379071 | 5.40 | 6.53 | |
CLUTCH DISC | ||||
0234 | 4931379110 | 5.40 | 6.53 | |
SPINDLE GEAR | ||||
0235 | 4931392752 | 5.40 | 6.53 | |
Spring Ring | ||||
0236 | 4931384919 | 5.40 | 6.53 | |
WASHER | ||||
0237 | 4931623199 | 1.80 | 2.18 | |
THRUST BEARING | ||||
0238 | 4931331713 | 9.00 | 10.89 | |
LOCKING WASHER | ||||
0239 | 4931343187 | 1.80 | 2.18 | |
THRUST COLLAR | ||||
0243 | 4931387328 | 9.00 | 10.89 | |
WASHER | ||||
0248 | 4931343049 | 1.80 | 2.18 | |
NEEDLE BEARING | ||||
0251 | 4931219424 | 3.60 | 4.36 | |
Sleeve | ||||
0252 | 4931382921 | 5.40 | 6.53 | |
Ring Stop | ||||
0253 | 4931409774 | 5.40 | 6.53 | |
Ball | ||||
0254 | 4931805437 | 1.80 | 2.18 | |
SPRING | ||||
0255 | 692737001 | 4.49 | 5.43 | |
Spring Ring | ||||
0256 | 4931945764 | 5.40 | 6.53 | |
Adapter | ||||
0257 | 4931379739 | 55.44 | 67.08 | |
WASHER | ||||
0259 | 4931623200 | 1.80 | 2.18 | |
WASHER | ||||
0260 | 4931623234 | 1.80 | 2.18 | |
SWITCH HANDLE | ||||
0261 | 4931392506 | 5.40 | 6.53 | |
LATCH PLATE | ||||
0262 | 4931379108 | 5.40 | 6.53 | |
CYLINDER PULLEY | ||||
0265 | 4931624045 | 5.40 | 6.53 | |
Ball | ||||
0266 | 4931805390 | 1.80 | 2.18 | |
DISC N874237 | ||||
0268 | 4931624096 | 5.40 | 6.53 | |
SPACER | ||||
0269 | 4931379420 | 5.40 | 6.53 | |
SUPPORTING PLATE | ||||
0270 | 4931409756 | 5.40 | 6.53 | |
DISC N874237 | ||||
0271 | 4931624098 | 5.40 | 6.53 | |
DISC N874237 | ||||
0272 | 4931624097 | 5.40 | 6.53 | |
SCREW | ||||
0275 | 4931623602 | 1.80 | 2.18 | |
SCREW | ||||
0276 | 4931379708 | 1.80 | 2.18 | |
MOTOR COVER | ||||
0401 | 4931360732 | 10.80 | 13.07 | |
MOTOR HOUSING | ||||
0405 | 4931384337 | 17.42 | 21.08 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
0406 | 4931426517 | |||
FAN | ||||
0407 | 4931342793 | 5.40 | 6.53 | |
GROOVED BALL BEAR, | ||||
0408 | 4931341740 | 5.40 | 6.53 | |
BALL BEARING | ||||
0409 | 4931624101 | 9.00 | 10.89 | |
INSULATING DISC | ||||
0410 | 4931353260 | 5.40 | 6.53 | |
REPAIR KIT | ||||
0411 | 4931384561 | 93.46 | 113.09 | |
REDUCT, GEAR SHAFT | ||||
0412 | 4931384864 | 17.42 | 21.08 | |
SEAL RING | ||||
0413 | 4931442301 | 16.20 | 19.60 | |
SPACER | ||||
0414 | 4931353238 | 4.49 | 5.43 | |
BUSHING | ||||
0415 | 4931384557 | 17.42 | 21.08 | |
DISC N874237 A 10,1X18X1 | ||||
0416 | 4931624264 | 5.40 | 6.53 | |
REPAIR KIT | ||||
0418 | 4931384560 | 63.36 | 76.67 | |
PINION SHAFT | ||||
0420 | 4931432300 | 63.36 | 76.67 | |
LOCKING RING | ||||
0426 | 4931616614 | 5.40 | 6.53 | |
DISC N874237 A16,1X26X1 | ||||
0427 | 4931622564 | 5.40 | 6.53 | |
REPAIR KIT | ||||
0430 | 4931379881 | 63.36 | 76.67 | |
REPAIR KIT | ||||
0432 | 4931400216 | 31.68 | 38.33 | |
SPINDLE SLEEVE | ||||
0444 | 4931407945 | 144.14 | 174.41 | |
DEPTH GAUGE | ||||
0605 | 4931384434 | 5.40 | 6.53 | |
Transportkoffer Milwaukee (maat 1) | ||||
0700 | 4932378986 | 47.85 | 57.90 | |
boorstof opvangring | ||||
0702 | 4932430912 | 9.54 | 11.54 | |
Zijhandgreep | ||||
0705 | 4932373725 | 17.60 | 21.30 | |
HANDLE COMPL, | ||||
1100 | 4931384324 | 15.84 | 19.17 | |
MAINTENANCE SET | ||||
1200 | 4931384723 | 52.27 | 63.25 | |
CARBON BRUSH SET | ||||
1201 | 4931369477 | 14.40 | 17.42 | |
O-RING | ||||
1204 | 4931623124 | 1.80 | 2.18 | |
RUBBER SLEEVE | ||||
1205 | 4931360781 | 5.40 | 6.53 | |
GASKET | ||||
1207 | 4931331735 | 5.40 | 6.53 | |
SEAL RING | ||||
1209 | 4931379705 | 5.40 | 6.53 | |
SEAL RING | ||||
1210 | 4931624492 | 5.40 | 6.53 | |
O-RING | ||||
1211 | 562597001 | 3.60 | 4.36 | |
O-RING | ||||
1212 | 4931623135 | 1.80 | 2.18 | |
SEAL RING | ||||
1213 | 4931623232 | 5.40 | 6.53 | |
Sleeve | ||||
1214 | 4931379022 | 5.40 | 6.53 | |
DAMPING ELEMENT | ||||
1215 | 4931392502 | 5.40 | 6.53 | |
HOLDING-DOWN DEVICE | ||||
1216 | 4931331549 | 5.40 | 6.53 | |
RING | ||||
1218 | 4931623636 | 5.40 | 6.53 | |
Spring Ring | ||||
1219 | 4931945764 | 5.40 | 6.53 | |
SCREW | ||||
1220 | 4931623521 | 1.80 | 2.18 | |
SCREW | ||||
1221 | 4931623520 | 1.80 | 2.18 | |
SCREW | ||||
1222 | 4931623519 | 1.80 | 2.18 | |
SCREW | ||||
1223 | 4931379109 | 1.80 | 2.18 | |
O-RING | ||||
1224 | 4931623293 | 1.80 | 2.18 | |
FELT WASHER | ||||
1225 | 4931379585 | 1.80 | 2.18 |
