Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000392115 ( PPH24E )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

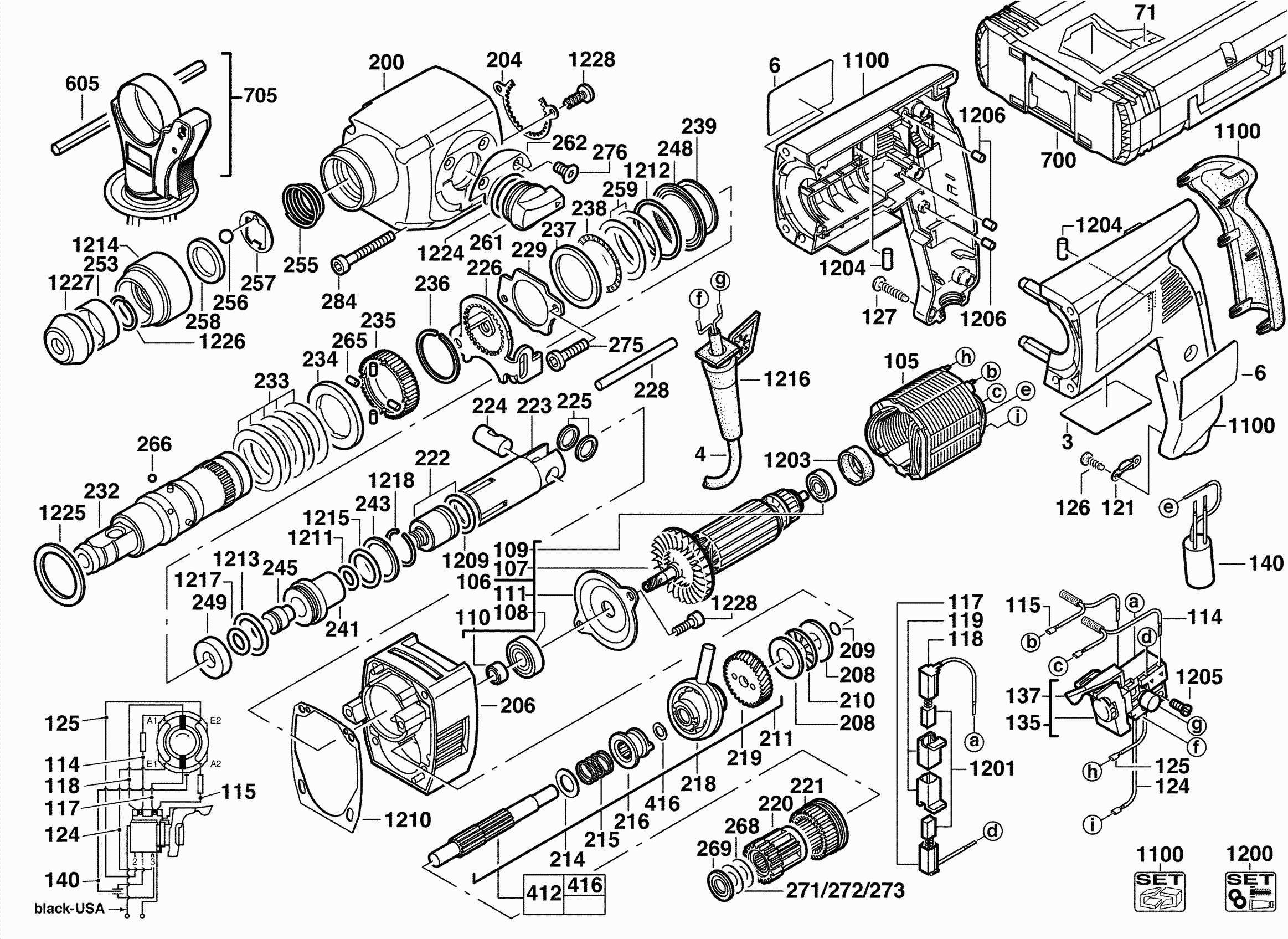

Tekeningen van de Milwaukee 4000392115 ( PPH24E )
Onderdelen lijst van de Milwaukee 4000392115 ( PPH24E )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
CONNECTION CABLE | ||||
0004 | 4931302112 | 12.60 | 15.25 | |
TYPE PLATE | ||||
0006 | 4931378806 | 5.40 | 6.53 | |
ELECTRIC FIELD | ||||
0105 | 4931426184 | 23.76 | 28.75 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
0106 | 4931343020 | |||
FAN | ||||
0107 | 4931342643 | 4.49 | 5.43 | |
GROOVED BALL BEAR, | ||||
0108 | 4931368037 | 5.40 | 6.53 | |
Niet meer leverbaar, geen vervanging | ||||
0109 | 4931624405 | |||
SEALING SLEEVE | ||||
0110 | 4931382148 | 4.49 | 5.43 | |
BEARING COVER | ||||
0111 | 4931267585 | 4.49 | 5.43 | |
CHOKING COIL | ||||
0114 | 4931623023 | 4.49 | 5.43 | |
CHOKING COIL | ||||
0115 | 4931622291 | 4.49 | 5.43 | |
BRUSH HOLDER | ||||
0117 | 4931271665 | 4.49 | 5.43 | |
BRUSH HOLDER | ||||
0118 | 4931622292 | 5.40 | 6.53 | |
BRUSH HOLDER | ||||
0119 | 4931315039 | 5.40 | 6.53 | |
BRUSH HOLDER (2 benodigd) | ||||
0119 | 4931271678 | 3.00 | 3.63 | |
CABLE COLLAR | ||||
0121 | 4931256500 | 5.40 | 6.53 | |
CABLE | ||||
0124 | 4931253699 | 4.49 | 5.43 | |
WIRE | ||||
0125 | 4931622262 | 4.49 | 5.43 | |
SCREW | ||||
0126 | 4931624516 | 1.80 | 2.18 | |
SCREW N874101-1 SHR H-K4X18 T15 | ||||
0127 | 4931624515 | 1.80 | 2.18 | |
SWITCH BOARD | ||||
0135 | 4931382377 | 17.42 | 21.08 | |
SWITCH LEVER | ||||
0137 | 4931344836 | 26.93 | 32.59 | |
Capacitor | ||||
0140 | 4931622384 | 4.49 | 5.43 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
0200 | 4931382394 | |||
LOCKING RING | ||||
0204 | 4931331685 | 3.60 | 4.36 | |
AXIAL BEAR,WASHER | ||||
0208 | 4931622575 | 1.80 | 2.18 | |
O-RING N874701 5X1 | ||||
0209 | 4931941082 | 1.80 | 2.18 | |
AXIAL NEEDLE RING | ||||
0210 | 4931622567 | 4.49 | 5.43 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
0211 | 4931379284 | |||
DISC | ||||
0214 | 4931621983 | 5.40 | 6.53 | |
PRESSURE SPRING | ||||
0215 | 4931379589 | 5.40 | 6.53 | |
COUPLING SLEEVE | ||||
0216 | 4931379649 | 9.00 | 10.89 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
0218 | 4931379116 | |||
PLANET GEAR | ||||
0220 | 4931384917 | 50.69 | 61.33 | |
INTERN,GEARED WHEEL | ||||
0221 | 4931331769 | 9.00 | 10.89 | |
PERC, BODY W SEAL | ||||
0222 | 4931455430 | 25.34 | 30.66 | |
CYLINDER | ||||
0223 | 4931379587 | 15.84 | 19.17 | |
CYLINDRICAL BOLT | ||||
0224 | 4931331623 | 5.40 | 6.53 | |
WASHER | ||||
0225 | 4931400589 | 1.80 | 2.18 | |
SLIDER | ||||
0226 | 4931331752 | 5.40 | 6.53 | |
PIN | ||||
0228 | 4931623081 | 5.40 | 6.53 | |
LATCH PLATE | ||||
0229 | 4931331787 | 5.40 | 6.53 | |
Spindle Sleeve | ||||
0232 | 4931417466 | 79.20 | 95.83 | |
CUP SPRING | ||||
0233 | 4931379071 | 5.40 | 6.53 | |
CLUTCH DISC | ||||
0234 | 4931379110 | 5.40 | 6.53 | |
SPINDLE GEAR | ||||
0235 | 4931392752 | 5.40 | 6.53 | |
Spring Ring | ||||
0236 | 4931384919 | 5.40 | 6.53 | |
WASHER | ||||
0237 | 4931623199 | 1.80 | 2.18 | |
THRUST BEARING | ||||
0238 | 4931331713 | 9.00 | 10.89 | |
LOCKING WASHER | ||||
0239 | 4931343187 | 1.80 | 2.18 | |
THRUST COLLAR | ||||
0241 | 4931409819 | 16.20 | 19.60 | |
THRUST COLLAR | ||||
0243 | 4931387328 | 9.00 | 10.89 | |
SNAP DIE | ||||
0245 | 4931387329 | 9.00 | 10.89 | |
WASHER | ||||
0248 | 4931343049 | 1.80 | 2.18 | |
STOP WASHER | ||||
0249 | 4931382274 | 10.80 | 13.07 | |
DISTANCE SLEEVE | ||||
0253 | 4931360861 | 5.40 | 6.53 | |
PRESSURE SPRING | ||||
0255 | 4931343128 | 5.40 | 6.53 | |
Ball | ||||
0256 | 4931911572 | 1.80 | 2.18 | |
SUPPORT PLATE | ||||
0257 | 4931343127 | 5.40 | 6.53 | |
Niet meer leverbaar, geen vervanging | ||||
0258 | 4931343126 | |||
WASHER | ||||
0259 | 4931623200 | 1.80 | 2.18 | |
SWITCH HANDLE | ||||
0261 | 4931392506 | 5.40 | 6.53 | |
LATCH PLATE | ||||
0262 | 4931379108 | 5.40 | 6.53 | |
CYLINDER PULLEY | ||||
0265 | 4931624045 | 5.40 | 6.53 | |
Ball | ||||
0266 | 4931805390 | 1.80 | 2.18 | |
DISC N874237 | ||||
0268 | 4931624096 | 5.40 | 6.53 | |
SPACER | ||||
0269 | 4931379420 | 5.40 | 6.53 | |
DISC N874237 | ||||
0271 | 4931624098 | 5.40 | 6.53 | |
DISC N874237 | ||||
0272 | 4931624097 | 5.40 | 6.53 | |
Niet meer leverbaar, geen vervanging | ||||
0275 | 4931623260 | |||
SCREW | ||||
0276 | 4931379109 | 1.80 | 2.18 | |
SCREW | ||||
0284 | 4931331734 | 1.80 | 2.18 | |
REDUCT, GEAR SHAFT | ||||
0412 | 4931384864 | 17.42 | 21.08 | |
DISC N874237 A 10,1X18X1 | ||||
0416 | 4931624264 | 5.40 | 6.53 | |
DEPTH GAUGE | ||||
0605 | 4931384434 | 5.40 | 6.53 | |
Transportkoffer Milwaukee (maat 1) | ||||
0700 | 4932378986 | 47.85 | 57.90 | |
HANDLE | ||||
0705 | 4931412160 | 14.40 | 17.42 | |
HOUSING | ||||
1100 | 4931359606 | 25.34 | 30.66 | |
Niet meer leverbaar, geen vervanging | ||||
1201 | 4931392609 | |||
RUBBER SLEEVE | ||||
1203 | 4931301483 | 1.80 | 2.18 | |
HOLDING-DOWN DEVICE | ||||
1204 | 4931307423 | 5.40 | 6.53 | |
SCREW | ||||
1205 | 4931621772 | 1.80 | 2.18 | |
HOLDING-DOWN DEVICE | ||||
1206 | 4931409768 | 5.40 | 6.53 | |
SEAL RING | ||||
1209 | 4931379705 | 5.40 | 6.53 | |
GASKET | ||||
1210 | 4931331735 | 5.40 | 6.53 | |
O-RING | ||||
1211 | 562597001 | 3.60 | 4.36 | |
O-RING | ||||
1212 | 4931623135 | 1.80 | 2.18 | |
RADIAL SEAL RING | ||||
1213 | 4931623221 | 4.49 | 5.43 | |
SLEEVE | ||||
1214 | 4931343965 | 5.40 | 6.53 | |
SEAL RING | ||||
1215 | 4931624492 | 5.40 | 6.53 | |
CABLE ENTRY SLEEVE | ||||
1216 | 4931332161 | 4.49 | 5.43 | |
SEAL RING | ||||
1217 | 4931624493 | 5.40 | 6.53 | |
RING | ||||
1218 | 4931623636 | 5.40 | 6.53 | |
O-RING | ||||
1224 | 4931623293 | 1.80 | 2.18 | |
FELT WASHER | ||||
1225 | 4931379585 | 1.80 | 2.18 | |
SPRING RING | ||||
1226 | 4931623220 | 5.40 | 6.53 | |
CAP | ||||
1227 | 4931343123 | 5.40 | 6.53 | |
SCREW | ||||
1228 | 4931379708 | 1.80 | 2.18 |
