Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000382369 ( PPH24X2E )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

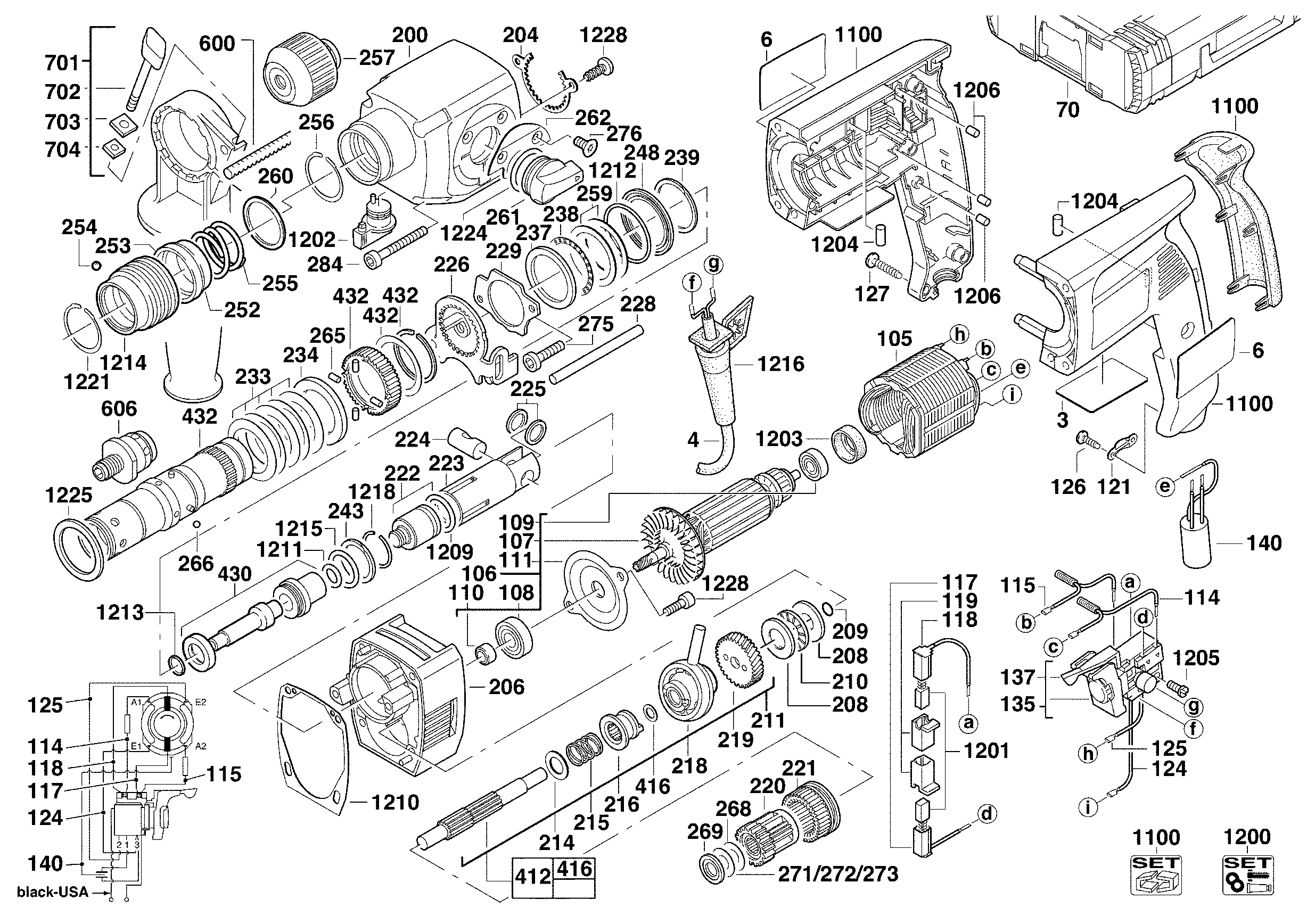

Tekeningen van de Milwaukee 4000382369 ( PPH24X2E )
Onderdelen lijst van de Milwaukee 4000382369 ( PPH24X2E )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931302112 | 12.60 | 15.25 | |
| TYPE PLATE | ||||
| 0006 | 4931378806 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0070 | 4932378986 | 47.85 | 57.90 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426184 | 23.76 | 28.75 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0106 | 4931343020 | |||
| FAN | ||||
| 0107 | 4931342643 | 4.49 | 5.43 | |
| GROOVED BALL BEAR, | ||||
| 0108 | 4931368037 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.00 | 10.89 | |
| SEALING SLEEVE | ||||
| 0110 | 4931382148 | 4.49 | 5.43 | |
| BEARING COVER | ||||
| 0111 | 4931267585 | 4.49 | 5.43 | |
| CHOKING COIL | ||||
| 0114 | 4931623023 | 4.49 | 5.43 | |
| CHOKING COIL | ||||
| 0115 | 4931622291 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0117 | 4931271665 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0118 | 4931622292 | 5.40 | 6.53 | |
| BRUSH HOLDER | ||||
| 0119 | 4931315039 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0121 | 4931256500 | 5.40 | 6.53 | |
| CABLE | ||||
| 0124 | 4931253699 | 4.49 | 5.43 | |
| WIRE | ||||
| 0125 | 4931622262 | 4.49 | 5.43 | |
| SCREW | ||||
| 0126 | 4931624538 | 1.80 | 2.18 | |
| SCREW | ||||
| 0127 | 4931618253 | 1.80 | 2.18 | |
| SWITCH BOARD | ||||
| 0135 | 4931382377 | 17.42 | 21.08 | |
| SWITCH LEVER | ||||
| 0137 | 4931344836 | 26.93 | 32.59 | |
| Capacitor | ||||
| 0140 | 4931622384 | 4.49 | 5.43 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0200 | 4931382379 | |||
| LOCKING RING | ||||
| 0204 | 4931331685 | 3.60 | 4.36 | |
| AXIAL BEAR,WASHER | ||||
| 0208 | 4931622575 | 1.80 | 2.18 | |
| O-RING N874701 5X1 | ||||
| 0209 | 4931941082 | 1.80 | 2.18 | |
| AXIAL NEEDLE RING | ||||
| 0210 | 4931622567 | 4.49 | 5.43 | |
| DISC | ||||
| 0214 | 4931621983 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0215 | 4931379589 | 5.40 | 6.53 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0216 | 4931379653 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0218 | 4931379116 | |||
| PLANET GEAR | ||||
| 0220 | 4931384918 | 25.94 | 31.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0221 | 4931331684 | |||
| PERC, BODY W SEAL | ||||
| 0222 | 4931455430 | 25.34 | 30.66 | |
| CYLINDER | ||||
| 0223 | 4931379587 | 15.84 | 19.17 | |
| CYLINDRICAL BOLT | ||||
| 0224 | 4931331623 | 5.40 | 6.53 | |
| WASHER | ||||
| 0225 | 4931400589 | 1.80 | 2.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0226 | 4931331724 | |||
| PIN | ||||
| 0228 | 4931623081 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0229 | 4931331787 | 5.40 | 6.53 | |
| CUP SPRING | ||||
| 0233 | 4931379071 | 5.40 | 6.53 | |
| CLUTCH DISC | ||||
| 0234 | 4931379110 | 5.40 | 6.53 | |
| WASHER | ||||
| 0237 | 4931623199 | 1.80 | 2.18 | |
| THRUST BEARING | ||||
| 0238 | 4931331713 | 9.00 | 10.89 | |
| LOCKING WASHER | ||||
| 0239 | 4931343187 | 1.80 | 2.18 | |
| THRUST COLLAR | ||||
| 0243 | 4931387328 | 9.00 | 10.89 | |
| WASHER | ||||
| 0248 | 4931343049 | 1.80 | 2.18 | |
| Sleeve | ||||
| 0252 | 4931382921 | 5.40 | 6.53 | |
| Ring Stop | ||||
| 0253 | 4931409774 | 5.40 | 6.53 | |
| Ball | ||||
| 0254 | 4931805437 | 1.80 | 2.18 | |
| SPRING | ||||
| 0255 | 692737001 | 4.49 | 5.43 | |
| Spring Ring | ||||
| 0256 | 4931945764 | 5.40 | 6.53 | |
| Adapter | ||||
| 0257 | 4931379739 | 55.44 | 67.08 | |
| WASHER | ||||
| 0259 | 4931623200 | 1.80 | 2.18 | |
| WASHER | ||||
| 0260 | 4931623234 | 1.80 | 2.18 | |
| SWITCH HANDLE | ||||
| 0261 | 4931392507 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0262 | 4931379108 | 5.40 | 6.53 | |
| CYLINDER PULLEY | ||||
| 0265 | 4931624045 | 5.40 | 6.53 | |
| Ball | ||||
| 0266 | 4931805390 | 1.80 | 2.18 | |
| DISC N874237 | ||||
| 0268 | 4931624096 | 5.40 | 6.53 | |
| SPACER | ||||
| 0269 | 4931379420 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0271 | 4931624098 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0272 | 4931624097 | 5.40 | 6.53 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0275 | 4931623260 | |||
| SCREW | ||||
| 0276 | 4931379109 | 1.80 | 2.18 | |
| SCREW | ||||
| 0284 | 4931331734 | 1.80 | 2.18 | |
| REDUCT, GEAR SHAFT | ||||
| 0412 | 4931384864 | 17.42 | 21.08 | |
| DISC N874237 A 10,1X18X1 | ||||
| 0416 | 4931624264 | 5.40 | 6.53 | |
| REPAIR KIT | ||||
| 0430 | 4931379881 | 63.36 | 76.67 | |
| DEPTH GAUGE | ||||
| 0600 | 4931384434 | 5.40 | 6.53 | |
| Zijhandgreep | ||||
| 0701 | 4932373725 | 17.60 | 21.30 | |
| SCREW | ||||
| 0702 | 4931254533 | 1.80 | 2.18 | |
| CLAMPING PLATE | ||||
| 0703 | 4931271221 | 4.49 | 5.43 | |
| NUT D 562 M 6 | ||||
| 0704 | 4931614025 | 4.49 | 5.43 | |
| HOUSING | ||||
| 1100 | 4931359606 | 25.34 | 30.66 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 1200 | 4931382088 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 1201 | 4931392609 | |||
| RUBBER SLEEVE | ||||
| 1203 | 4931301483 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 1204 | 4931307423 | 5.40 | 6.53 | |
| SCREW | ||||
| 1205 | 4931621772 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 1206 | 4931409768 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1209 | 4931379705 | 5.40 | 6.53 | |
| GASKET | ||||
| 1210 | 4931331735 | 5.40 | 6.53 | |
| O-RING | ||||
| 1211 | 562597001 | 3.60 | 4.36 | |
| O-RING | ||||
| 1212 | 4931623135 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623232 | 5.40 | 6.53 | |
| Sleeve | ||||
| 1214 | 4931379022 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1215 | 4931624492 | 5.40 | 6.53 | |
| CABLE ENTRY SLEEVE | ||||
| 1216 | 4931332161 | 4.49 | 5.43 | |
| RING | ||||
| 1218 | 4931623636 | 5.40 | 6.53 | |
| O-RING | ||||
| 1224 | 4931623293 | 1.80 | 2.18 | |
| FELT WASHER | ||||
| 1225 | 4931379585 | 1.80 | 2.18 | |
| SCREW | ||||
| 1228 | 4931379708 | 1.80 | 2.18 | |
