Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000458755 ( SSD1100X )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

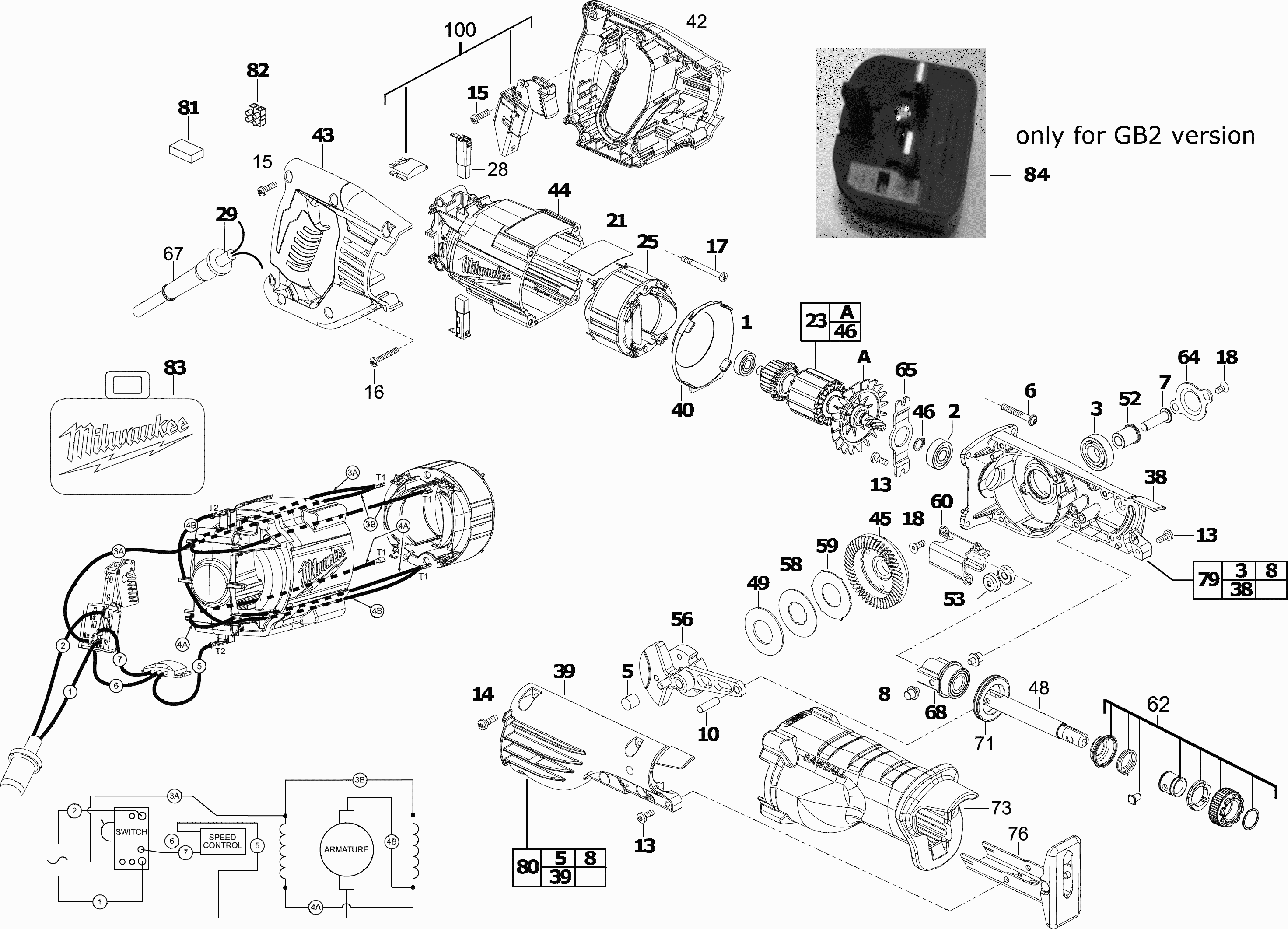

Tekeningen van de Milwaukee 4000458755 ( SSD1100X )
Onderdelen lijst van de Milwaukee 4000458755 ( SSD1100X )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Ball Bearing | ||||
| 0001 | 02040845 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0001 | 2040845 | 5.00 | 6.05 | |
| Kogellager | ||||
| 0002 | 02041020 | 10.37 | 12.55 | |
| BALL BEARING | ||||
| 0002 | 2041020 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0003 | 02041516 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0003 | 2041516 | 5.00 | 6.05 | |
| NAALDLAGER | ||||
| 0005 | 02501640 | 16.43 | 19.88 | |
| NEEDLE BEARING | ||||
| 0005 | 2501640 | 5.00 | 6.05 | |
| SCREW (4 benodigd) | ||||
| 0006 | 5888309 | 1.00 | 1.21 | |
| Excentrische as | ||||
| 0007 | 06080017 | 1.90 | 2.30 | |
| ECCENTRIC SHAFT | ||||
| 0007 | 6080017 | 1.00 | 1.21 | |
| PIN (2 benodigd) | ||||
| 0008 | 6650135 | 1.00 | 1.21 | |
| AXLE | ||||
| 0010 | 6650145 | 2.50 | 3.02 | |
| SCREW TORX SCREW | ||||
| 0013 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (13 benodigd) | ||||
| 0013 | 6825314 | 1.00 | 1.21 | |
| SCREW TORX SCREW | ||||
| 0014 | 06825411 | 1.90 | 2.30 | |
| SCREW TORX SCREW (5 benodigd) | ||||
| 0014 | 6825411 | 1.00 | 1.21 | |
| SCREW | ||||
| 0015 | 6827270 | 1.00 | 1.21 | |
| SCREW (2 benodigd) | ||||
| 0016 | 6827326 | 1.00 | 1.21 | |
| SCREW | ||||
| 0017 | 6827410 | 1.00 | 1.21 | |
| SCREW (4 benodigd) | ||||
| 0018 | 6828870 | 1.00 | 1.21 | |
| RATING PLATE | ||||
| 0021 | 4931416716 | 1.80 | 2.18 | |
| ARMATURE | ||||
| 0023 | 16340305 | 87.12 | 105.42 | |
| ELECTRIC FIELD | ||||
| 0025 | 18320300 | 50.69 | 61.33 | |
| CARBON HOLDER | ||||
| 0028 | 22200055 | 10.80 | 13.07 | |
| CABLE | ||||
| 0029 | 22644523 | 36.43 | 44.08 | |
| GEAR BOX HOUSING | ||||
| 0038 | 28140045 | 22.18 | 26.84 | |
| GEAR BOX HOUSING | ||||
| 0039 | 28140046 | 19.01 | 23.00 | |
| AIR FLOW PLATE | ||||
| 0040 | 31050195 | 4.49 | 5.43 | |
| LEFT HANDLE HALF | ||||
| 0042 | 31440810 | 9.91 | 11.99 | |
| RIGHT HANDLE HALF | ||||
| 0043 | 31440815 | 9.00 | 10.89 | |
| MOTOR HOUSING | ||||
| 0044 | 31500290 | 17.42 | 21.08 | |
| VERSTELBARE TANDWIEL PAAR | ||||
| 0045 | 32050022 | 23.76 | 28.75 | |
| Vergrendelring | ||||
| 0046 | 34600810 | 5.40 | 6.53 | |
| SPINDLE KIT | ||||
| 0048 | 38500076 | 17.11 | 20.70 | |
| CUP SPRING | ||||
| 0049 | 40500596 | 5.68 | 6.87 | |
| SPACER | ||||
| 0052 | 42400076 | 5.40 | 6.53 | |
| ROLL | ||||
| 0053 | 42402052 | 5.40 | 6.53 | |
| ECCENTRIC WHEEL | ||||
| 0056 | 14090190 | 43.32 | 52.42 | |
| PLATE | ||||
| 0058 | 43060025 | 1.80 | 2.18 | |
| PLATE | ||||
| 0059 | 43060030 | 5.40 | 6.53 | |
| ECCENTRIC SHEAVE | ||||
| 0060 | 43560045 | 5.68 | 6.87 | |
| INTERLOCK ELEMENT | ||||
| 0062 | 4931461444 | 26.93 | 32.59 | |
| RESTRICTOR | ||||
| 0064 | 44660280 | 1.90 | 2.30 | |
| BEARING END PLATE | ||||
| 0065 | 44661070 | 5.40 | 6.53 | |
| CABLE ENTRY SLEEVE | ||||
| 0067 | 44760210 | 1.90 | 2.30 | |
| Glijlager | ||||
| 0068 | 14860105 | 28.88 | 34.94 | |
| SEAL | ||||
| 0071 | 45060230 | 5.40 | 6.53 | |
| INSULATOR | ||||
| 0073 | 45122056 | 14.40 | 17.42 | |
| STOP | ||||
| 0076 | 45160030 | 6.31 | 7.64 | |
| GEARBOX BEHUIZING | ||||
| 0079 | 14300145 | 44.47 | 53.81 | |
| GEARBOX BEHUIZING voor Zaagblad | ||||
| 0080 | 14300146 | 36.96 | 44.72 | |
| CAPACITOR | ||||
| 0081 | 22330035 | 9.91 | 11.99 | |
| AANSLUITING | ||||
| 0082 | 22560451 | 3.60 | 4.36 | |
| CARRYING CASE | ||||
| 0083 | 42552055 | 49.10 | 59.41 | |
| ADAPTER GB 240V (for EU round) | ||||
| 0084 | 4931392301 | 10.80 | 13.07 | |
| SWITCH ASSEMBLY | ||||
| 0100 | 4931447859 | 42.77 | 51.75 | |
