Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000428901 ( SSPE1500X )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

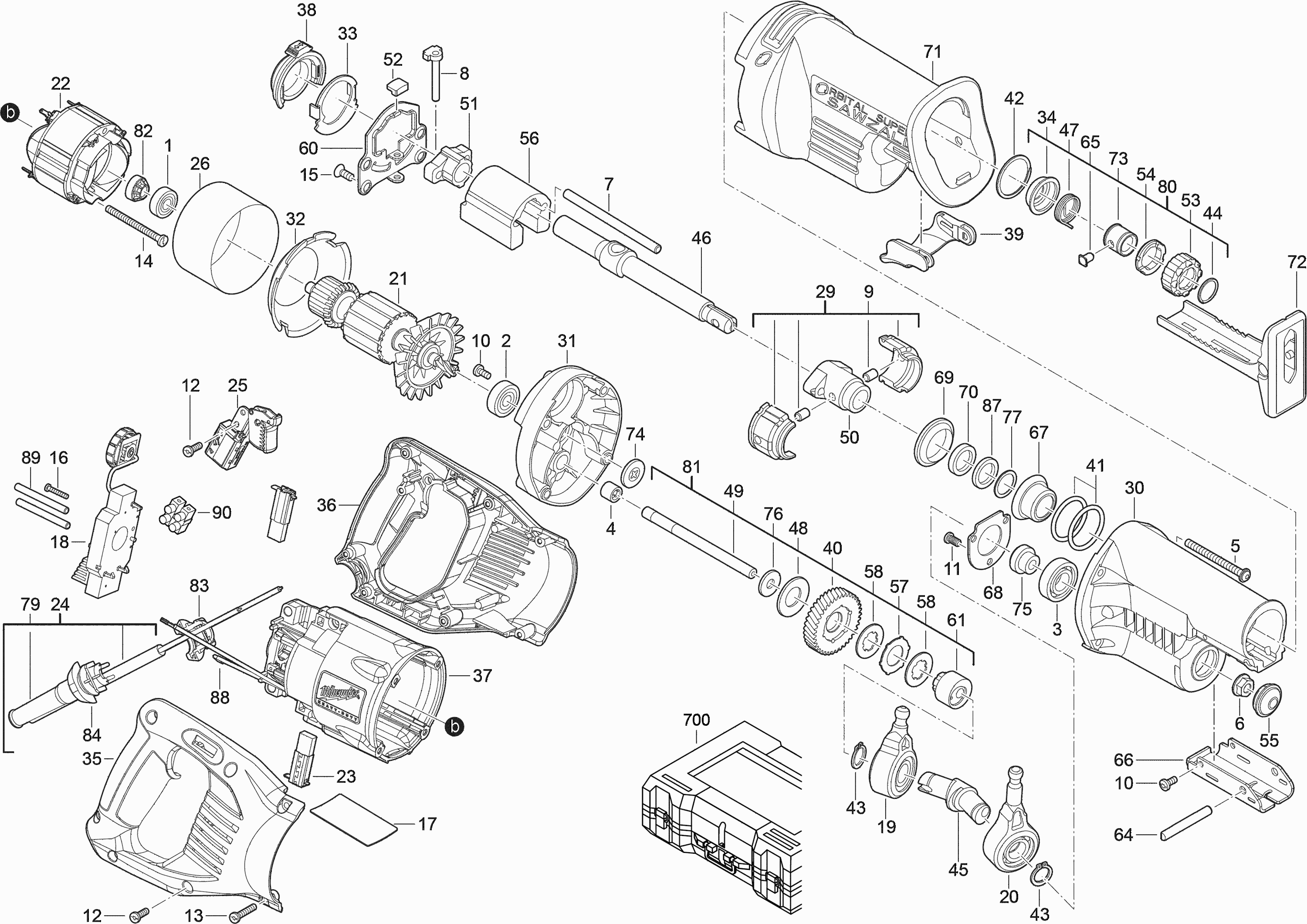

Tekeningen van de Milwaukee 4000428901 ( SSPE1500X )
Onderdelen lijst van de Milwaukee 4000428901 ( SSPE1500X )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Ball Bearing | ||||
| 0001 | 02040845 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0001 | 2040845 | 5.00 | 6.05 | |
| Kogellager | ||||
| 0002 | 02040915 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0002 | 2040915 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0003 | 02041511 | 12.10 | 14.64 | |
| BALL BEARING | ||||
| 0003 | 2041511 | 7.00 | 8.47 | |
| NAALDLAGER | ||||
| 0004 | 02502150 | 10.37 | 12.55 | |
| NEEDLE BEARING | ||||
| 0004 | 2502150 | 5.00 | 6.05 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0005 | 5880302 | |||
| NUT | ||||
| 0006 | 6553790 | 1.00 | 1.21 | |
| DOWEL PIN | ||||
| 0007 | 06650045 | 4.32 | 5.23 | |
| DOWEL PIN (2 benodigd) | ||||
| 0007 | 6650045 | 2.50 | 3.02 | |
| BOLT | ||||
| 0008 | 43360125 | 6.31 | 7.64 | |
| SCREW (3 benodigd) | ||||
| 0010 | 6827253 | 1.00 | 1.21 | |
| SCREW (3 benodigd) | ||||
| 0011 | 6827255 | 1.00 | 1.21 | |
| SCREW | ||||
| 0012 | 6827270 | 1.00 | 1.21 | |
| SCREW (2 benodigd) | ||||
| 0013 | 6827326 | 1.00 | 1.21 | |
| SCHROEF 8-16X2-1/4 PAN PLAS | ||||
| 0014 | 06827453 | 1.90 | 2.30 | |
| SCREW 8-16X2-1/4 PAN PLAS (2 benodigd) | ||||
| 0014 | 6827453 | 1.00 | 1.21 | |
| SCREW (4 benodigd) | ||||
| 0015 | 6828870 | 1.00 | 1.21 | |
| SCREW | ||||
| 0016 | 4931433532 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0017 | 4931446922 | 1.80 | 2.18 | |
| ELECTRONIC ELEMENT | ||||
| 0018 | 4931433535 | 53.86 | 65.17 | |
| Excentrische Schijf | ||||
| 0019 | 14670126 | 50.25 | 60.80 | |
| Excentrische Schijf | ||||
| 0020 | 14670136 | 47.94 | 58.01 | |
| ARMATURE ASSEMBLY | ||||
| 0021 | 4931433537 | 87.12 | 105.42 | |
| ELECTRIC FIELD | ||||
| 0022 | 4931433539 | 52.27 | 63.25 | |
| CARBON BRUSH | ||||
| 0023 | 4931433541 | 10.80 | 13.07 | |
| CABLE | ||||
| 0024 | 22644523 | 36.43 | 44.08 | |
| CONNECTION CABLE | ||||
| 0024 | 4931433543 | 28.51 | 34.50 | |
| SWITCH | ||||
| 0025 | 4931433545 | 22.18 | 26.84 | |
| CARDBOARD SLEEVE | ||||
| 0026 | 4931433546 | 5.40 | 6.53 | |
| BEARING BUSH HALF | ||||
| 0029 | 14300080 | 6.94 | 8.40 | |
| GEAR BOX HOUSING | ||||
| 0030 | 28142600 | 23.76 | 28.75 | |
| PLATE | ||||
| 0031 | 28282600 | 15.29 | 18.50 | |
| STOP DISC | ||||
| 0032 | 31050155 | 4.49 | 5.43 | |
| PLATE | ||||
| 0033 | 31110130 | 5.40 | 6.53 | |
| RIGHT HANDLE HALF | ||||
| 0035 | 31442090 | 10.80 | 13.07 | |
| LEFT HANDLE HALF | ||||
| 0036 | 31442095 | 10.80 | 13.07 | |
| MOTOR HOUSING | ||||
| 0037 | 4931433547 | 38.02 | 46.00 | |
| LEVER | ||||
| 0038 | 31520045 | 5.40 | 6.53 | |
| SHOE REL,LEVER KIT | ||||
| 0039 | 31520090 | 5.40 | 6.53 | |
| GEAR | ||||
| 0040 | 32402050 | 13.51 | 16.35 | |
| O-RING | ||||
| 0041 | 34400040 | 1.90 | 2.30 | |
| RETAINING RING | ||||
| 0042 | 34600125 | 1.90 | 2.30 | |
| RING | ||||
| 0043 | 34601315 | 1.80 | 2.18 | |
| SHAFT | ||||
| 0045 | 36920701 | 19.01 | 23.00 | |
| SPINDLE | ||||
| 0046 | 38506400 | 45.94 | 55.59 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0047 | 40500162 | |||
| DISC SPRING | ||||
| 0048 | 40508850 | 4.49 | 5.43 | |
| REDUCT, GEAR SHAFT | ||||
| 0049 | 42120190 | 7.20 | 8.71 | |
| ADAPTER SLEEVE | ||||
| 0050 | 42240066 | 12.60 | 15.25 | |
| BEARING BUSH | ||||
| 0051 | 42240525 | 9.00 | 10.89 | |
| RUBBER BUFFER | ||||
| 0052 | 42380055 | 5.40 | 6.53 | |
| BEARING COVER | ||||
| 0055 | 42520380 | 1.90 | 2.30 | |
| BALANCE WEIGHT | ||||
| 0056 | 42870180 | 16.20 | 19.60 | |
| PLATE | ||||
| 0057 | 43060676 | 1.80 | 2.18 | |
| DISC PLATE | ||||
| 0058 | 43060685 | 5.40 | 6.53 | |
| ECCENTRIC DISC | ||||
| 0060 | 43560620 | 5.40 | 6.53 | |
| BUSH | ||||
| 0061 | 43780577 | 9.00 | 10.89 | |
| Pin | ||||
| 0064 | 44601635 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0066 | 44660880 | 4.49 | 5.43 | |
| PROTECTIVE CAP | ||||
| 0067 | 44860035 | 5.68 | 6.87 | |
| BEARING CAGE | ||||
| 0068 | 44860655 | 5.40 | 6.53 | |
| SEAL | ||||
| 0069 | 45060110 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0070 | 45060475 | 4.49 | 5.43 | |
| Insulator | ||||
| 0071 | 45120700 | 12.60 | 15.25 | |
| DISTANCE HOLDER | ||||
| 0072 | 45160645 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0074 | 45280555 | 5.40 | 6.53 | |
| SPACER | ||||
| 0075 | 45361445 | 1.80 | 2.18 | |
| WASHER | ||||
| 0076 | 45881555 | 1.80 | 2.18 | |
| WASHER | ||||
| 0077 | 45888577 | 1.90 | 2.30 | |
| CABLE ENTRY SLEEVE | ||||
| 0079 | 44760210 | 1.90 | 2.30 | |
| INTERLOCK ELEMENT | ||||
| 0080 | 4931461444 | 26.93 | 32.59 | |
| COUPLING | ||||
| 0081 | 14080075 | 36.43 | 44.08 | |
| MAGNETIC DISC | ||||
| 0082 | 4931433549 | 5.40 | 6.53 | |
| Klem | ||||
| 0083 | 31170260 | 5.40 | 6.53 | |
| Klem | ||||
| 0084 | 31170265 | 5.40 | 6.53 | |
| FELT PACKING | ||||
| 0087 | 45060501 | 1.90 | 2.30 | |
| CABLE SET | ||||
| 0088 | 23940305 | 5.40 | 6.53 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0089 | 4931433551 | |||
| KLEM | ||||
| 0090 | 22560625 | 4.49 | 5.43 | |
| CARRYING CASE | ||||
| 0700 | 42552055 | 49.10 | 59.41 | |
