Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000503351 (SSPE1500X)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

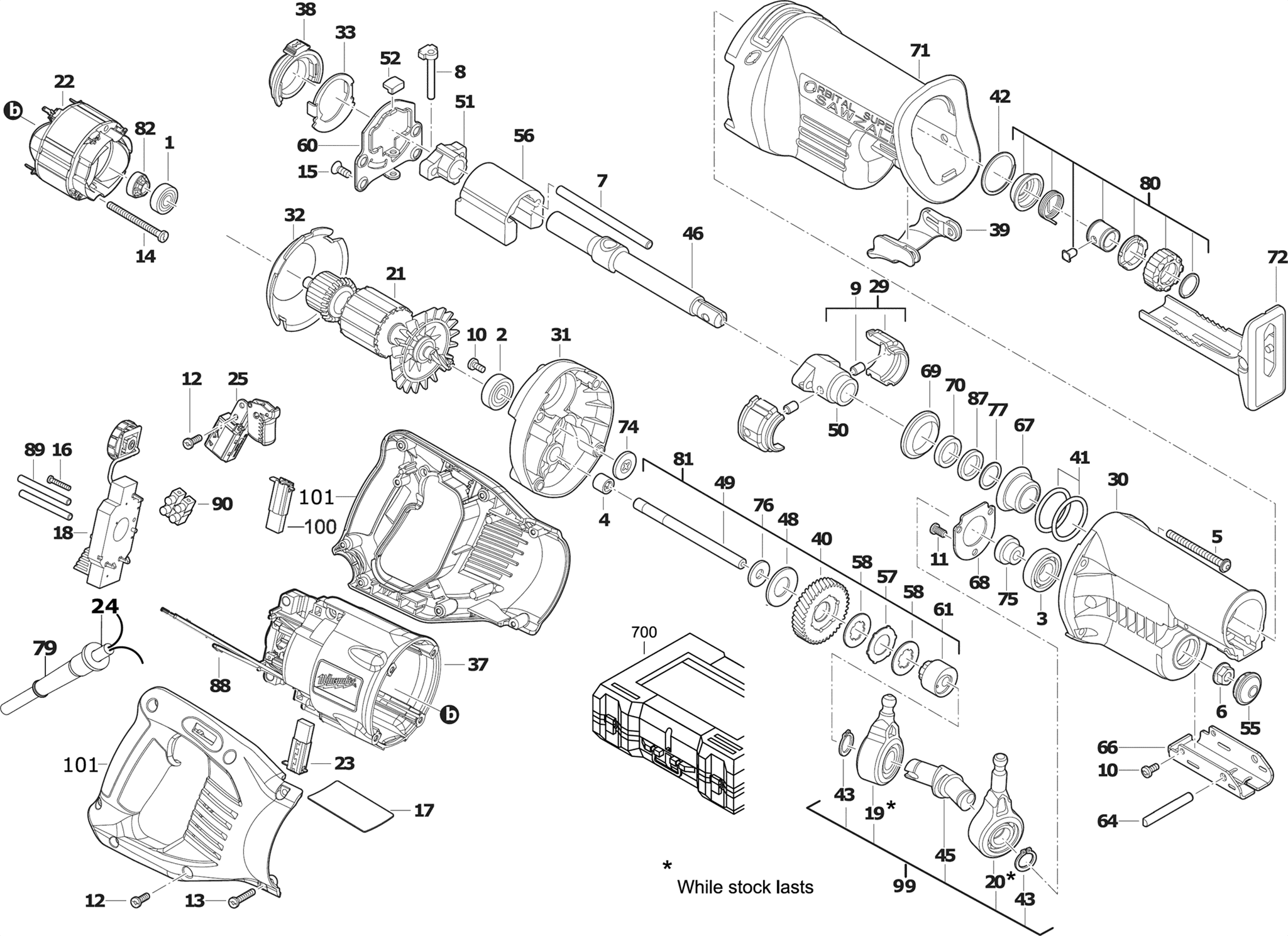

Tekeningen van de Milwaukee 4000503351 (SSPE1500X)
Onderdelen lijst van de Milwaukee 4000503351 (SSPE1500X)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Ball Bearing | ||||
| 0001 | 02040845 | 8.64 | 10.45 | |
| Kogellager | ||||
| 0002 | 02040915 | 9.84 | 11.91 | |
| BALL BEARING | ||||
| 0003 | 02041511 | 12.10 | 14.64 | |
| NAALDLAGER | ||||
| 0004 | 02502150 | 10.37 | 12.55 | |
| SCREW (4 benodigd) | ||||
| 0005 | 4931506351 | 1.20 | 1.45 | |
| NUT | ||||
| 0006 | 4931506352 | 1.20 | 1.45 | |
| DOWEL PIN | ||||
| 0007 | 06650045 | 4.54 | 5.49 | |
| BOLT | ||||
| 0008 | 43360125 | 11.00 | 13.31 | |
| BOLT (2 benodigd) | ||||
| 0009 | 06650505 | 4.20 | 5.08 | |
| SCREW | ||||
| 0010 | 06827253 | 3.00 | 3.63 | |
| SCREW (3 benodigd) | ||||
| 0011 | 06827255 | 3.00 | 3.63 | |
| SCREW | ||||
| 0012 | 06827270 | 3.00 | 3.63 | |
| SCREW | ||||
| 0013 | 4931436250 | 3.00 | 3.63 | |
| SCHROEF 8-16X2-1/4 PAN PLAS | ||||
| 0014 | 06827453 | 3.00 | 3.63 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0015 | 4931453200 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 0016 | 4931433532 | |||
| RATING PLATE | ||||
| 0017 | 4931506358 | 1.20 | 1.45 | |
| ELECTRONIC ELEMENT | ||||
| 0018 | 4931433535 | 53.86 | 65.17 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0019 | 14670126 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 0020 | 14670136 | |||
| ARMATURE ASSEMBLY | ||||
| 0021 | 4931433537 | 87.12 | 105.42 | |
| ELECTRIC FIELD | ||||
| 0022 | 4931433539 | 57.20 | 69.21 | |
| CARBON BRUSH | ||||
| 0023 | 4931433541 | 11.35 | 13.73 | |
| CABLE | ||||
| 0024 | 22644523 | 36.43 | 44.08 | |
| SWITCH | ||||
| 0025 | 4931433545 | 22.18 | 26.84 | |
| BEARING BUSH HALF | ||||
| 0029 | 14300080 | 11.40 | 13.79 | |
| GEAR BOX HOUSING | ||||
| 0030 | 28142600 | 24.13 | 29.20 | |
| PLATE | ||||
| 0031 | 28282600 | 15.29 | 18.50 | |
| STOP DISC | ||||
| 0032 | 31050155 | 4.80 | 5.81 | |
| PLATE | ||||
| 0033 | 31110130 | 6.00 | 7.26 | |
| MOTOR HOUSING | ||||
| 0037 | 4931433547 | 38.02 | 46.00 | |
| LEVER | ||||
| 0038 | 31520045 | 6.00 | 7.26 | |
| SHOE REL,LEVER KIT | ||||
| 0039 | 31520090 | 5.40 | 6.53 | |
| GEAR | ||||
| 0040 | 32402050 | 13.51 | 16.35 | |
| O-RING | ||||
| 0041 | 34400040 | 3.00 | 3.63 | |
| RETAINING RING | ||||
| 0042 | 34600125 | 3.60 | 4.36 | |
| RING | ||||
| 0043 | 34601315 | 3.00 | 3.63 | |
| SHAFT | ||||
| 0045 | 36920701 | 37.40 | 45.25 | |
| SPINDLE | ||||
| 0046 | 38506400 | 82.50 | 99.82 | |
| DISC SPRING | ||||
| 0048 | 40508850 | 4.54 | 5.49 | |
| REDUCT, GEAR SHAFT | ||||
| 0049 | 42120190 | 7.20 | 8.71 | |
| ADAPTER SLEEVE | ||||
| 0050 | 42240066 | 12.60 | 15.25 | |
| BEARING BUSH | ||||
| 0051 | 42240525 | 9.00 | 10.89 | |
| RUBBER BUFFER | ||||
| 0052 | 42380055 | 5.40 | 6.53 | |
| BEARING COVER | ||||
| 0055 | 42520380 | 3.00 | 3.63 | |
| BALANCE WEIGHT | ||||
| 0056 | 42870180 | 16.20 | 19.60 | |
| PLATE | ||||
| 0057 | 43060676 | 3.00 | 3.63 | |
| DISC PLATE | ||||
| 0058 | 43060685 | 5.40 | 6.53 | |
| ECCENTRIC DISC | ||||
| 0060 | 43560620 | 5.40 | 6.53 | |
| BUSH | ||||
| 0061 | 43780577 | 22.00 | 26.62 | |
| PIN | ||||
| 0064 | 4931506354 | 3.60 | 4.36 | |
| HOLDER | ||||
| 0066 | 44660880 | 4.49 | 5.43 | |
| PROTECTIVE CAP | ||||
| 0067 | 44860035 | 6.82 | 8.25 | |
| BEARING CAGE | ||||
| 0068 | 44860655 | 5.40 | 6.53 | |
| SEAL | ||||
| 0069 | 45060110 | 6.00 | 7.26 | |
| SEAL RING | ||||
| 0070 | 45060475 | 4.49 | 5.43 | |
| Insulator | ||||
| 0071 | 45120700 | 20.35 | 24.62 | |
| DISTANCE HOLDER | ||||
| 0072 | 45160645 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0074 | 45280555 | 5.40 | 6.53 | |
| SPACER | ||||
| 0075 | 4931506355 | 3.60 | 4.36 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0076 | 45881555 | |||
| WASHER | ||||
| 0077 | 45888577 | 3.00 | 3.63 | |
| CABLE ENTRY SLEEVE | ||||
| 0079 | 44760210 | 3.00 | 3.63 | |
| INTERLOCK ELEMENT | ||||
| 0080 | 4931461444 | 26.93 | 32.59 | |
| COUPLING | ||||
| 0081 | 14080075 | 45.65 | 55.24 | |
| MAGNETIC DISC | ||||
| 0082 | 4931433549 | 5.40 | 6.53 | |
| FELT PACKING | ||||
| 0087 | 45060501 | 3.00 | 3.63 | |
| CABLE SET | ||||
| 0088 | 23940305 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0089 | 4931506359 | 3.60 | 4.36 | |
| KLEM | ||||
| 0090 | 22560625 | 4.80 | 5.81 | |
| ECCENTRIC DISC | ||||
| 0099 | 4931507225 | 110.00 | 133.10 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0100 | 4931511228 | |||
| HANDLE SET | ||||
| 0101 | 4931506357 | 23.10 | 27.95 | |
| CARRYING CASE | ||||
| 0700 | 42552055 | 49.10 | 59.41 | |
