Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000393709 ( V28SX )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

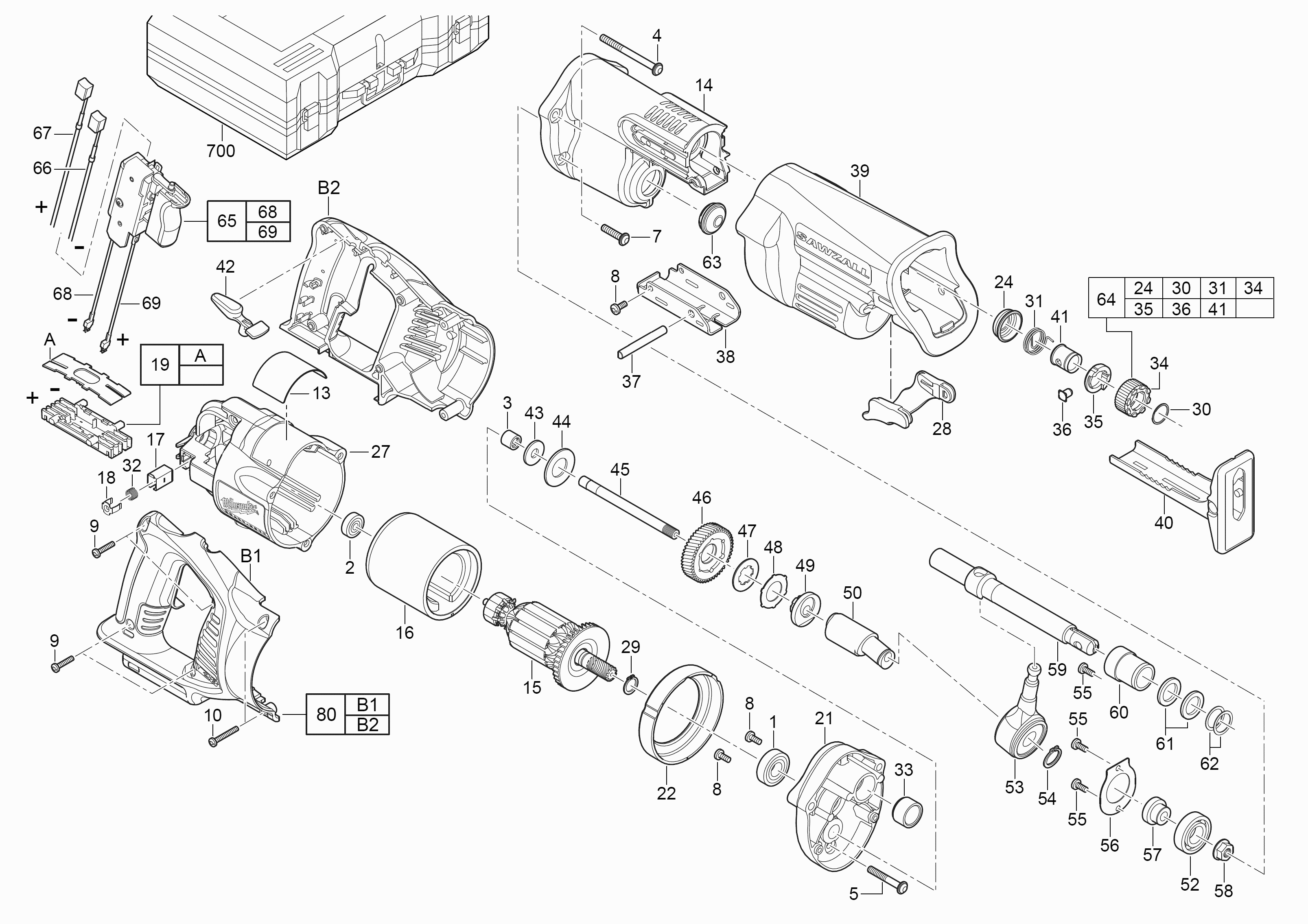

Tekeningen van de Milwaukee 4000393709 ( V28SX )
Onderdelen lijst van de Milwaukee 4000393709 ( V28SX )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0001 | 2040719 | |||
| BALL BEARING | ||||
| 0002 | 2045130 | 5.00 | 6.05 | |
| NEEDLE BEARING | ||||
| 0003 | 2502150 | 5.00 | 6.05 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0004 | 5880302 | |||
| SCREW (4 benodigd) | ||||
| 0005 | 5888309 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0007 | 6825363 | |||
| SCREW (3 benodigd) | ||||
| 0008 | 6827253 | 1.00 | 1.21 | |
| SCREW (9 benodigd) | ||||
| 0009 | 6827261 | 1.00 | 1.21 | |
| SCREW | ||||
| 0010 | 6827276 | 1.00 | 1.21 | |
| NAME PLATE | ||||
| 0013 | 12200718 | 1.90 | 2.30 | |
| GEAR BOX | ||||
| 0014 | 28140999 | 31.68 | 38.33 | |
| MOTOR ASSEMBLY | ||||
| 0015 | 4931453477 | 98.21 | 118.83 | |
| BRUSH HOLDER INSUL | ||||
| 0017 | 4931436655 | 1.90 | 2.30 | |
| BRUSH HOLDER | ||||
| 0018 | 22320400 | 5.40 | 6.53 | |
| CONNECTOR | ||||
| 0019 | 22560975 | 11.69 | 14.14 | |
| PLATE | ||||
| 0021 | 28280719 | 15.84 | 19.17 | |
| CLAMPING RING | ||||
| 0024 | 31150511 | 4.49 | 5.43 | |
| HANDLE HALF | ||||
| 0025 | 4931447201 | 30.10 | 36.42 | |
| MOTOR HOUSING | ||||
| 0027 | 31500019 | 9.00 | 10.89 | |
| SHOE REL,LEVER KIT | ||||
| 0028 | 31520090 | 5.40 | 6.53 | |
| RING | ||||
| 0029 | 34600920 | 5.40 | 6.53 | |
| Ring | ||||
| 0030 | 34603680 | 4.49 | 5.43 | |
| SPRING | ||||
| 0031 | 40500161 | 1.90 | 2.30 | |
| SPRING | ||||
| 0032 | 4931436640 | 1.90 | 2.30 | |
| BEARING | ||||
| 0033 | 42240620 | 1.80 | 2.18 | |
| CLAMPING RING | ||||
| 0034 | 42500076 | 9.00 | 10.89 | |
| CLAMPING RING | ||||
| 0035 | 42500077 | 5.40 | 6.53 | |
| PIN LOCK SPRING | ||||
| 0036 | 44600626 | 4.49 | 5.43 | |
| Pin | ||||
| 0037 | 44601635 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0038 | 44660880 | 4.49 | 5.43 | |
| Isolation Slafe | ||||
| 0039 | 561528003 | 12.60 | 15.25 | |
| DISTANCE HOLDER | ||||
| 0040 | 45160645 | 9.00 | 10.89 | |
| CLAMPING RING | ||||
| 0041 | 45220081 | 7.20 | 8.71 | |
| LEVER | ||||
| 0042 | 45240719 | 4.49 | 5.43 | |
| WASHER | ||||
| 0043 | 45881555 | 1.80 | 2.18 | |
| DISC SPRING | ||||
| 0044 | 40508850 | 4.49 | 5.43 | |
| AXLE WOBBLE | ||||
| 0045 | 42120155 | 9.91 | 11.99 | |
| GEAR | ||||
| 0046 | 32400719 | 9.00 | 10.89 | |
| DISC PLATE | ||||
| 0047 | 43060685 | 5.40 | 6.53 | |
| PLATE | ||||
| 0048 | 43060676 | 1.80 | 2.18 | |
| HUB | ||||
| 0049 | 43780525 | 1.80 | 2.18 | |
| AXLE WOBBLE | ||||
| 0050 | 4931441463 | 22.18 | 26.84 | |
| BALL BEARING | ||||
| 0052 | 2041510 | 7.00 | 8.47 | |
| WOBBLE DRIVE | ||||
| 0053 | 4931440445 | 35.80 | 43.32 | |
| RING | ||||
| 0054 | 34601315 | 1.80 | 2.18 | |
| SCREW (3 benodigd) | ||||
| 0055 | 6827253 | 1.00 | 1.21 | |
| BEARING CAGE | ||||
| 0056 | 44860055 | 5.40 | 6.53 | |
| SPACER | ||||
| 0057 | 45361445 | 1.80 | 2.18 | |
| NUT | ||||
| 0058 | 6553790 | 1.00 | 1.21 | |
| SPINDLE | ||||
| 0059 | 38500680 | 31.68 | 38.33 | |
| SPINDLE BEARING | ||||
| 0060 | 42240610 | 9.00 | 10.89 | |
| FELT PACKING | ||||
| 0061 | 45060501 | 1.90 | 2.30 | |
| WASHER | ||||
| 0062 | 45888577 | 1.90 | 2.30 | |
| BEARING COVER | ||||
| 0063 | 42520380 | 1.90 | 2.30 | |
| Fixtec-set Quik-lok Blade Clamp Kit | ||||
| 0064 | 14461011 | 15.84 | 19.17 | |
| Switch Kit | ||||
| 0065 | 4931433338 | 88.70 | 107.33 | |
| CARBON BRUSH | ||||
| 0066 | 22181719 | 4.49 | 5.43 | |
| CARBON BRUSH | ||||
| 0067 | 22180719 | 7.20 | 8.71 | |
| Relay Cable | ||||
| 0068 | 23940016 | 5.40 | 6.53 | |
| Relay Cable | ||||
| 0069 | 23940015 | 5.40 | 6.53 | |
| HANDLE HALF | ||||
| 0080 | 4931447201 | 30.10 | 36.42 | |
