Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000383861 ( WCE30110V )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

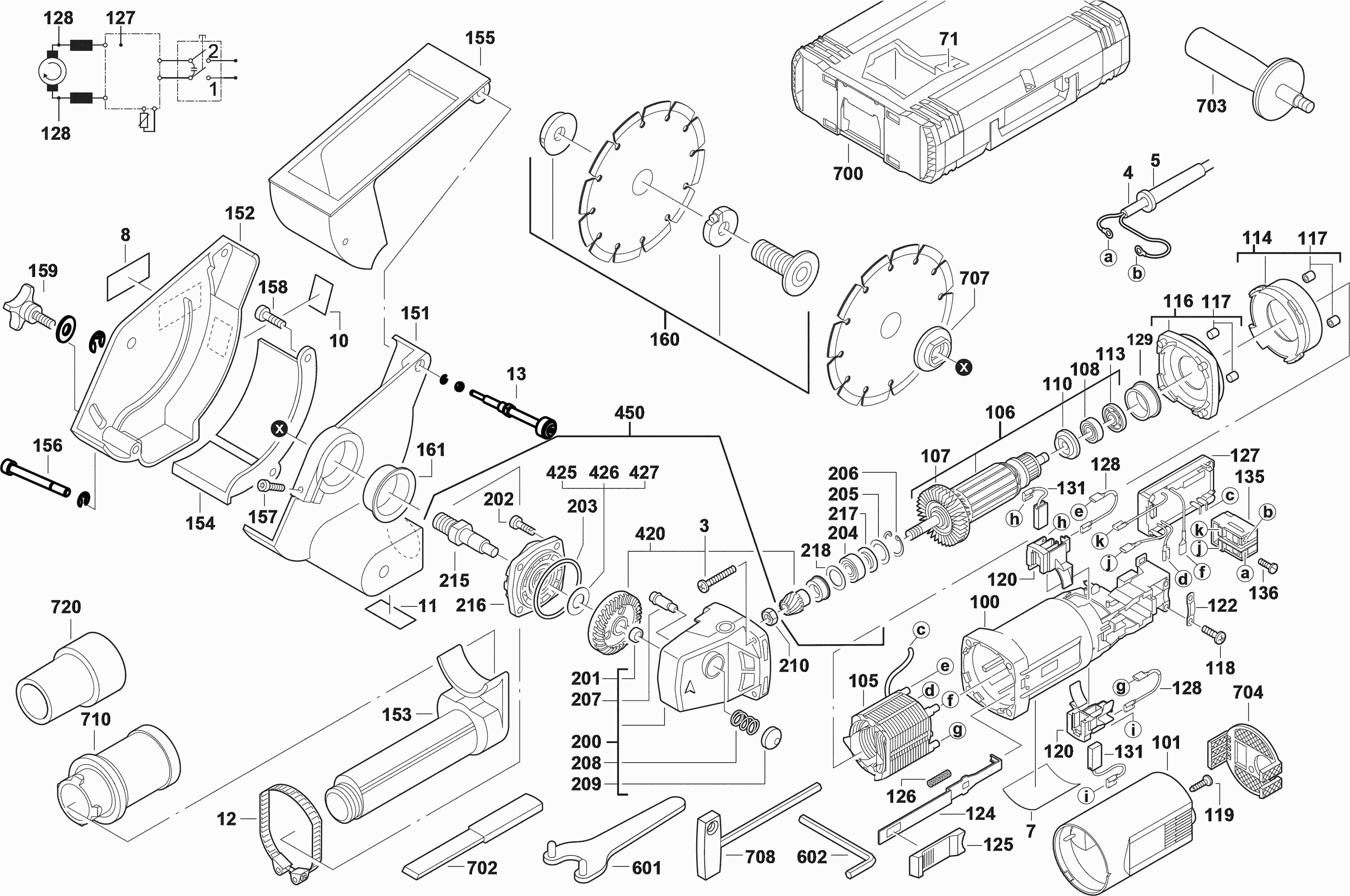

Tekeningen van de Milwaukee 4000383861 ( WCE30110V )
Onderdelen lijst van de Milwaukee 4000383861 ( WCE30110V )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW D 7981 3,9X28 | ||||
| 0003 | 4931622221 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931623831 | 28.51 | 34.50 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931206687 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0007 | 4931455686 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0007 | 4931476739 | 1.26 | 1.52 | |
| NAME PLATE | ||||
| 0008 | 4931383017 | 1.80 | 2.18 | |
| DATA PLATE | ||||
| 0010 | 4931334659 | 4.49 | 5.43 | |
| DATA PLATE | ||||
| 0011 | 4931334660 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0012 | 4931334664 | 19.01 | 23.00 | |
| THREADED PIN | ||||
| 0013 | 4931463109 | 52.27 | 63.25 | |
| SUPPORT ROLL | ||||
| 0013 | 4931449440 | 52.27 | 63.25 | |
| INSERT | ||||
| 0071 | 4931378697 | 28.51 | 34.50 | |
| HOUSING SET ASSY | ||||
| 0100 | 4931449153 | 26.40 | 31.94 | |
| HOUSING CAP | ||||
| 0101 | 4931407395 | 6.31 | 7.64 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426606 | 42.77 | 51.75 | |
| ARMATURE | ||||
| 0106 | 4931426515 | 74.45 | 90.08 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931901253 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| Magnetic Disc | ||||
| 0113 | 4931426570 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0114 | 4931326933 | 4.49 | 5.43 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| SCREW | ||||
| 0118 | 4931624538 | 1.80 | 2.18 | |
| SCREW D 7985 M 4X16 | ||||
| 0119 | 4931619914 | 1.80 | 2.18 | |
| BRUSH HOLDER | ||||
| 0120 | 4931326923 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0122 | 4931256500 | 5.40 | 6.53 | |
| Guide Piece | ||||
| 0124 | 4931326959 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0125 | 4931455746 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0126 | 4931326981 | 5.40 | 6.53 | |
| ELECTRONIC ELEMENT | ||||
| 0127 | 4931334228 | 68.11 | 82.41 | |
| WIRE | ||||
| 0128 | 4931623739 | 4.49 | 5.43 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| Carbon Brush Set | ||||
| 0131 | 4931392592 | 15.84 | 19.17 | |
| SWITCH | ||||
| 0135 | 4931326976 | 14.40 | 17.42 | |
| SCREW D 85 AM 3,5X5 | ||||
| 0136 | 4931617313 | 1.80 | 2.18 | |
| SUCTION CAP | ||||
| 0151 | 4931413634 | 95.04 | 115.00 | |
| SUCTION CAP | ||||
| 0151 | 4931476185 | 64.90 | 78.53 | |
| GUARD CAP | ||||
| 0152 | 4931413635 | 60.19 | 72.83 | |
| CONNECTION | ||||
| 0153 | 4931476111 | 56.65 | 68.55 | |
| AIR DEFLECTOR RING | ||||
| 0154 | 4931334711 | 34.85 | 42.17 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0155 | 4931334712 | |||
| SCREW | ||||
| 0156 | 4931449441 | 12.60 | 15.25 | |
| SCREW | ||||
| 0157 | 4931622928 | 1.80 | 2.18 | |
| SCREW D 912 M 4X8 GAL | ||||
| 0158 | 4931617290 | 1.80 | 2.18 | |
| GRIP | ||||
| 0159 | 4931449442 | 22.18 | 26.84 | |
| CLAMPING SET | ||||
| 0160 | 4931449155 | 136.22 | 164.83 | |
| ISOLATION SLAFE | ||||
| 0161 | 4931362742 | 10.80 | 13.07 | |
| GEAR BOX | ||||
| 0200 | 4931412193 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| SCREW | ||||
| 0202 | 4931317532 | 1.80 | 2.18 | |
| COMPENSATING WASHER | ||||
| 0203 | 4931254894 | 1.80 | 2.18 | |
| GROOVED BALL BEAR, | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| DISC | ||||
| 0205 | 4931622761 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| NUT | ||||
| 0210 | 4931326952 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0215 | 4931409809 | 10.80 | 13.07 | |
| BEARING END PLATE | ||||
| 0216 | 4931385801 | 25.34 | 30.66 | |
| WASHER | ||||
| 0217 | 4931624287 | 1.80 | 2.18 | |
| WASHER | ||||
| 0218 | 4931362085 | 1.80 | 2.18 | |
| BEVEL GEAR PAIR | ||||
| 0420 | 4931369887 | 42.77 | 51.75 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0421 | 4931369773 | |||
| SEAL RING | ||||
| 0422 | 4931369774 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,1 | ||||
| 0425 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0426 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0427 | 4931624256 | 5.40 | 6.53 | |
| DRIVE GEAR | ||||
| 0450 | 4931391477 | 76.03 | 92.00 | |
| Opspansleutel, recht | ||||
| 0601 | 4932367712 | 8.16 | 9.87 | |
| SCREW DRIVER | ||||
| 0602 | 4931606753 | 1.80 | 2.18 | |
| Transportkoffer Milwaukee (maat 2) | ||||
| 0700 | 4932383162 | 67.96 | 82.23 | |
| Handle | ||||
| 0703 | 4932409546 | 12.10 | 14.64 | |
| Stofbeschermrooster | ||||
| 0704 | 4932329397 | 17.60 | 21.30 | |
| CLAMPING FLANGE | ||||
| 0707 | 4931348960 | 5.40 | 6.53 | |
| T-sleutel | ||||
| 0708 | 4931362928 | 5.00 | 6.05 | |
| Afzuigslangadapter | ||||
| 0710 | 4932362778 | 30.14 | 36.47 | |
| NOSEPIECE | ||||
| 0720 | 4931419658 | 17.42 | 21.08 | |
