Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000383851 ( WCE30 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

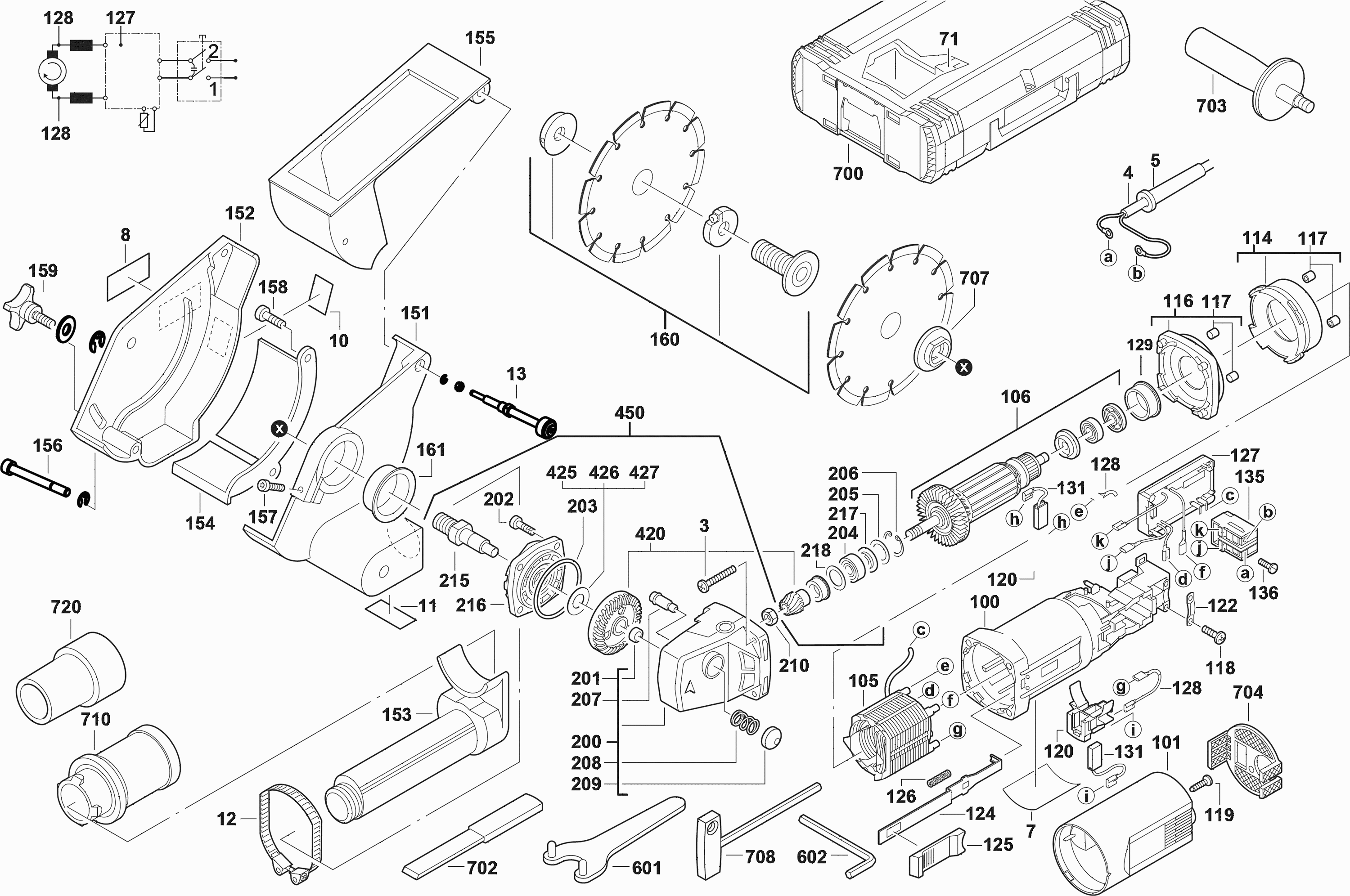

Tekeningen van de Milwaukee 4000383851 ( WCE30 )
Onderdelen lijst van de Milwaukee 4000383851 ( WCE30 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCREW D 7981 3,9X32 | ||||
| 0003 | 4931621515 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931623861 | 12.60 | 15.25 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931218785 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0007 | 4931383853 | 1.73 | 2.09 | |
| NAME PLATE | ||||
| 0008 | 4931383017 | 1.80 | 2.18 | |
| DATA PLATE | ||||
| 0010 | 4931334659 | 4.49 | 5.43 | |
| DATA PLATE | ||||
| 0011 | 4931334660 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0012 | 4931334664 | 19.01 | 23.00 | |
| SUPPORT ROLL | ||||
| 0013 | 4931449440 | 52.27 | 63.25 | |
| THREADED PIN | ||||
| 0013 | 4931463109 | 52.27 | 63.25 | |
| INSERT | ||||
| 0071 | 4931378697 | 28.51 | 34.50 | |
| HOUSING SET ASSY | ||||
| 0100 | 4931449153 | 26.40 | 31.94 | |
| HOUSING CAP | ||||
| 0101 | 4931407395 | 6.31 | 7.64 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426582 | 29.70 | 35.94 | |
| ARMATURE | ||||
| 0106 | 4931442662 | 79.20 | 95.83 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| Ball Bearing | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| Magnetic Disc | ||||
| 0113 | 4931426570 | 5.40 | 6.53 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0114 | 1000000003 | |||
| INTERMEDIATE FLANGE | ||||
| 0116 | 4931369787 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| SCREW | ||||
| 0118 | 4931624538 | 1.80 | 2.18 | |
| SCREW D 7985 M 4X16 | ||||
| 0119 | 4931619914 | 1.80 | 2.18 | |
| BRUSH HOLDER | ||||
| 0120 | 4931326923 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0122 | 4931256500 | 5.40 | 6.53 | |
| Guide Piece | ||||
| 0124 | 4931326959 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0125 | 4931455746 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0126 | 4931326981 | 5.40 | 6.53 | |
| ELECTRONIC ELEMENT | ||||
| 0127 | 4931362699 | 47.52 | 57.50 | |
| WIRE | ||||
| 0128 | 4931623738 | 4.49 | 5.43 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931369477 | 14.40 | 17.42 | |
| SWITCH | ||||
| 0135 | 4931326976 | 14.40 | 17.42 | |
| SCREW D 85 AM 3,5X5 | ||||
| 0136 | 4931617313 | 1.80 | 2.18 | |
| SUCTION CAP | ||||
| 0151 | 4931413634 | 95.04 | 115.00 | |
| GUARD CAP | ||||
| 0152 | 4931413635 | 60.19 | 72.83 | |
| CONNECTION | ||||
| 0153 | 4931476111 | 56.65 | 68.55 | |
| AIR DEFLECTOR RING | ||||
| 0154 | 4931334711 | 34.85 | 42.17 | |
| NMLB VERV 4931476113@64475 | ||||
| 0155 | 4931334712 | 32.00 | 38.72 | |
| SCREW | ||||
| 0156 | 4931449441 | 12.60 | 15.25 | |
| SCREW | ||||
| 0157 | 4931622928 | 1.80 | 2.18 | |
| SCREW D 912 M 4X8 GAL | ||||
| 0158 | 4931617290 | 1.80 | 2.18 | |
| GRIP | ||||
| 0159 | 4931449442 | 22.18 | 26.84 | |
| CLAMPING SET | ||||
| 0160 | 4931449155 | 136.22 | 164.83 | |
| ISOLATION SLAFE | ||||
| 0161 | 4931362742 | 10.80 | 13.07 | |
| GEAR BOX | ||||
| 0200 | 4931412193 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| SCREW | ||||
| 0202 | 4931317532 | 1.80 | 2.18 | |
| COMPENSATING WASHER | ||||
| 0203 | 4931254894 | 1.80 | 2.18 | |
| GROOVED BALL BEAR, | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| DISC | ||||
| 0205 | 4931622761 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| NUT | ||||
| 0210 | 4931326952 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0215 | 4931409809 | 10.80 | 13.07 | |
| BEARING END PLATE | ||||
| 0216 | 4931385801 | 25.34 | 30.66 | |
| WASHER | ||||
| 0217 | 4931624287 | 1.80 | 2.18 | |
| WASHER | ||||
| 0218 | 4931362085 | 1.80 | 2.18 | |
| BEVEL GEAR PAIR | ||||
| 0420 | 4931369887 | 42.77 | 51.75 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0421 | 4931369773 | |||
| SEAL RING | ||||
| 0422 | 4931369774 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,1 | ||||
| 0425 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0426 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0427 | 4931624256 | 5.40 | 6.53 | |
| DRIVE GEAR | ||||
| 0450 | 4931391477 | 76.03 | 92.00 | |
| Opspansleutel, recht | ||||
| 0601 | 4932367712 | 8.16 | 9.87 | |
| SCREW DRIVER | ||||
| 0602 | 4931606753 | 1.80 | 2.18 | |
| Transportkoffer Milwaukee (maat 2) | ||||
| 0700 | 4932383162 | 67.96 | 82.23 | |
| Handle | ||||
| 0703 | 4932409546 | 12.10 | 14.64 | |
| Stofbeschermrooster | ||||
| 0704 | 4932329397 | 17.60 | 21.30 | |
| CLAMPING FLANGE | ||||
| 0707 | 4931348960 | 5.40 | 6.53 | |
| T-sleutel | ||||
| 0708 | 4931362928 | 5.00 | 6.05 | |
| Afzuigslangadapter | ||||
| 0710 | 4932362778 | 30.14 | 36.47 | |
| NOSEPIECE | ||||
| 0720 | 4931419658 | 17.42 | 21.08 | |
