Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000393367 ( WCE65-0 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

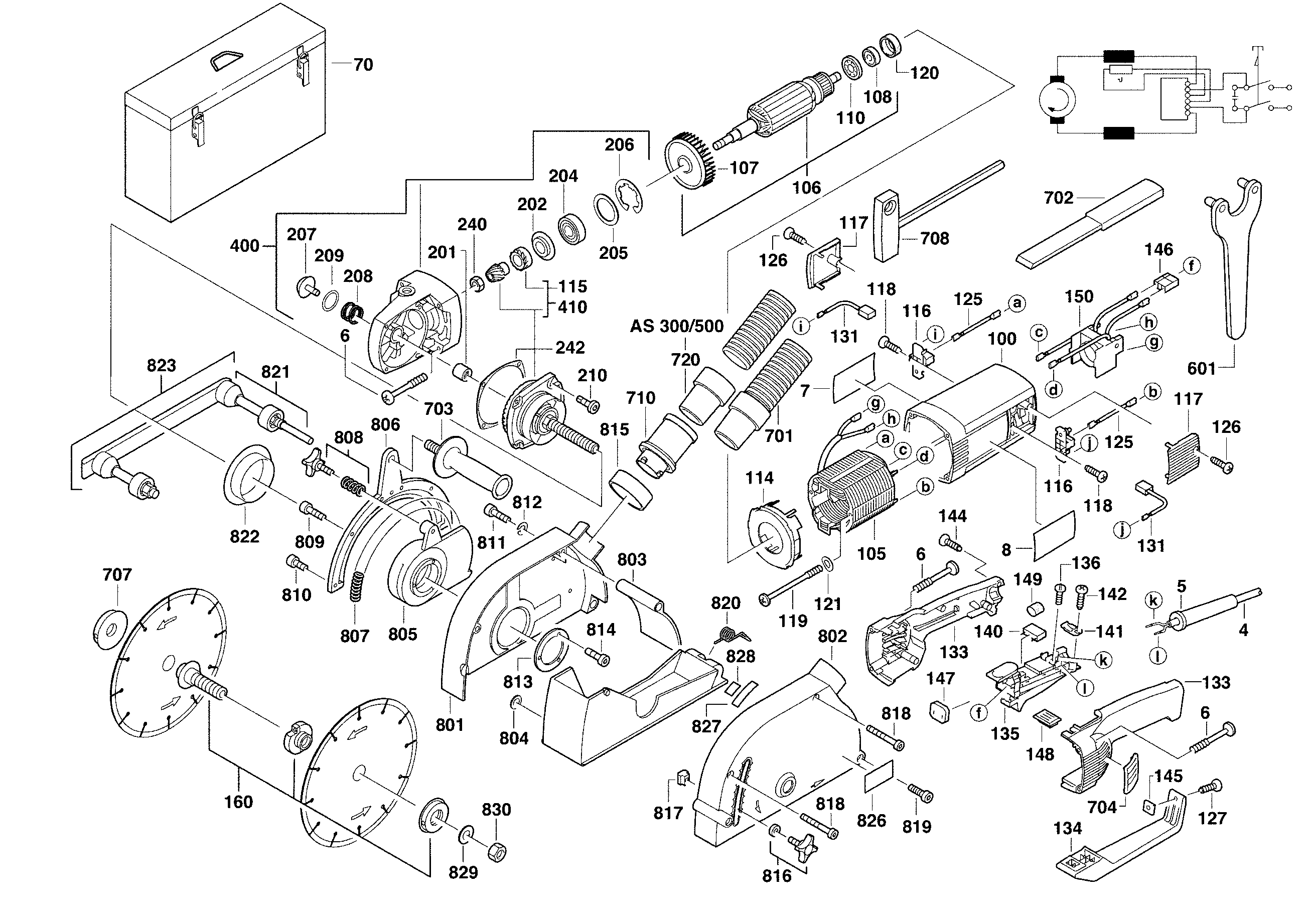

Tekeningen van de Milwaukee 4000393367 ( WCE65-0 )
Onderdelen lijst van de Milwaukee 4000393367 ( WCE65-0 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931455392 | 17.42 | 21.08 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931217556 | 4.49 | 5.43 | |
| SCREW N874101-1 SHR C-K5X45/20 KOMBITORX | ||||
| 0006 | 4931622765 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0007 | 4931449127 | 1.80 | 2.18 | |
| TYPE PLATE | ||||
| 0008 | 4931378792 | 4.49 | 5.43 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0070 | 4932383040 | |||
| MOTOR HOUSING | ||||
| 0100 | 4931362790 | 15.84 | 19.17 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426643 | 66.53 | 80.50 | |
| ARMATURE | ||||
| 0106 | 4931426282 | 95.04 | 115.00 | |
| FAN | ||||
| 0107 | 4931334394 | 4.49 | 5.43 | |
| Ball Bearing | ||||
| 0108 | 4931341741 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0110 | 4931329084 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0114 | 4931326156 | 5.40 | 6.53 | |
| GREASE RETAIN,DISC | ||||
| 0115 | 4931329118 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0116 | 4931381694 | 5.40 | 6.53 | |
| COVER | ||||
| 0117 | 4931378798 | 4.49 | 5.43 | |
| SCREW | ||||
| 0118 | 4931624538 | 1.80 | 2.18 | |
| SCREW | ||||
| 0119 | 4931331734 | 1.80 | 2.18 | |
| RUBBER SLEEVE | ||||
| 0120 | 4931329086 | 1.80 | 2.18 | |
| SPRING WASHER D 137 B 4 | ||||
| 0121 | 4931619992 | 1.80 | 2.18 | |
| WIRE | ||||
| 0125 | 4931622831 | 4.49 | 5.43 | |
| SCREW | ||||
| 0126 | 4931624537 | 1.80 | 2.18 | |
| Niet meer leverbaar, geen vervanging | ||||
| 0127 | 4931622933 | |||
| CARBON BRUSH SET | ||||
| 0131 | 4931369479 | 14.40 | 17.42 | |
| YOKE | ||||
| 0134 | 4931383035 | 7.20 | 8.71 | |
| SWITCH | ||||
| 0135 | 4931383044 | 31.68 | 38.33 | |
| SCREW N874187 M4X8 | ||||
| 0136 | 4931940611 | 1.80 | 2.18 | |
| CAPACITOR | ||||
| 0140 | 4931329272 | 4.49 | 5.43 | |
| CABLE COLLAR | ||||
| 0141 | 4931329273 | 4.49 | 5.43 | |
| SCREW | ||||
| 0142 | 4931624537 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0144 | 4931624515 | 1.80 | 2.18 | |
| CLAMPING PIECE | ||||
| 0145 | 4931300231 | 4.49 | 5.43 | |
| SWITCH MOUNTING | ||||
| 0146 | 4931329171 | 5.40 | 6.53 | |
| SUPPORT | ||||
| 0148 | 4931329122 | 4.49 | 5.43 | |
| ELECTRONIC ELEMENT | ||||
| 0150 | 4931369589 | 115.63 | 139.91 | |
| TENSIONING DEVICE | ||||
| 0160 | 4931449451 | 167.90 | 203.16 | |
| SLEEVE | ||||
| 0201 | 4931621981 | 4.49 | 5.43 | |
| DISC N874237 22,5X35X0,3 | ||||
| 0202 | 4931621629 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0204 | 4931624305 | 9.00 | 10.89 | |
| DISC | ||||
| 0205 | 4931622897 | 4.49 | 5.43 | |
| LOCKING RING | ||||
| 0206 | 4931334400 | 4.49 | 5.43 | |
| LOCKING BOLT | ||||
| 0207 | 4931329107 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0208 | 4931329173 | 4.49 | 5.43 | |
| O-RING | ||||
| 0209 | 4931622764 | 1.80 | 2.18 | |
| SCREW D 7500 M 3X12 | ||||
| 0210 | 4931624147 | 1.80 | 2.18 | |
| NUT | ||||
| 0240 | 4931329494 | 5.40 | 6.53 | |
| GASKET | ||||
| 0242 | 4931329150 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0400 | 4931378799 | 52.27 | 63.25 | |
| DRIVE GEAR | ||||
| 0410 | 4931362581 | 237.60 | 287.50 | |
| Opspansleutel, recht | ||||
| 0601 | 4932367712 | 8.16 | 9.87 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0701 | 4932334704 | |||
| Zijhandgreep tbv slijpmachines 180 - 230 mm | ||||
| 0703 | 4931433531 | 11.40 | 13.79 | |
| Stofbeschermrooster tegen binnendringen van deeltj | ||||
| 0704 | 4932326525 | 9.93 | 12.02 | |
| Spanflens | ||||
| 0707 | 4932449324 | 8.28 | 10.02 | |
| T-sleutel | ||||
| 0708 | 4931362928 | 5.00 | 6.05 | |
| Afzuigslangadapter | ||||
| 0710 | 4932362778 | 30.14 | 36.47 | |
| NOSEPIECE | ||||
| 0720 | 4931419658 | 17.42 | 21.08 | |
| SUCTION CAP | ||||
| 0801 | 4931362535 | 152.06 | 183.99 | |
| SUCTION CAP | ||||
| 0802 | 4931362536 | 109.30 | 132.25 | |
| ASSEMBLING HOLDER | ||||
| 0805 | 4931362544 | 55.44 | 67.08 | |
| SLIDE | ||||
| 0806 | 4931362548 | 69.70 | 84.34 | |
| PUSH SLIDE | ||||
| 0807 | 4931362973 | 38.02 | 46.00 | |
| SET SCREW | ||||
| 0808 | 4931362597 | 15.84 | 19.17 | |
| SCREW | ||||
| 0809 | 4931606842 | 1.80 | 2.18 | |
| SCREW D 912 M 5X10 | ||||
| 0810 | 4931614786 | 1.80 | 2.18 | |
| SPRING WASHER | ||||
| 0812 | 4931623799 | 1.80 | 2.18 | |
| HOLDING DISC | ||||
| 0813 | 4931362549 | 10.37 | 12.55 | |
| SCREW D 912 M 5X10 | ||||
| 0814 | 4931614786 | 1.80 | 2.18 | |
| HOSE COUPLING | ||||
| 0815 | 4931362598 | 7.20 | 8.71 | |
| HANDLE | ||||
| 0816 | 4931334713 | 12.60 | 15.25 | |
| SCREW | ||||
| 0817 | 4931623754 | 9.00 | 10.89 | |
| SCREW | ||||
| 0818 | 4931623802 | 1.80 | 2.18 | |
| SCREW | ||||
| 0819 | 4931622928 | 1.80 | 2.18 | |
| SIDE SPRING | ||||
| 0820 | 4931362937 | 15.55 | 18.82 | |
| SUPPORT ROLL | ||||
| 0821 | 4931362616 | 36.43 | 44.08 | |
| ISOLATION SLAFE | ||||
| 0822 | 4931362599 | 30.10 | 36.42 | |
| NAME PLATE | ||||
| 0826 | 4931383017 | 1.80 | 2.18 | |
| DATA PLATE | ||||
| 0827 | 4931334659 | 4.49 | 5.43 | |
| DATA PLATE | ||||
| 0828 | 4931334660 | 4.49 | 5.43 | |
| WASHER | ||||
| 0829 | 4931623798 | 1.80 | 2.18 | |
| NUT D 934 M 10 | ||||
| 0830 | 4931617200 | 4.49 | 5.43 | |
